Base Audio With Rear View Camera





BASE AUDIO WITH REAR VIEW CAMERA

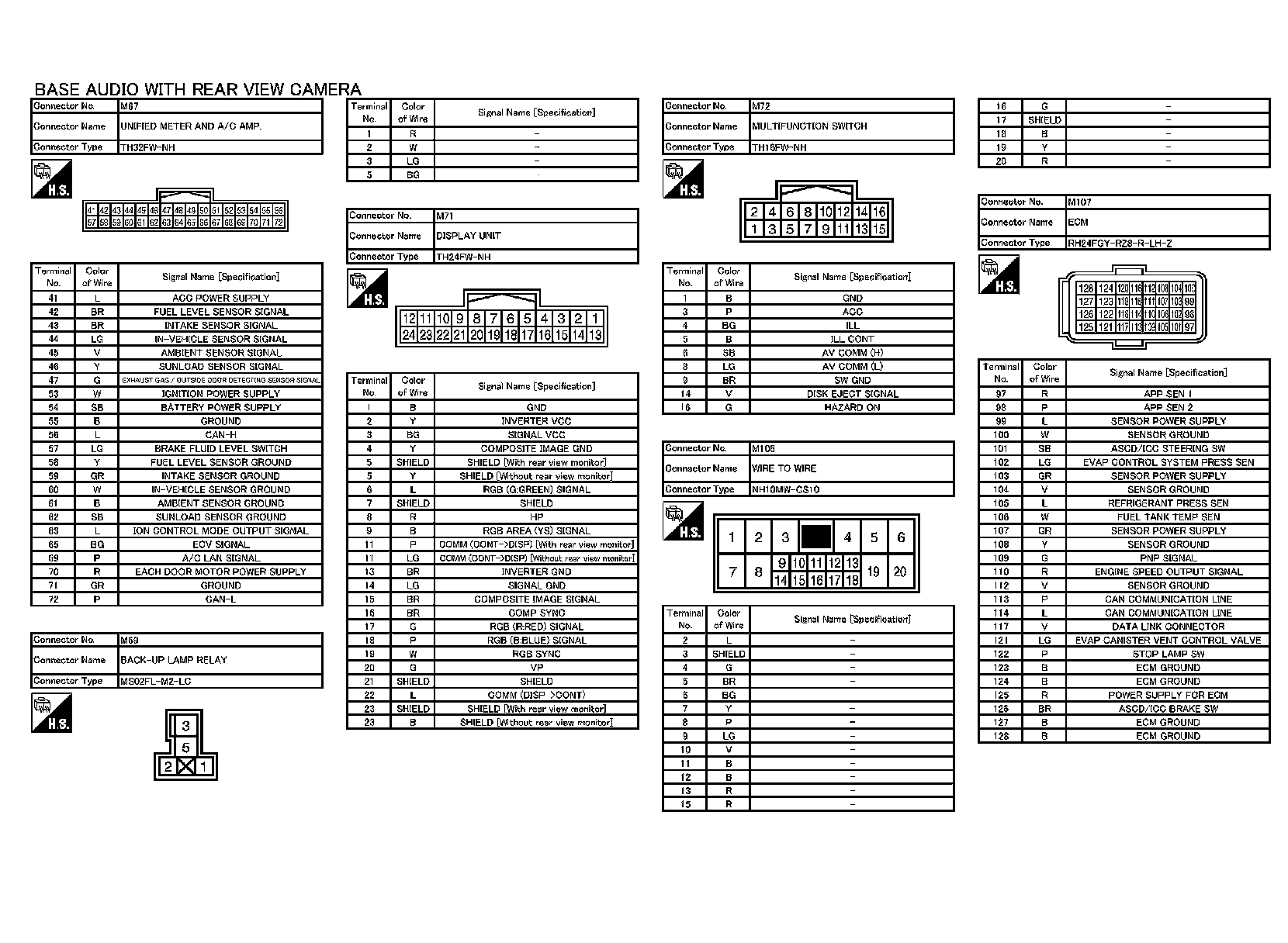

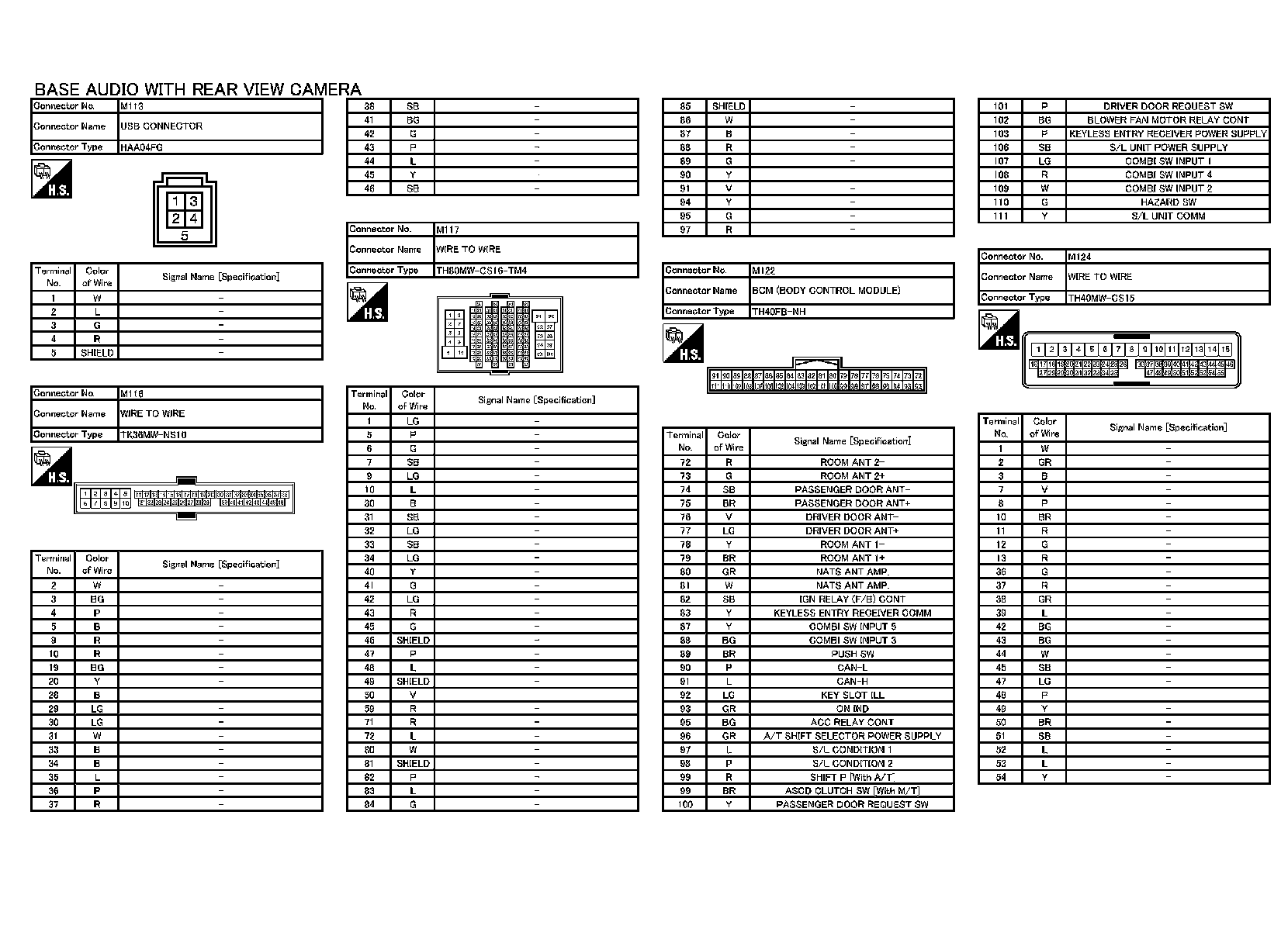

Wiring Diagram


NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
