Passenger Side

SLIDING MOTOR - PASSENGER SIDE





Description
- The seat sliding motor is installed to the seat cushion frame.
- The seat sliding motor is activated with the passenger seat control unit.
- The seat is slid forward/backward by changing the rotation direction of sliding motor.




Component Function Check
1.CHECK SLIDING MOTOR CIRCUIT
Check sliding operation with power seat switch.
Is the inspection result normal?
YES - Sliding motor function is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK SLIDING MOTOR POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect sliding motor connector.

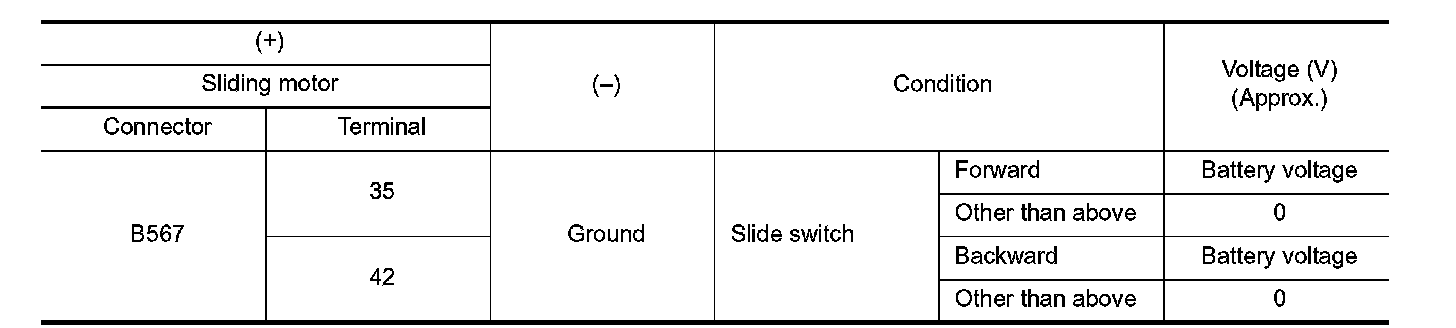

3. Check voltage between sliding motor harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK SLIDING MOTOR CIRCUIT
1. Disconnect passenger seat control unit connector.

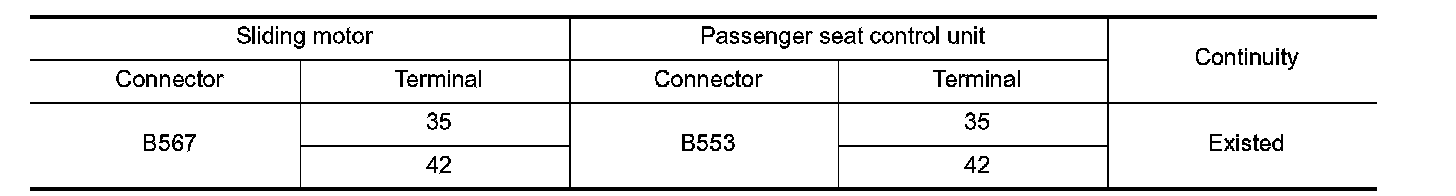

2. Check continuity between sliding motor harness connector and passenger seat control unit harness connector.

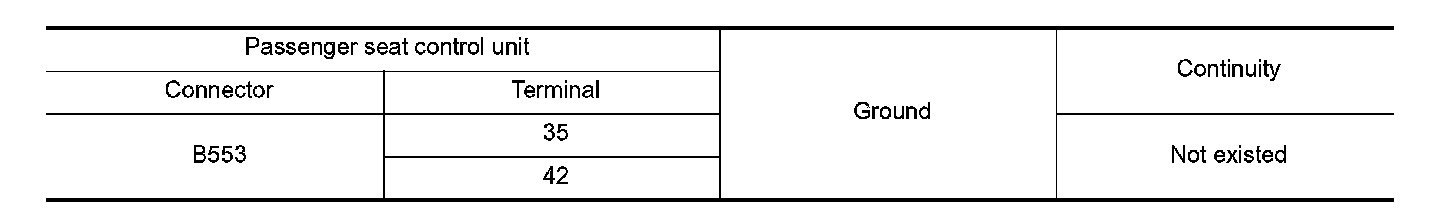

3. Check continuity between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES - Replace passenger seat control unit. Removal And Installation.
NO - Repair or replace harness.
3.CHECK SLIDING MOTOR
Check sliding motor. SEE Component Inspection.
Is the inspection result normal?
YES - GO TO 4.
NO - Replace sliding motor. Exploded View.
4.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Intermittent Incident.
- INSPECTION END




Component Inspection
1.CHECK SLIDING MOTOR-1
Visually check the sliding motor for foreign objects, and check that the sliding motor is not broken.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace seat cushion frame (sliding motor).
2.CHECK SLIDING MOTOR-2
1. Turn ignition switch OFF.
2. Disconnect sliding motor connector.

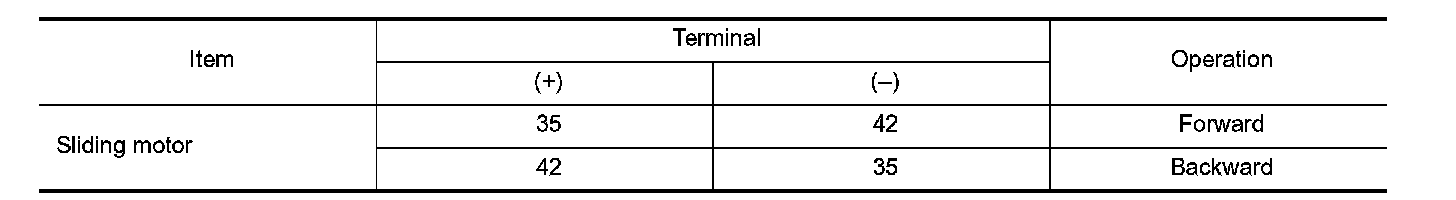

3. Supply sliding motor terminals with battery voltage and check operation.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace sliding motor. Exploded View.
