Removal and Installation

REAR SEAT


Removal and Installation


REMOVAL

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
1. Remove the seat cushion.

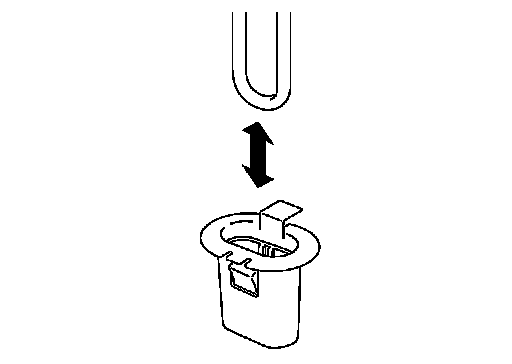

- Pull the seat cushion up, and then remove the seat cushion from the seat cushion hook.
- Remove the seat cushion from the vehicle.
2. Remove the seatback.
- Remove the seatback control cable. Removal And Installation.
- Remove the seatback mounting bolt.
- Remove the seatback frame the vehicle.
3. Remove the seatback side bracket.
- Remove the seatback side bracket mounting nuts.
- Remove the seatback side bracket from the vehicle.
4. Remove the seat striker.
- Remove the seat striker cover.
- Remove the seat striker mounting bolt.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
