Door Mirror Motor

DOOR MIRROR MOTOR





Description
It makes mirror face operate from side to side and up and down with the electric power that automatic drive positioner control unit supplies.




Component Function Check
1.CHECK DOOR MIRROR MOTOR FUNCTION
1. Turn ignition switch ON.

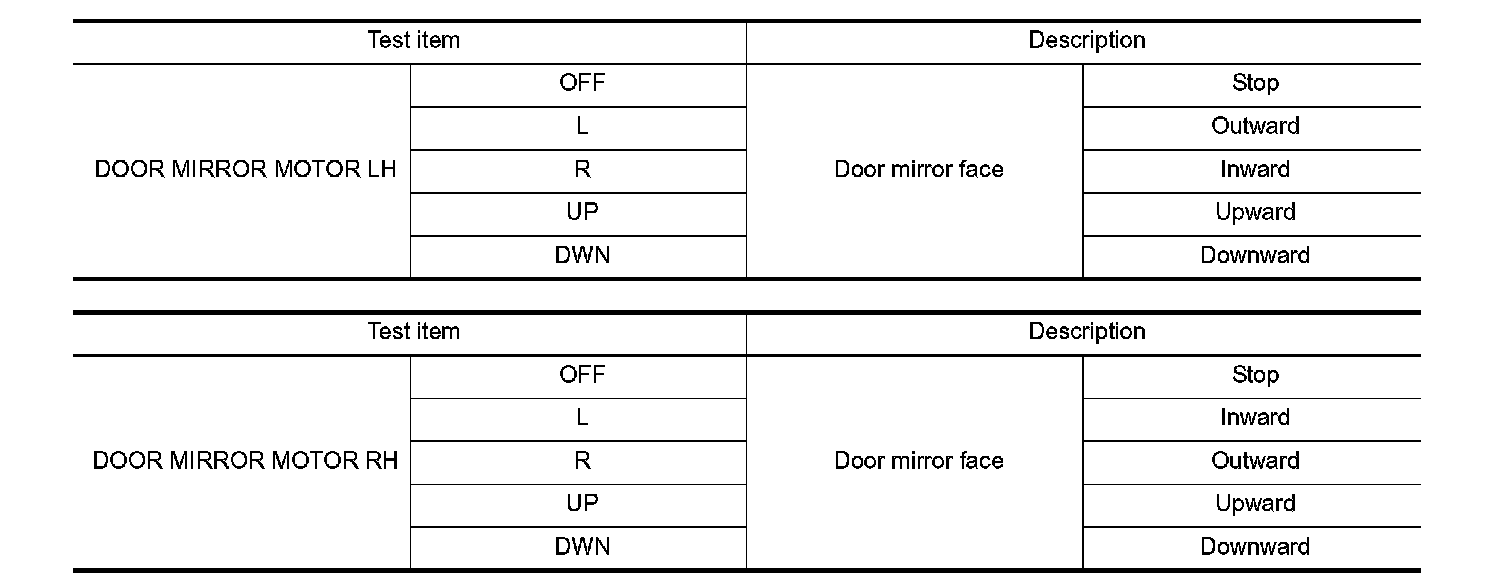

2. Select "DOOR MIRROR MOTOR LH" and "DOOR MIRROR MOTOR RH" in "Active test" mode using
CONSULT-III.
3. Check the door mirror motor operation.





Is the operation of relevant parts normal?
YES - INSPECTION END
NO - Perform diagnosis procedure. SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK DOOR MIRROR MOTOR INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect door mirror connector.
3. Turn ignition switch ON.

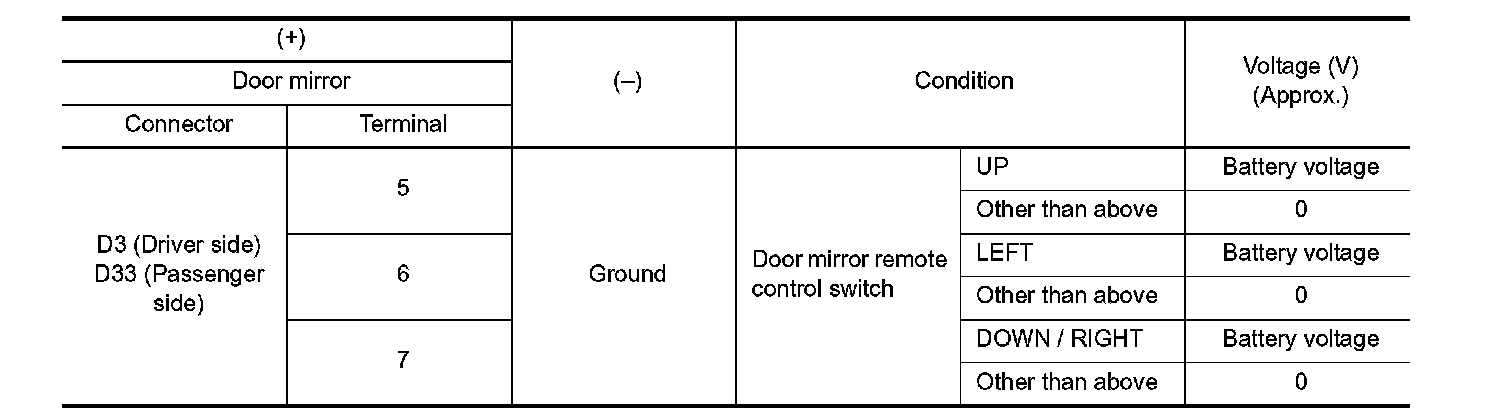

4. Check voltage between door mirror connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector.

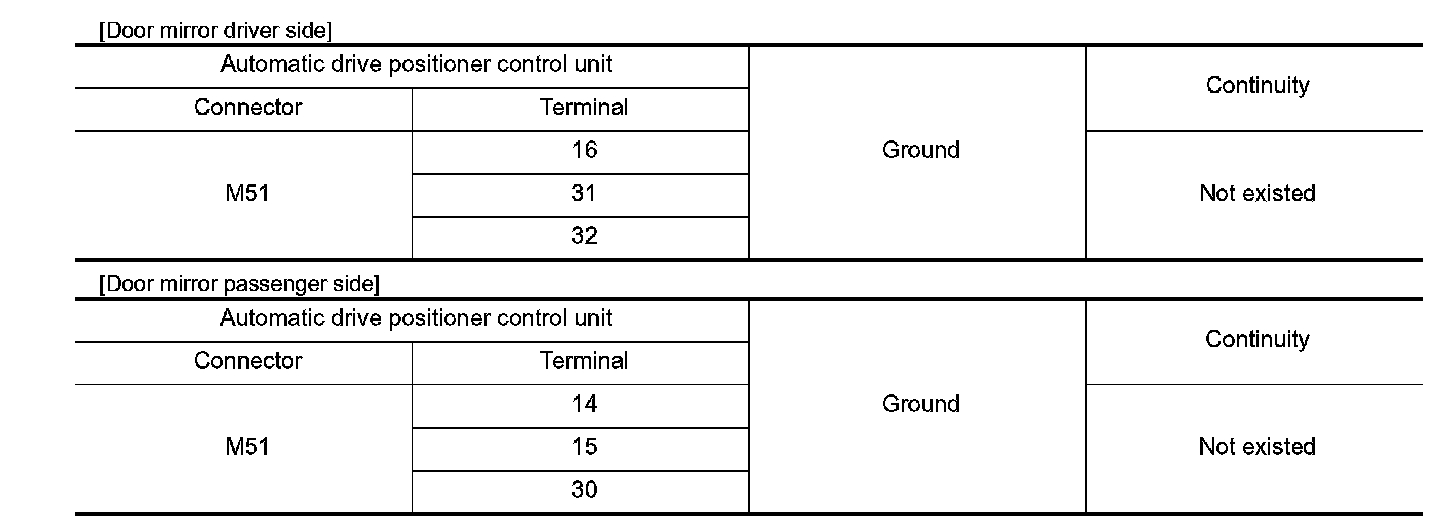

3. Check continuity between automatic drive positioner control unit connector and door mirror connector.





4. Check continuity between automatic drive positioner control unit connector and ground.





Is the inspection result normal?
YES - Replace automatic drive positioner control unit. Removal And Installation.
NO - Repair or replace harness.
3.CHECK DOOR MIRROR MOTOR
Check door mirror motor. SEE Component Inspection.
Is the inspection result normal?
YES - GO TO 4.
NO - Replace door mirror. Removal And Installation.
4.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END




Component Inspection
1.CHECK DOOR MIRROR MOTOR-I
Check that door mirror motor does not trap foreign objects and does not have any damage. Exploded View.
Is the inspection result normal?
YES - GO TO 2.
NO - Replace door mirror. Removal And Installation.
2.CHECK DOOR MIRROR MOTOR-II
1. Turn ignition switch OFF.
2. Disconnect door mirror connector.

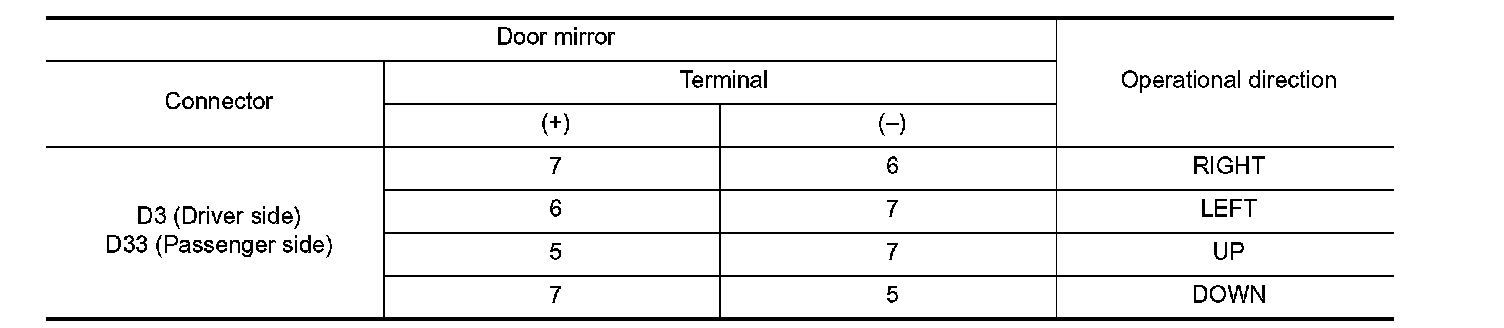

3. Apply 12V to each power supply terminal of door mirror motor.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace door mirror. Removal And Installation.
