Heated Seat Control Unit
>>
With M/T
With M/T
HEATED SEAT CONTROL UNIT

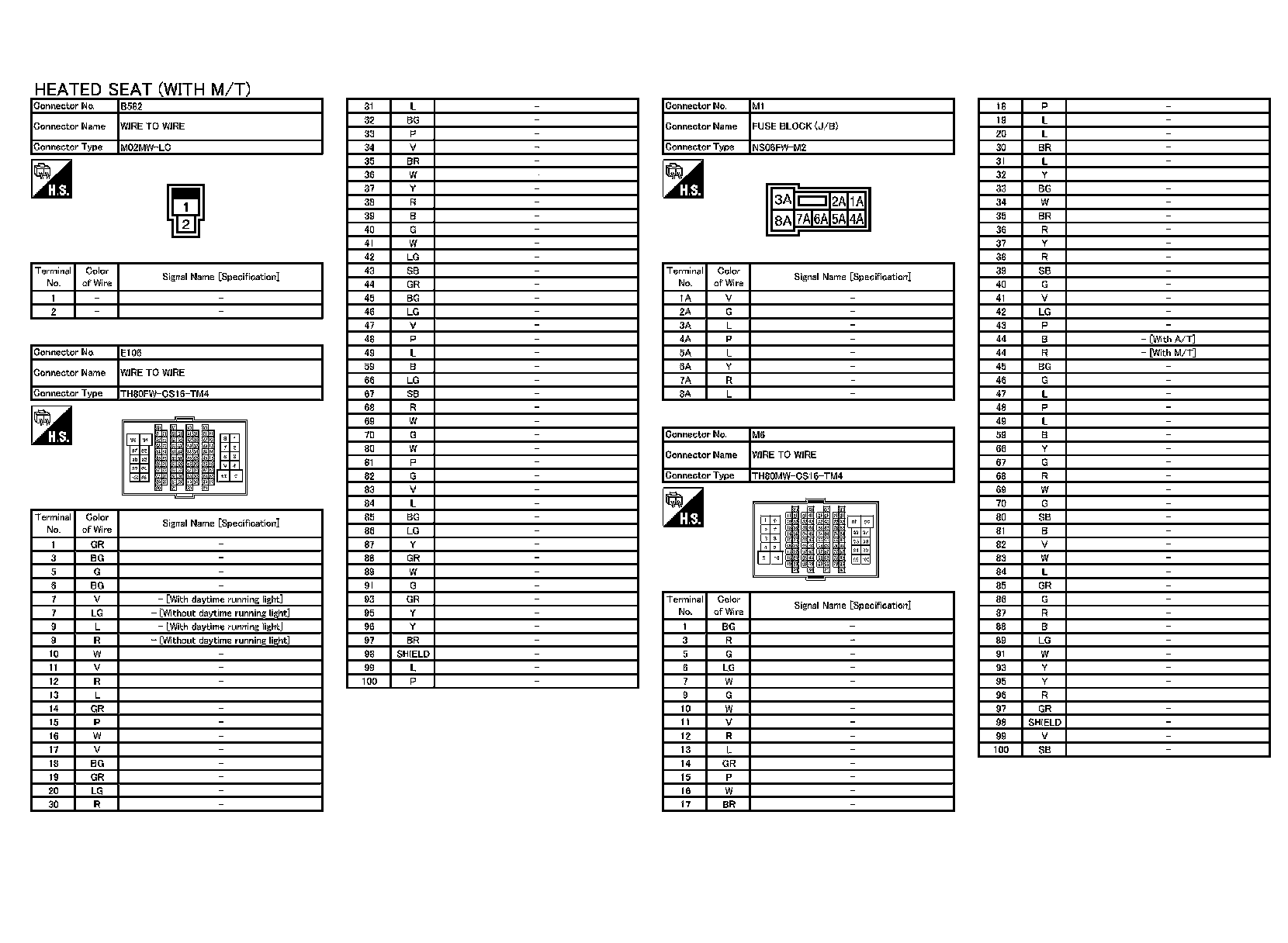

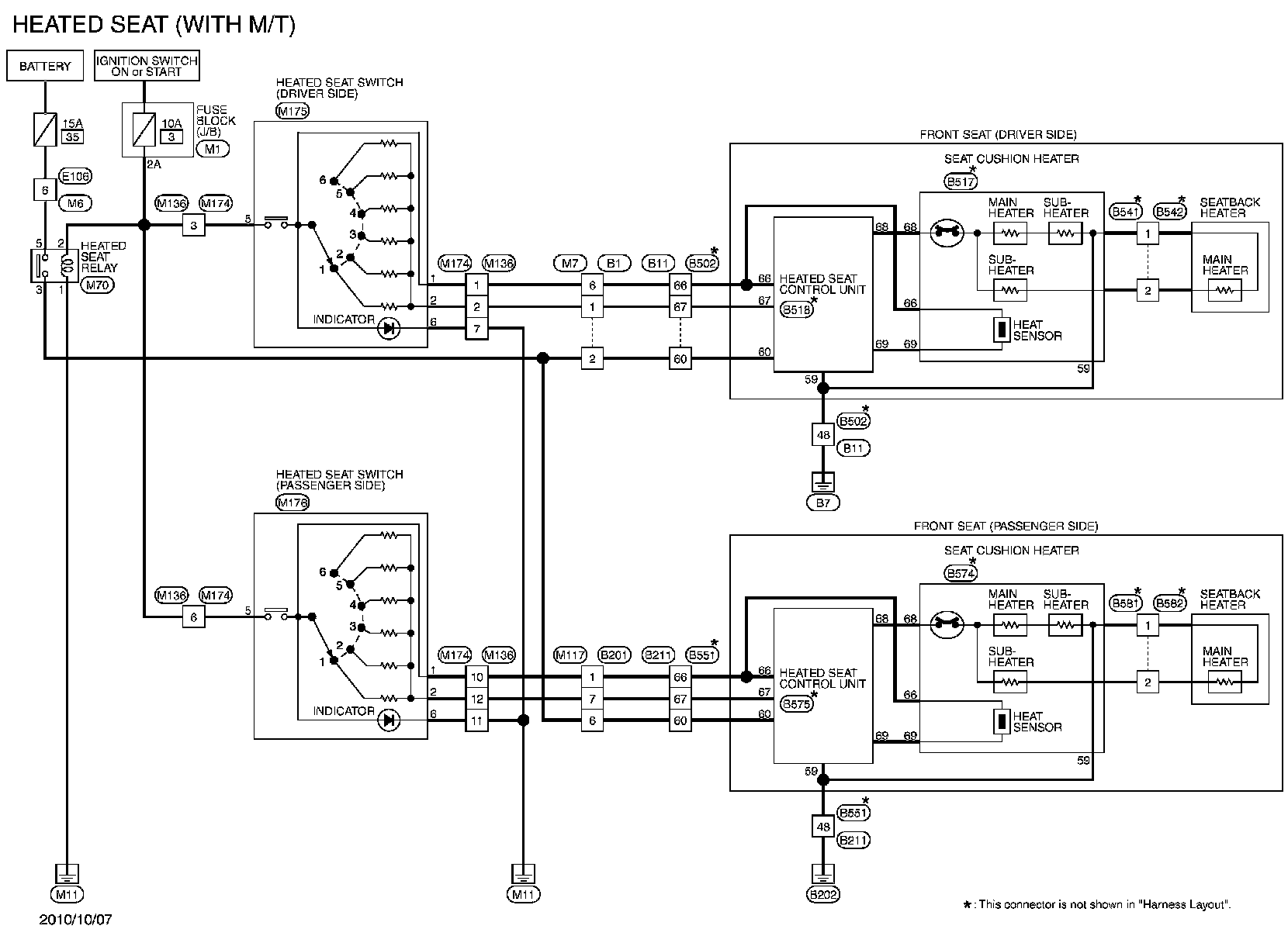

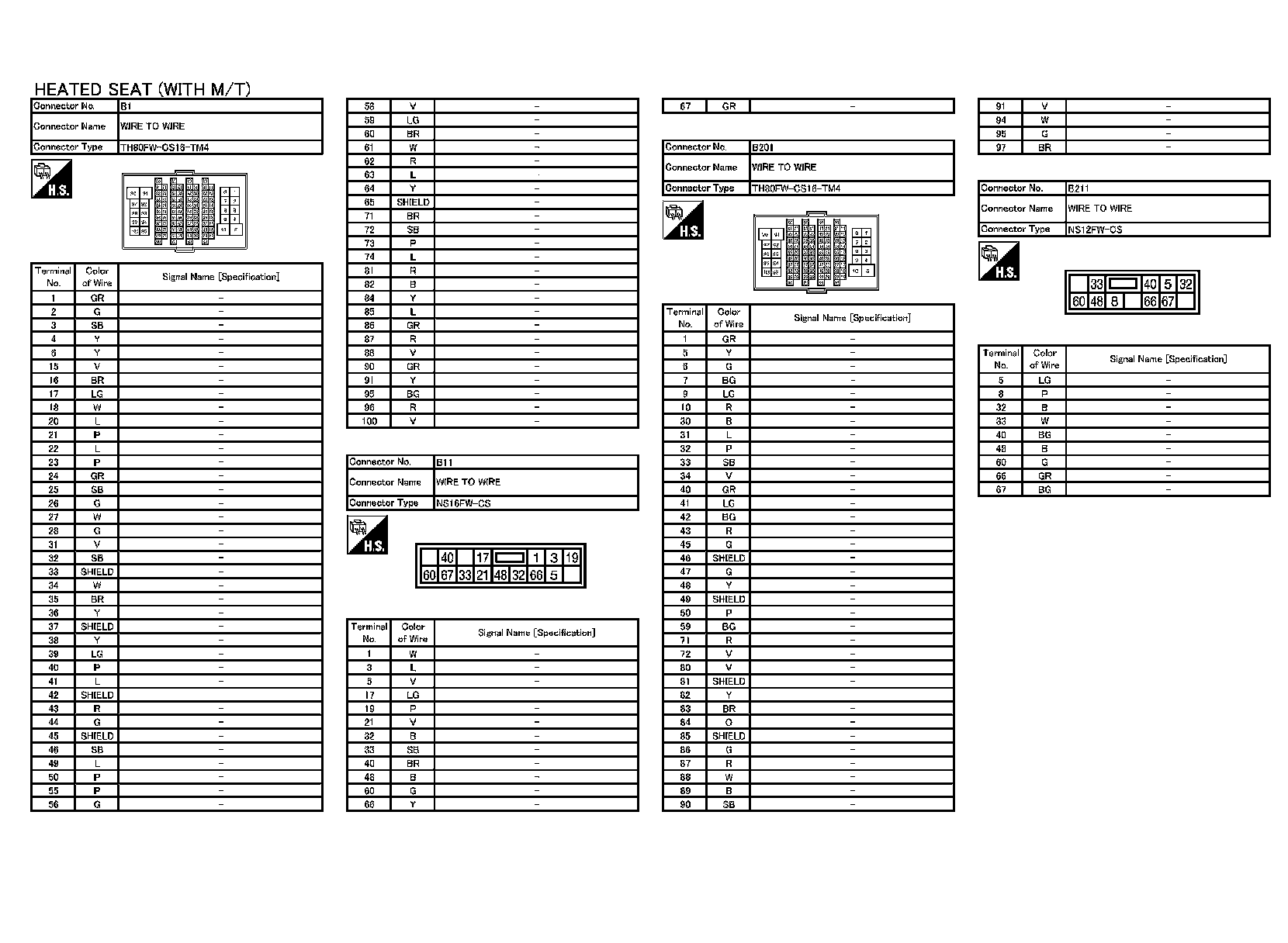

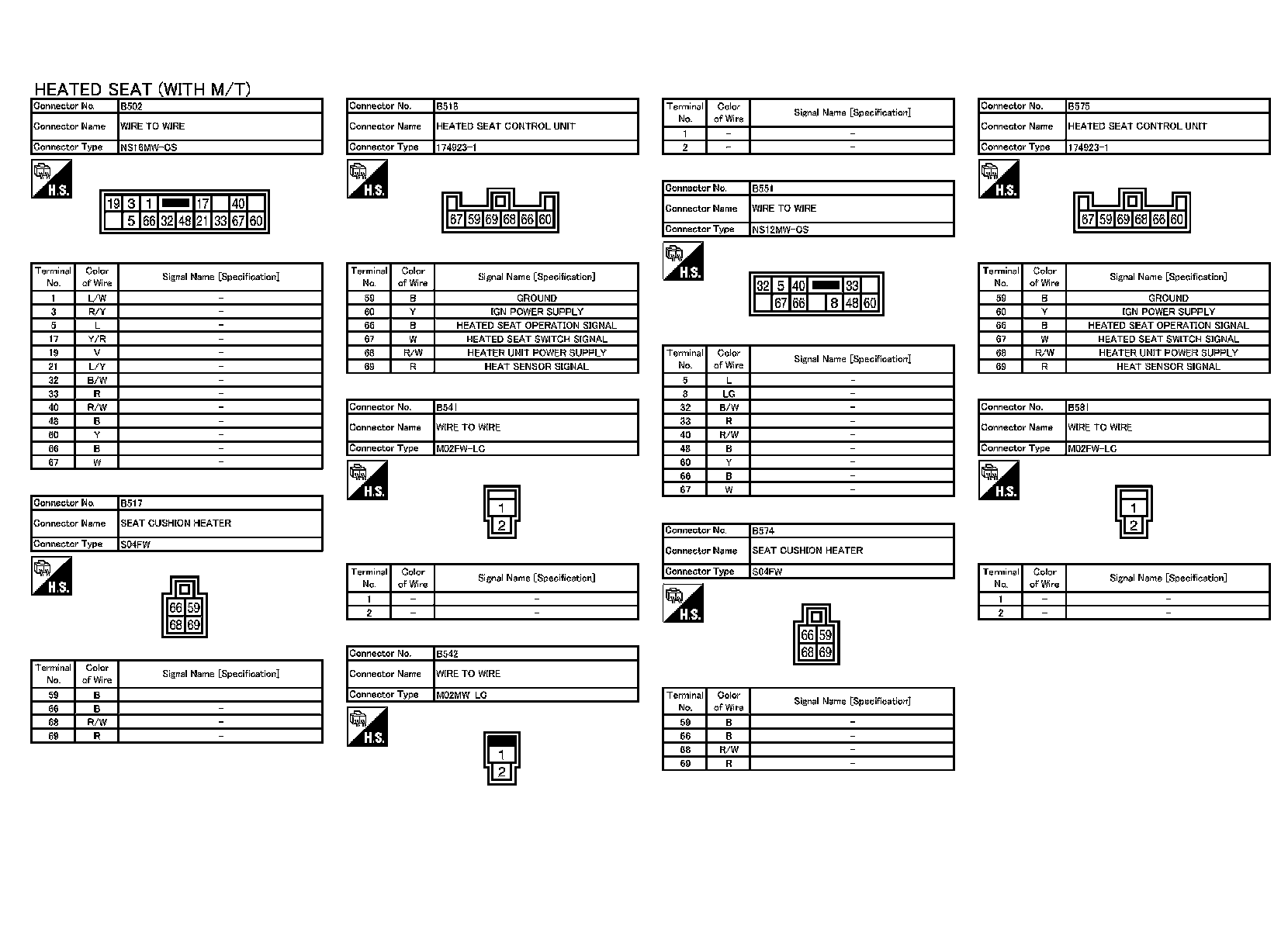

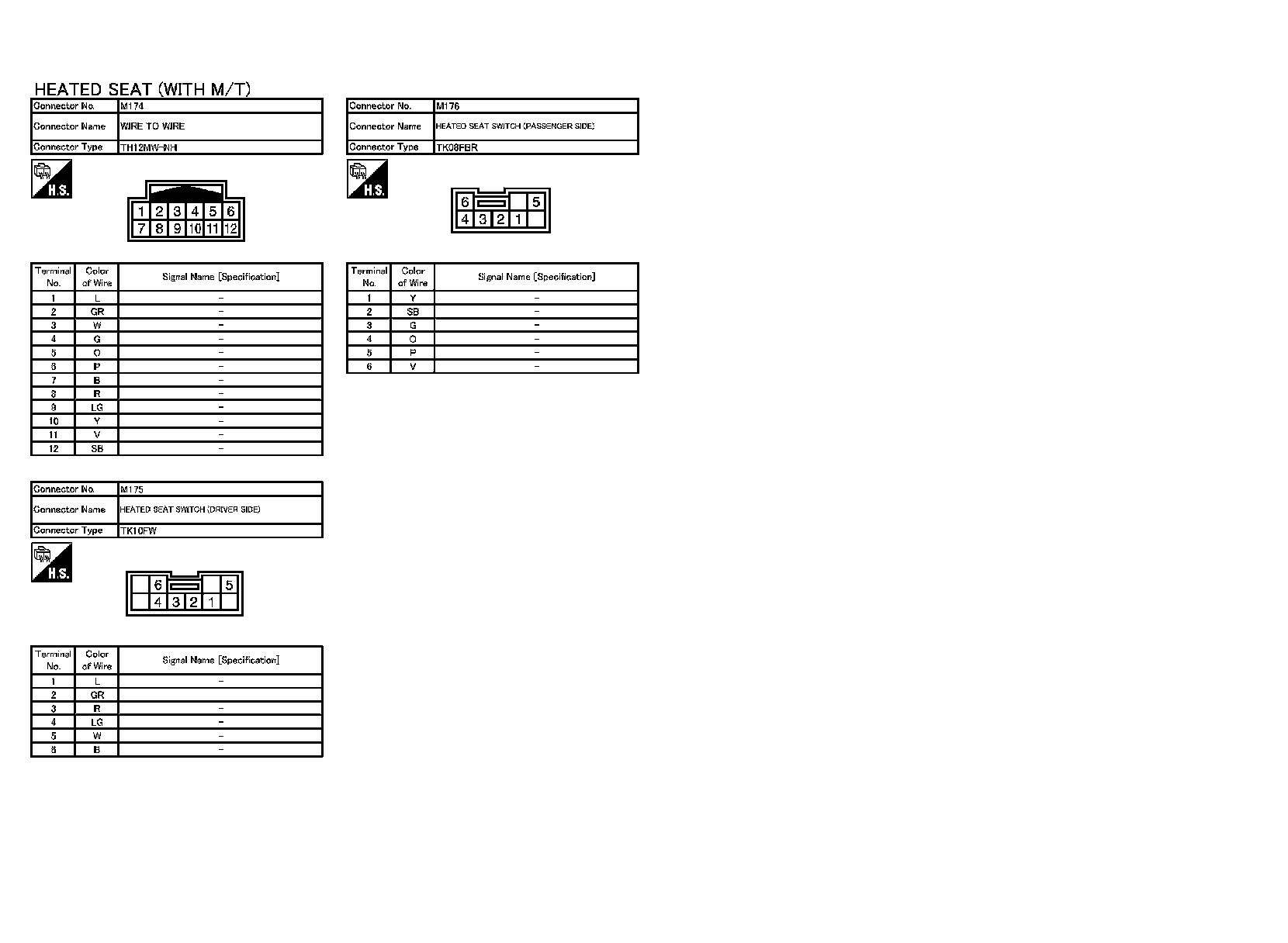

Wiring Diagram - HEATED SEAT SYSTEM (WITH M/T) -
