Sunroof Motor Assembly





SUNROOF SYSTEM


SUNROOF MOTOR ASSEMBLY : Reference Value

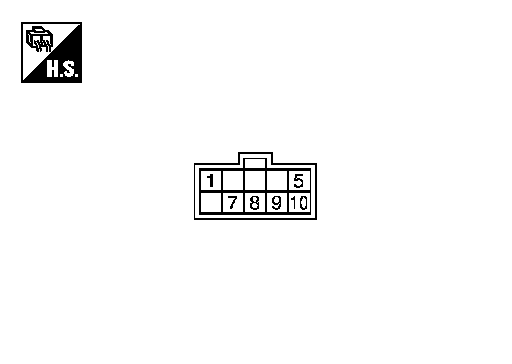

TERMINAL LAYOUT

PHYSICAL VALUES
