Key Warning Lamp

KEY WARNING LAMP





Description
Performs operation method guide and warning together with buzzer.




Component Function Check
1.CHECK FUNCTION

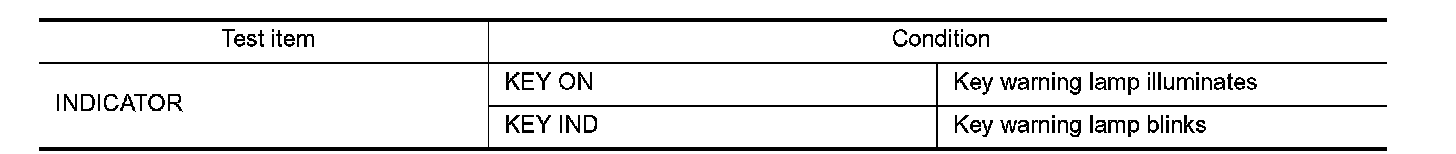

Check the operation with "INDICATOR" in "Active Test" mode using CONSULT-III.





Is the inspection result normal?
YES - Key warning lamp in combination meter is normal.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK KEY WARNING LAMP
Key Warning Lamp.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace harness.
2.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
