Key Slot

KEY SLOT





Description
When the Intelligent Key battery is discharged, it performs the NVIS (NATS) ID verification between the integrated transponder and BCM by inserting the Intelligent Key into the key slot, and then the engine can be started.




Component Function Check
1.CHECK FUNCTION
1. Remove Intelligent Key battery from Intelligent Key.
2. Change power supply position when Intelligent Key insert into key slot and then press push-button ignition switch.
Is the inspection result normal?
YES - Key slot function is normal.
NO - Go to SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK KEY SLOT POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect key slot connector.

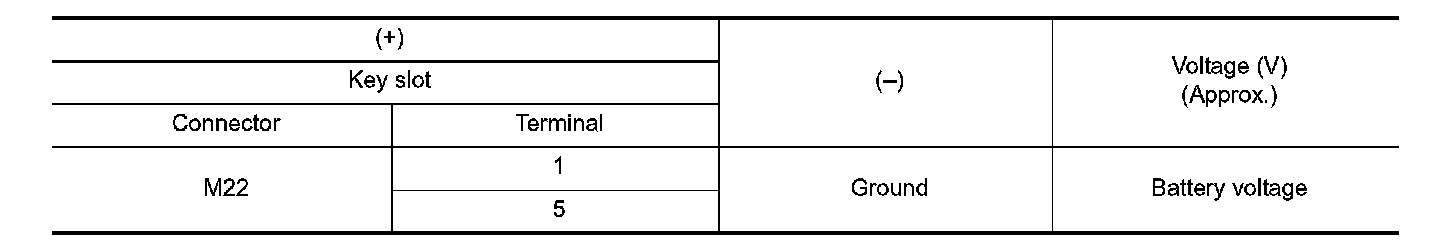

3. Check voltage between key slot harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO-1 - Check 10 A fuse [No. 6 and 9 located in the fuse block (J/B)].
NO-2 - Check harness for open or short between key slot and fuse.
2.CHECK KEY SLOT GROUND CIRCUIT

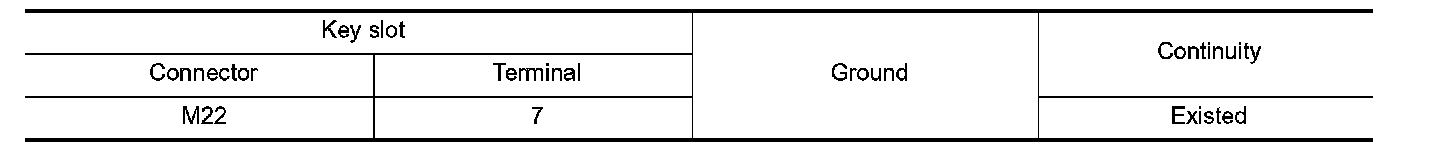

Check continuity between key slot harness connector and ground.





Is the inspection result normal?
YES - Replace key slot. Removal And Installation.
NO - Repair or replace harness.
