Exploded View Base Audio With Rear View Camera
Exploded View Base Audio With Rear View Camera

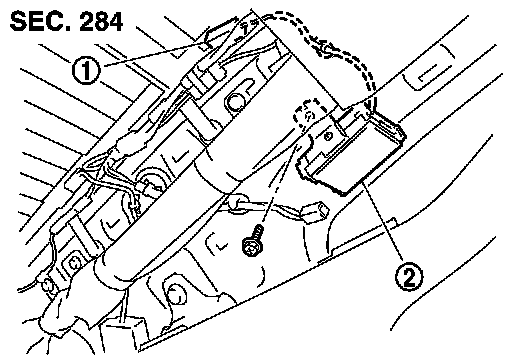

ANTENNA AMP.
Exploded View
1. AM-FM main connector
2. Antenna amp.
