C1924

C1924 STEERING ANGLE SEN





Description
Steering angle sensor signal is transmitted from steering angle sensor to 4WAS main control unit via CAN communication.




DTC Logic

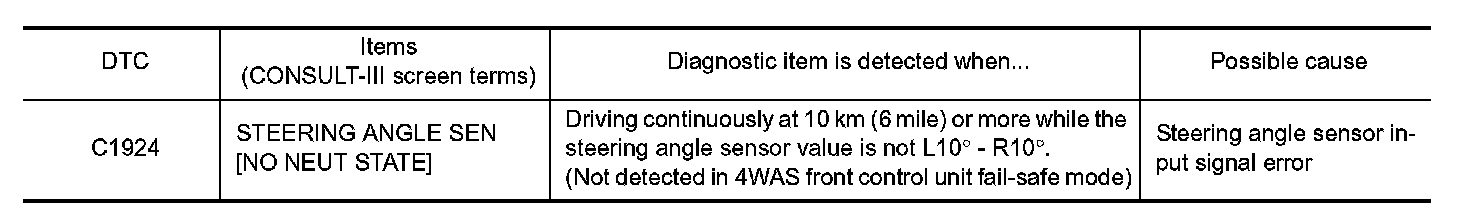

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.RECHECK DTC
With CONSULT-III
1. Drive continuously for 10 km (6 mile) or more.
2. Perform 4WAS main control unit self-diagnosis.
Is DTC "C1924" detected?
YES - Proceed to diagnosis procedure. SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK DRIVING
Drive for a short time.
Does the vehicle drive with front wheels in the straight-ahead position?
YES - GO TO 2.
NO - Adjust the wheel alignment. Front Suspension.
2.PERFORM SELF-DIAGNOSIS OF ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
With CONSULT-III
Perform ABS actuator and electric unit (control unit) self-diagnosis.
Is malfunction detected?
YES - Check malfunctioning circuit.
NO - GO TO 3.
3.PERFORM SELF-DIAGNOSIS (4WAS MAIN CONTROL UNIT)
With CONSULT-III
Perform 4WAS main control unit self-diagnosis.
Is DTC "U1000" or "U1010" detected?
YES - Check malfunctioning circuit.
NO - GO TO 4.
4.PERFORM SELF-DIAGNOSIS (4WAS MAIN CONTROL UNIT)
With CONSULT-III
Perform 4WAS main control unit self-diagnosis.
Is DTC "C1924" detected?
YES - Replace 4WAS main control unit. Exploded View.
NO - GO TO 5.
5.CHECK INFORMATION
With CONSULT-III
Check the "DATA MONITOR" value of each DTC detected with the self-diagnosis function. With 4WAS, "Reference Value".
Is each data standard?
YES - Check pin terminal and connection of each harness connector for non-standard conditions.
NO - Replace 4WAS main control unit. Exploded View.




Special Repair Requirement

BEFORE REPLACING 4WAS MAIN CONTROL UNIT
- Record the self-diagnosis results (history).

CAUTION:
- Never erase the memory (history) of self-diagnosis results when replacing 4WAS main control unit after diagnosis.
- Erase the memory of the self-diagnosis results (record) after printing out or recording all the values of "DATA MONITOR".

AFTER REPLACING STEERING ANGLE SENSOR
1.PERFORM ACTIVE TEST (LOCK OPERATION)
With CONSULT-III
1. Stop vehicle with front wheels in the straight-ahead position.
2. Turn the ignition switch ON.

CAUTION:
Never start engine.
3. Select "LOCK OPERATION" item on "ACTIVE" of 4WAS front control unit.
4. Perform "RELEASE" of "ACTIVE TEST".

CAUTION:
- Turn steering wheel 90�, and then check that front tire does not move.
- Never turn steering wheel 1 turn or more while performing "RELEASE".
5. Place steering wheel in neutral position.
6. Perform "LOCK" item on "ACTIVE TEST" of 4WAS front control unit.
7. Steer 30� leftward slowly. Steer 30� rightward and return the steering wheel to the straight-ahead position.
8. Complete active test of 4WAS front control unit.
- GO TO 2.
2.STEERING ANGLE SENSOR NEUTRAL POSITION ADJUSTMENT
With CONSULT-III
1. Adjust steering angle sensor neutral position. Description Special Repair Requirement Description Special Repair Requirement, "ADJUSTMENT OF STEERING ANGLE
SENSOR NEUTRAL POSITION : Special Repair Requirement".
2. Turn the ignition switch OFF.
- GO TO 3.
3.RETURN TO 4WAS FRONT ACTUATOR INITIAL POSITION
1. Start engine.

CAUTION:
Check condition with the vehicle stopped.
2. Turn steering wheel to the left by 90� slowly, and then turn to the right by 90�.
3. Again, turn steering wheel to the left by 90� slowly, and then turn to the right by 90� so that it faces straight ahead.
4. Stop vehicle with front wheels in the straight-ahead position after driving vehicle for a short time. (Engine starting)
- GO TO 4.
4.CHECK 4WAS FRONT ACTUATOR
With CONSULT-III
1. Check "4WAS STR ANG" item on "DATA MONITOR" of 4WAS front control unit.

CAUTION:
Never touch steering wheel while performing.

4WAS STR ANG : -3.5 - 3.5°

2. Turn the ignition switch OFF.
Is the inspection result normal?
YES - GO TO 5.
NO - GO TO 1.
5.PERFORM ACTIVE TEST (SLOW MODE)
With CONSULT-III
1. Start engine.

CAUTION:
Check condition with the vehicle stopped.
2. Select "SLOW MODE" item on "ACTIVE TEST" of 4WAS front control unit.
3. Perform "MODE START" of "ACTIVE TEST".
4. Turn steering wheel to the left slowly until it stops.
5. Turn steering wheel to the right slowly until it stops.
Does "OK" display on both the left and right sides on "SLOW MODE" items of the monitor?
YES - GO TO 6.
NO - Special Repair Requirement (Pattern 4).
6.PERFORM SELF-DIAGNOSIS (4WAS FRONT CONTROL UNIT)
With CONSULT-III
Perform 4WAS front control unit self-diagnosis.
Is malfunction detected?
YES - Check malfunctioning circuit.
NO - GO TO 7.
7.ERASE ERROR RECORD
With CONSULT-III
Erase memories of self-diagnosis results for 4WAS front control unit and 4WAS main control unit.
- END
