C1203

C1203 ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)





Description
Transmits the following signals via CAN communication to AWD control unit.
- Vehicle speed signal
- Stop lamp switch signal (brake signal)




DTC Logic

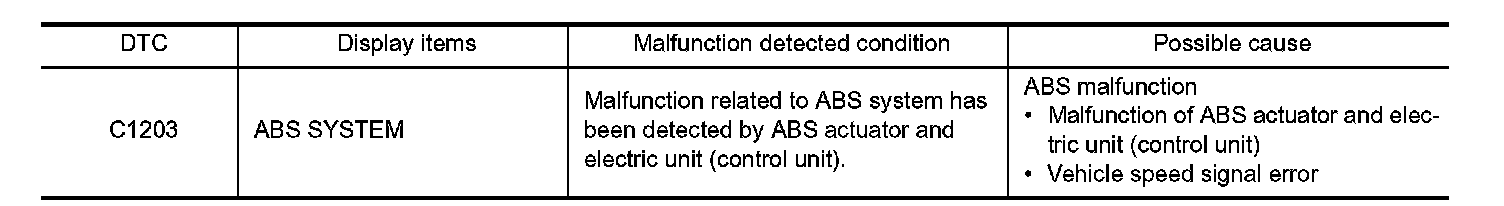

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.DTC REPRODUCTION PROCEDURE
With CONSULT-III
1. Start the engine and drive at 30 km/h (19 MPH) or more for approximately 1 minute.
2. Perform self-diagnosis for "ALL MODE AWD/4WD".
Is DTC "C1203" detected?
YES - Proceed to diagnosis procedure. SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.PERFORM ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS
With CONSULT-III
Perform self-diagnosis for "ABS".
Is any DTC detected?
YES - Check the DTC.
NO - GO TO 2.
2.PERFORM SELF-DIAGNOSIS
With CONSULT-III
1. Erase self-diagnostic results for "ALL MODE AWD/4WD".
2. Start the engine and drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute.
3. Make sure that ABS warning lamp turns OFF.
4. Perform self-diagnosis for "ALL MODE AWD/4WD".
Is DTC "C1203" detected?
YES - Replace AWD control unit. Exploded View.
NO - Check AWD control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace error-detected parts.
