Home >> Infiniti >> 2011 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Front Wiper And Washer System Symptoms >> Without Rain Sensor Symptom Table

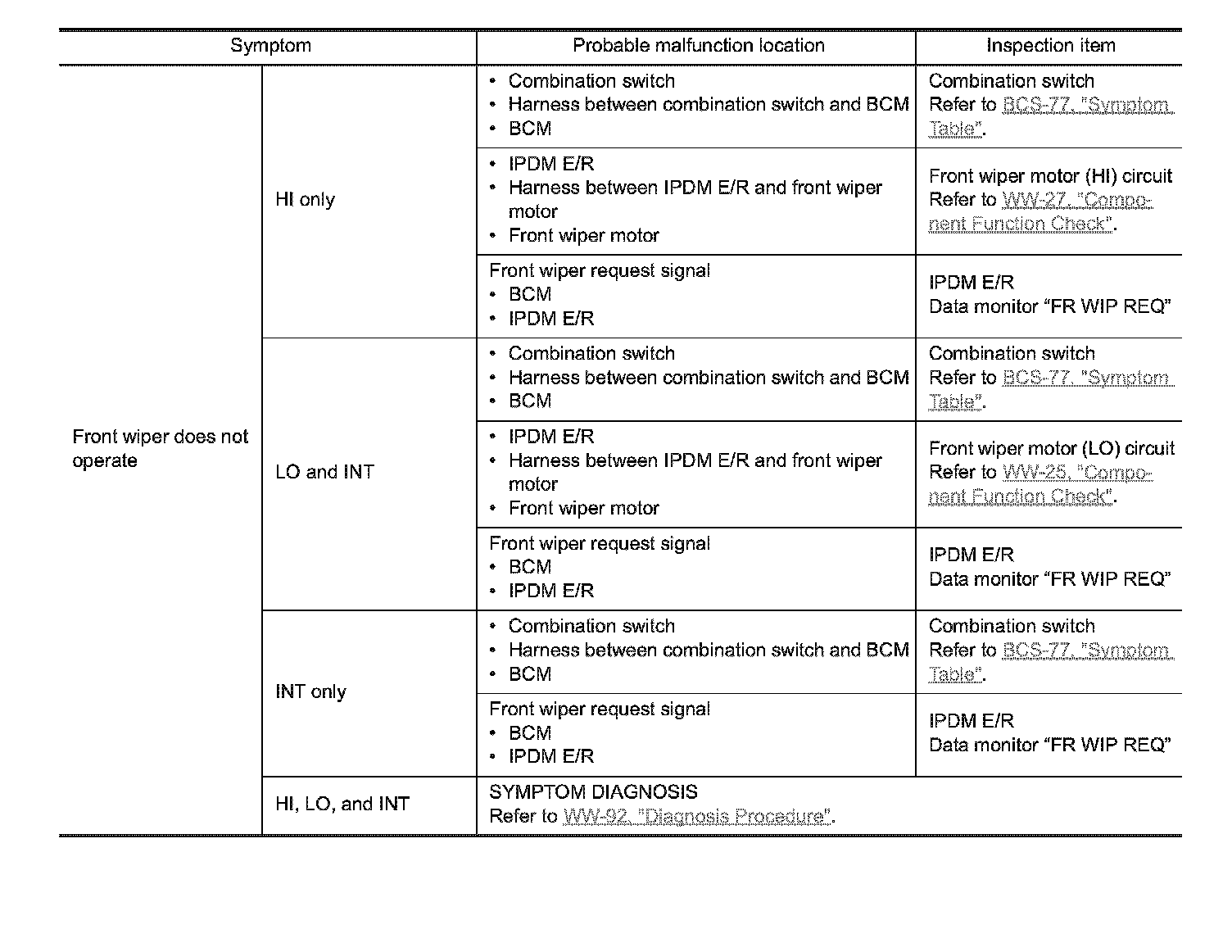

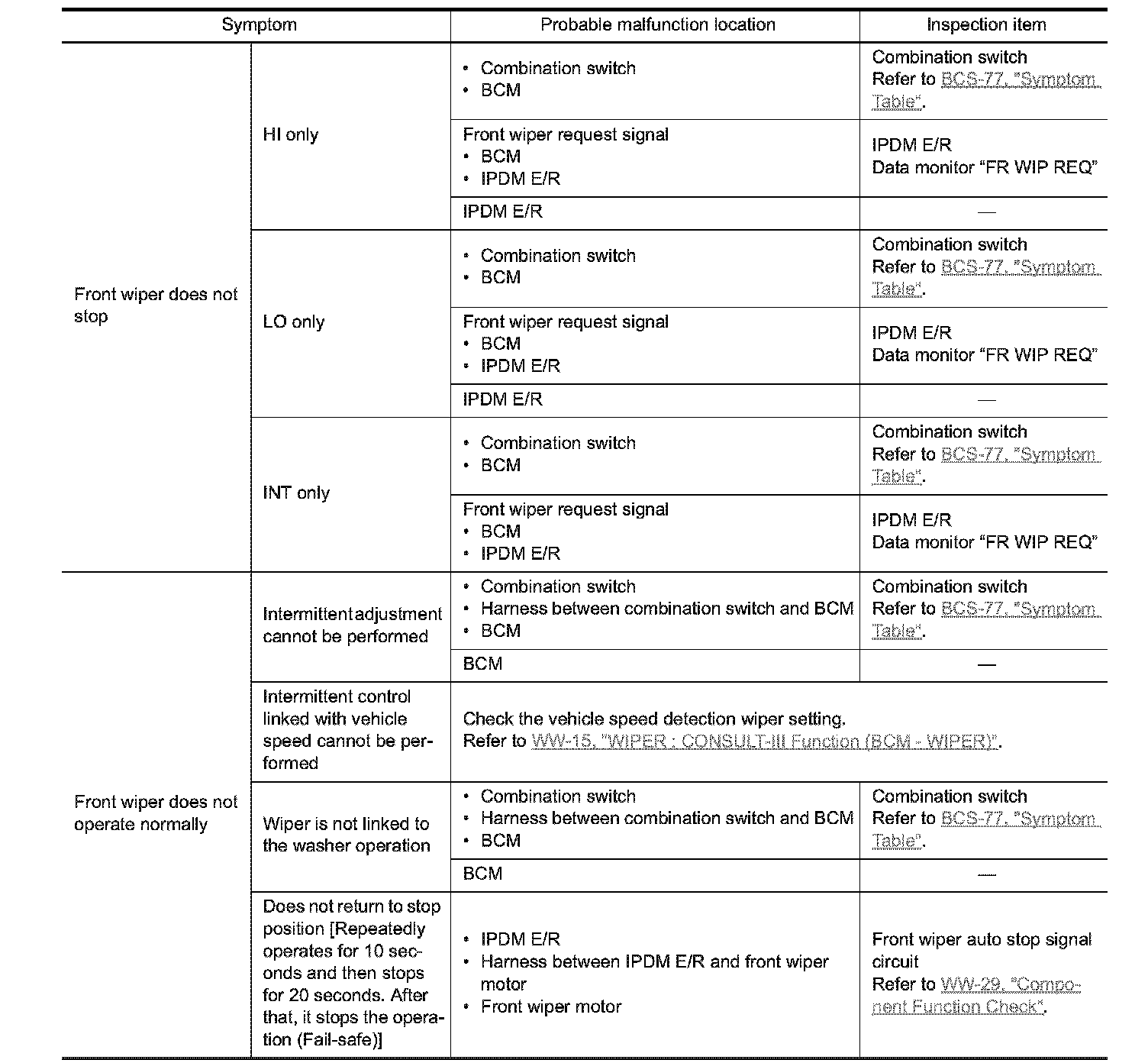

Without Rain Sensor Symptom Table





FRONT WIPER AND WASHER SYSTEM SYMPTOMS


WITHOUT RAIN SENSOR : Symptom Table


CAUTION:
Perform the self-diagnosis with CONSULT-III before performing the diagnosis by symptom. Perform the diagnosis by DTC if DTC is detected.
