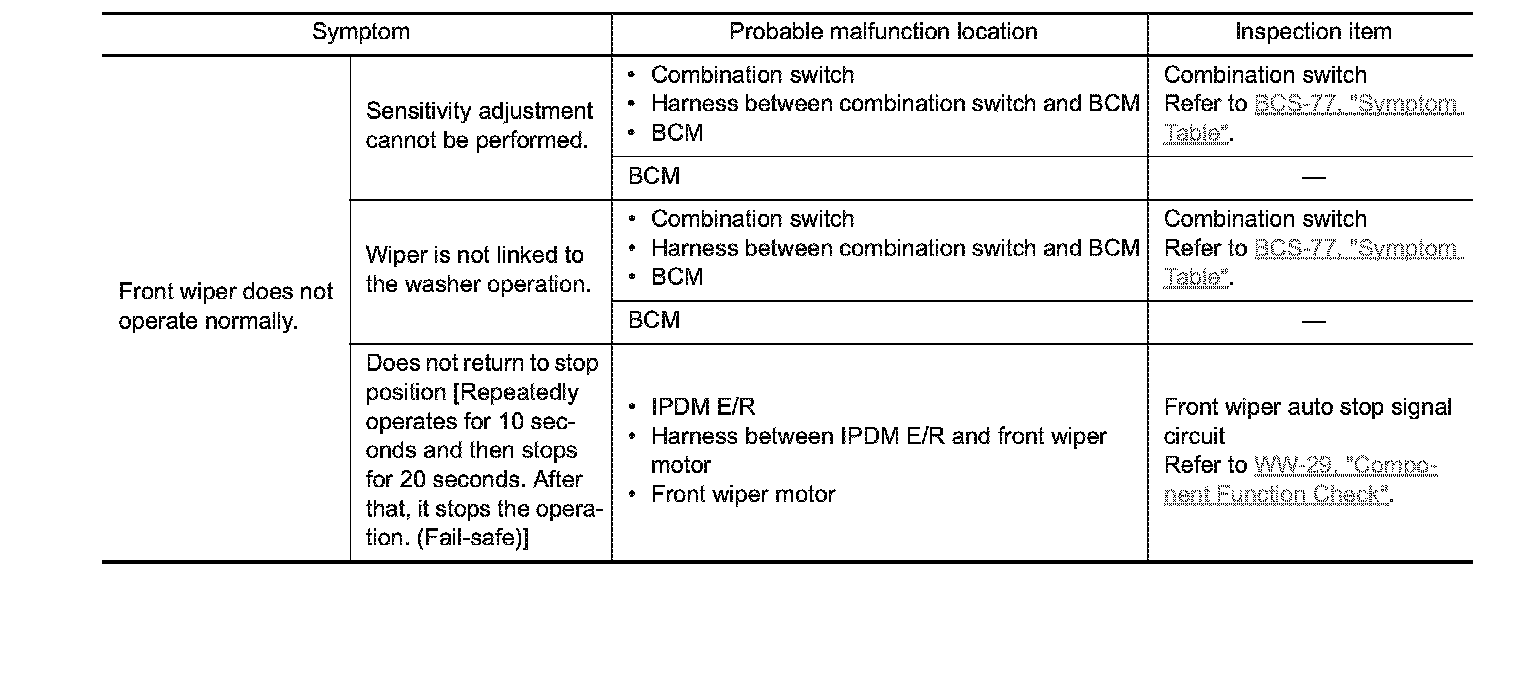

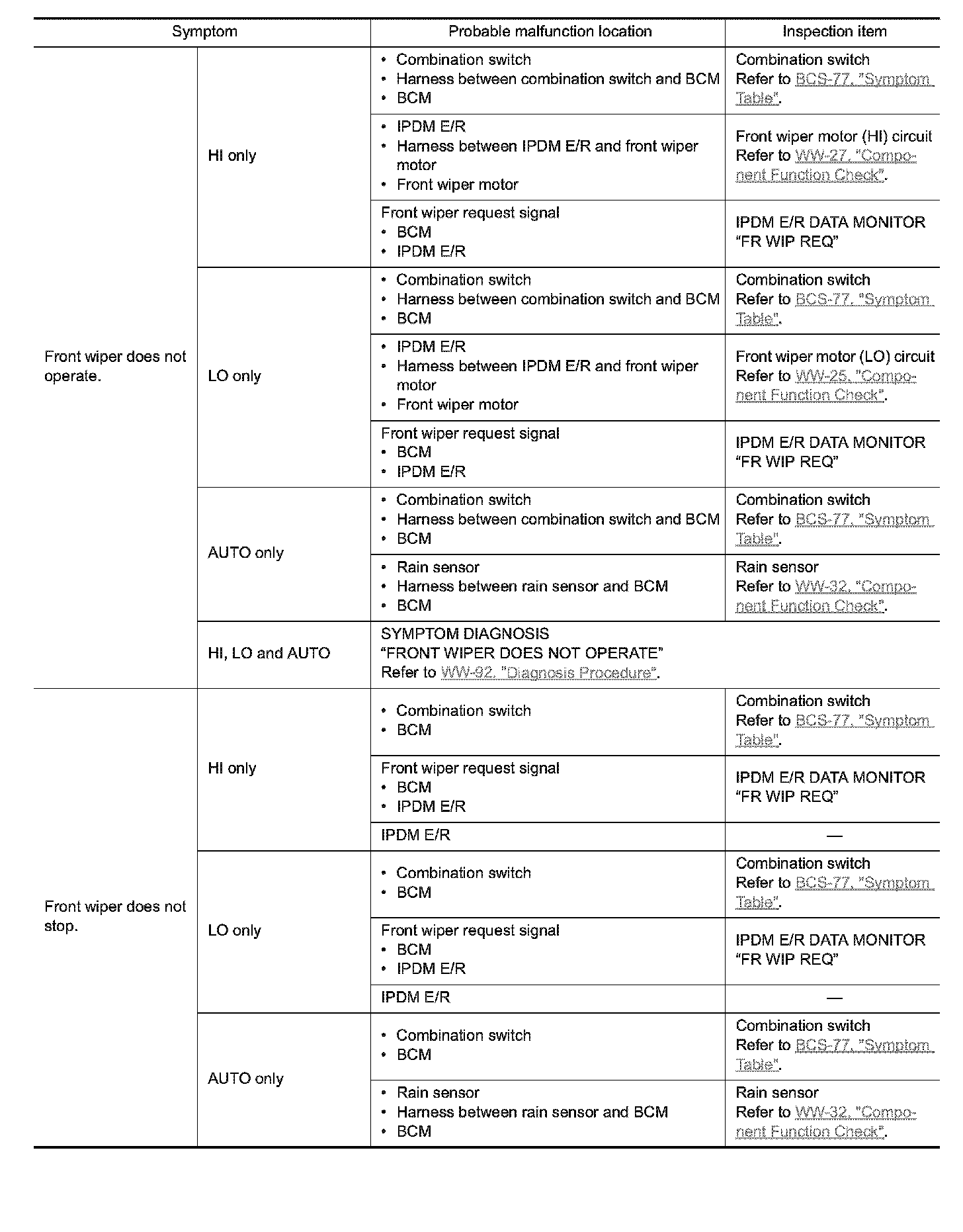

FRONT WIPER AND WASHER SYSTEM SYMPTOMS
WITH
RAIN SENSOR
: Symptom Table
CAUTION:
Perform the self-diagnosis with CONSULT-III before performing the diagnosis by symptom. Perform the diagnosis by DTC if DTC is detected.
