Home >> Infiniti >> 2011 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Wiper and Washer Systems >> Locations >> Front Wiper And Washer System Without Rain Sensor

Front Wiper And Washer System Without Rain Sensor





FRONT WIPER AND WASHER SYSTEM

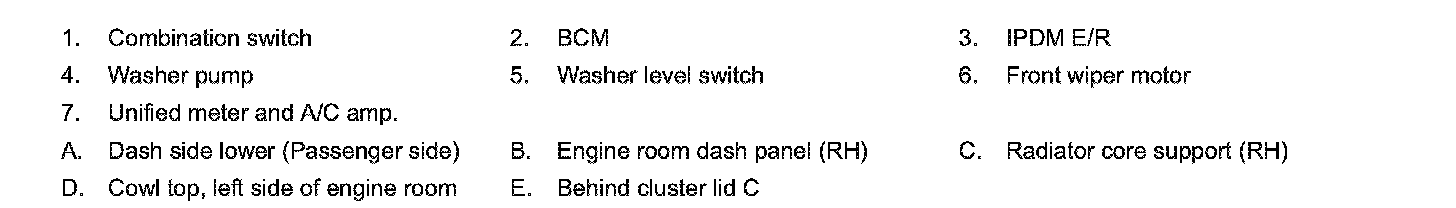

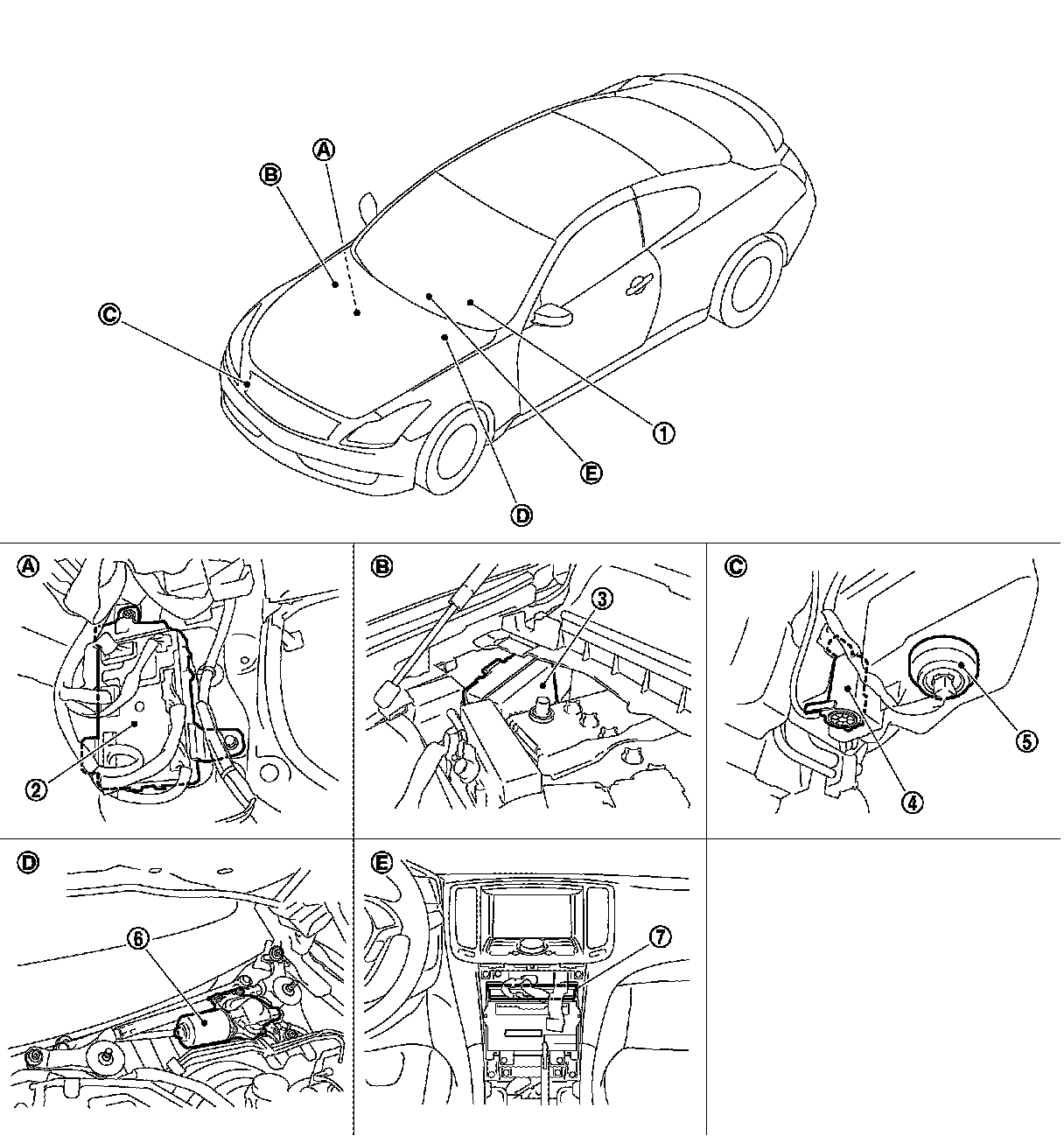

WITHOUT RAIN SENSOR : Component Parts Location
