Front Wiper And Washer System





FRONT WIPER AND WASHER SYSTEM

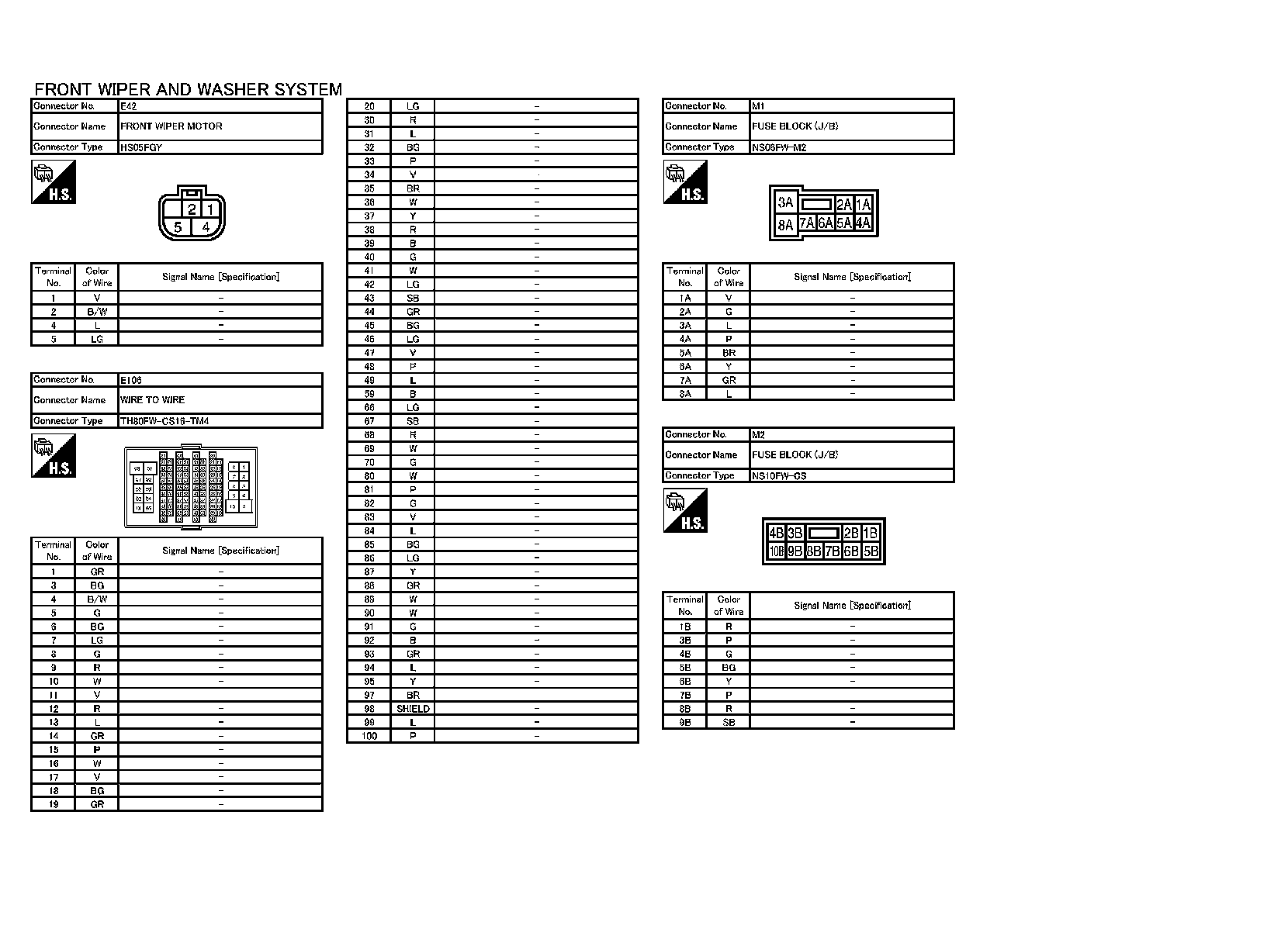

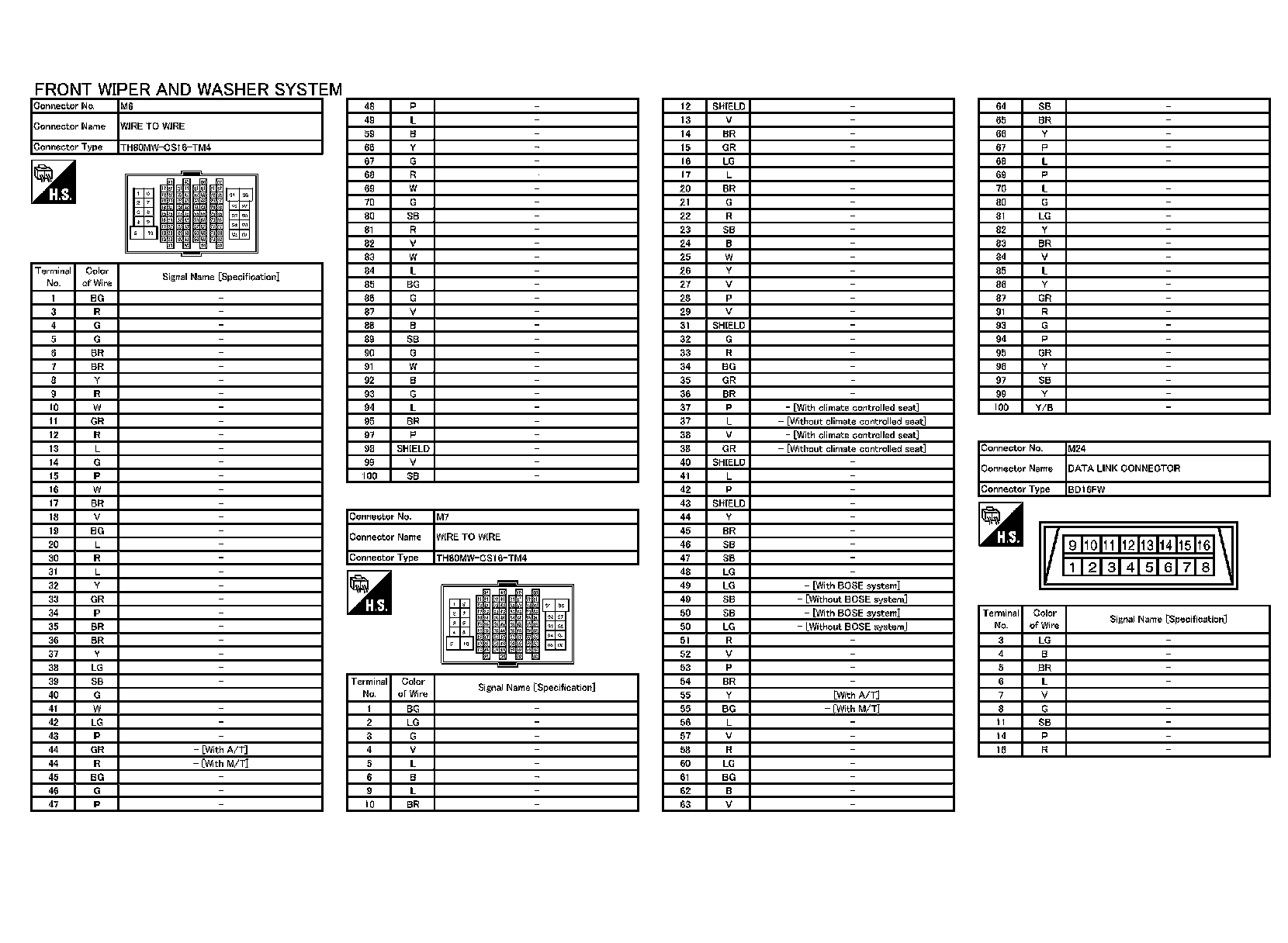

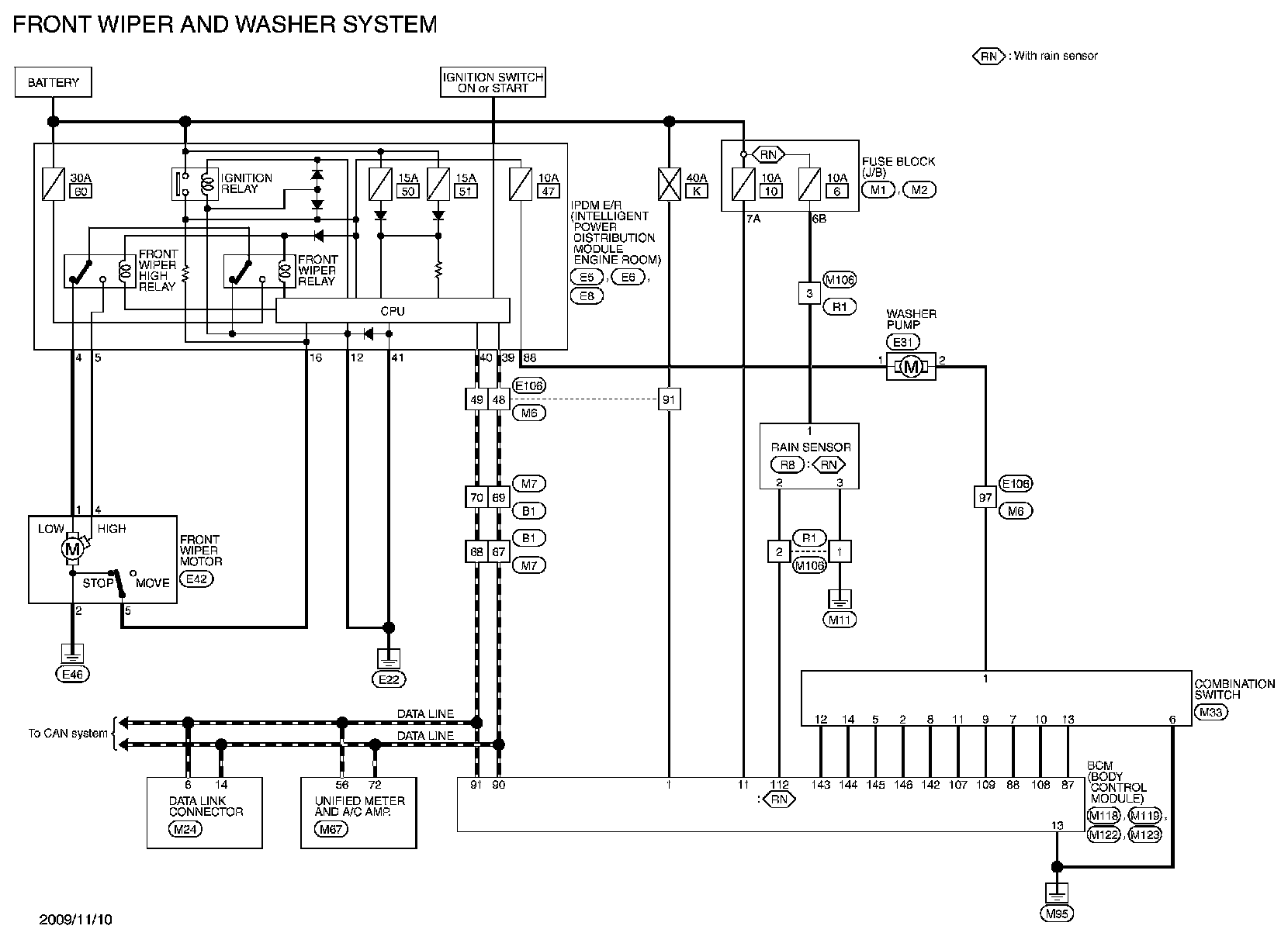

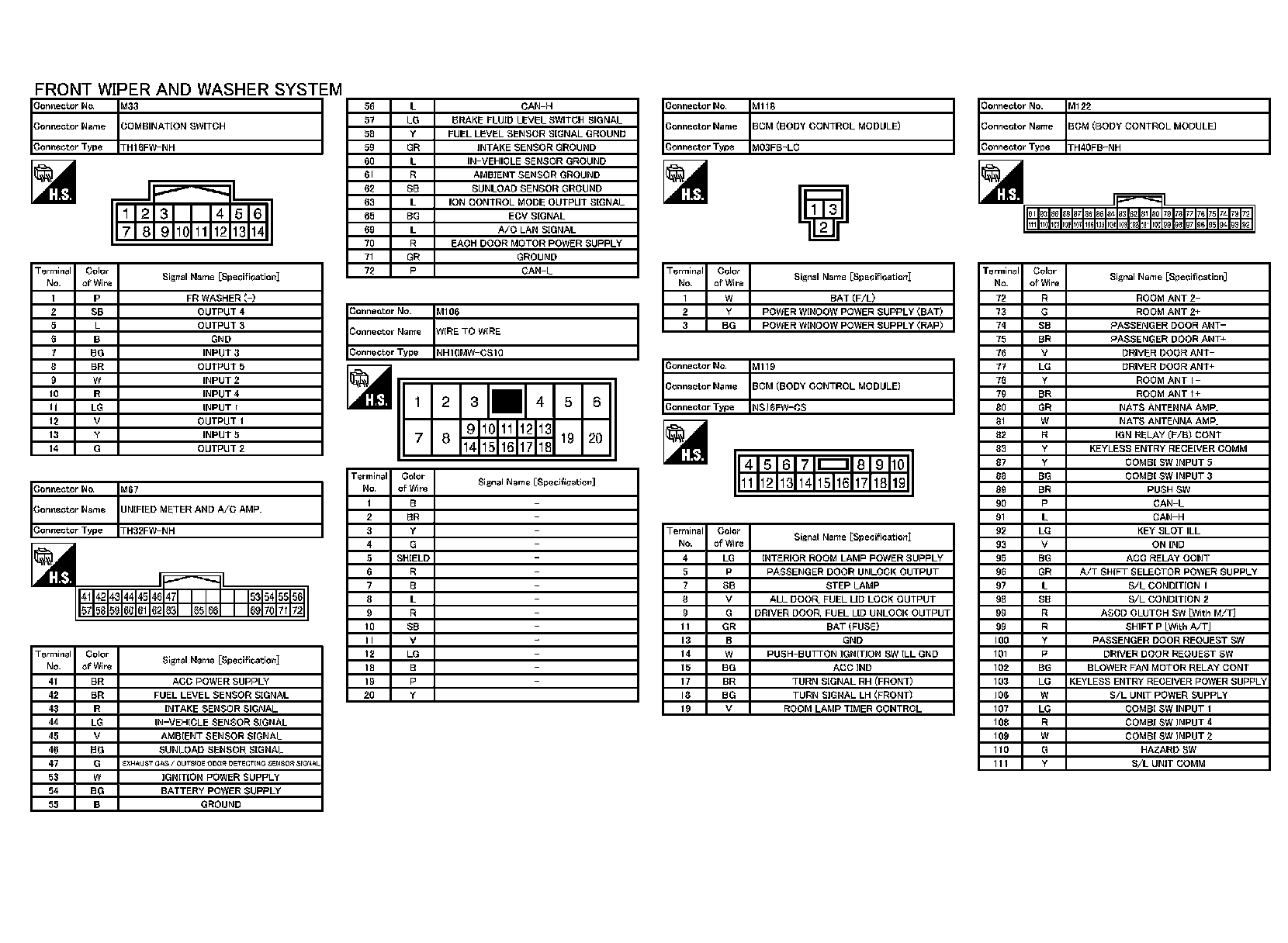

Wiring Diagram - FRONT WIPER AND WASHER SYSTEM -
