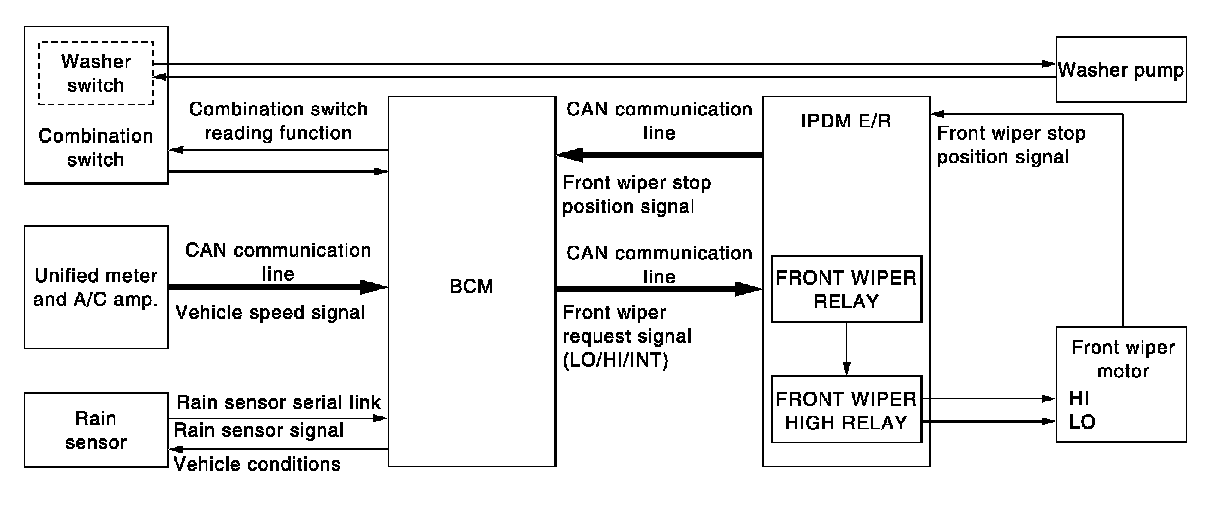

System Diagram With Rain Sensor
System Diagram With Rain Sensor
FRONT WIPER AND WASHER SYSTEM
WITH
RAIN SENSOR
: System Diagram
