Removal And Installation





QUARTER GLASS MOLDING


Removal and Installation

1. Fully open quarter glass.

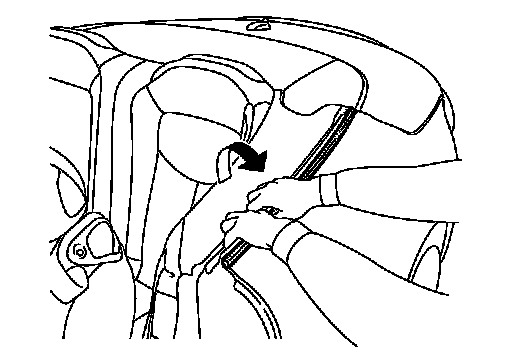

2. Twists and pull up to upper side, and then remove quarter glass molding.

INSTALLATION
Install in the reverse order of removal.
