Removal and Installation

DOOR GLASS


Removal and Installation


REMOVAL
1. Remove the door finisher. Service and Repair.





2. Operate the power window main switch to raise or lower the door window until the glass mounting bolts can be seen.

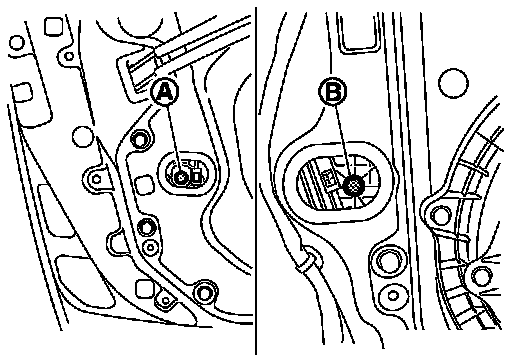

3. Remove the glass mounting bolts (A) and loosen slightly the bolt
(B).





4. Remove the door glass.

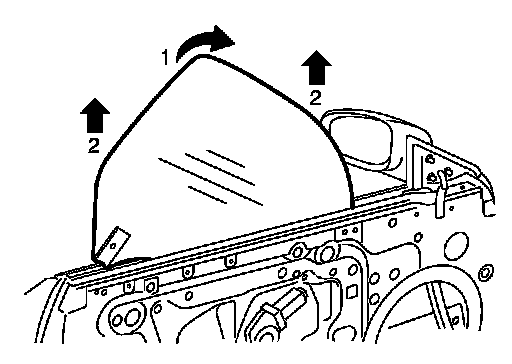

- Hold securely the door glass
- Rotate slightly the door glass toward the direction of arrow 1.
- Pull up the door glass as shown by the arrows 2.
5. Remove the corner piece assembly mounting bolts and nut, and then remove the corner piece assembly.

INSTALLATION
Install in the reverse order of removal.
