Removal And Installation

TRANSMISSION ASSEMBLY


Removal and Installation


CAUTION:
Never reuse CSC (Concentric Slave Cylinder) body and CSC tube. Because CSC slides back to the original position every time when removing transmission assembly. At this timing, dust on the sliding parts may damage a seal of CSC and may cause clutch fluid leakage. Exploded View Removal and Installation, "Removal and
Installation".

REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove control lever with the following procedure.





a. Release control rod boot from control lever housing.

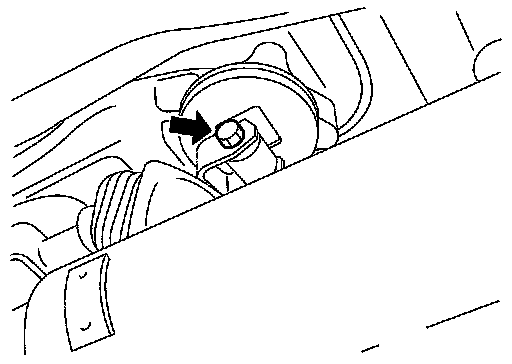

b. Remove mounting bolt (Arrow) and then separate control lever from control rod.

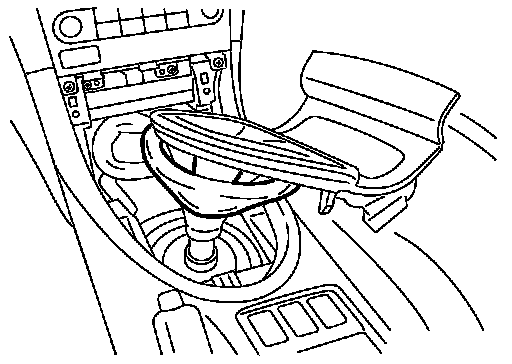

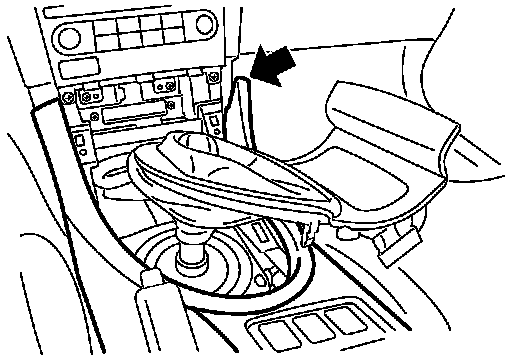

c. Remove console finisher assembly as shown in the figure. Removal And Installation M/T Models.

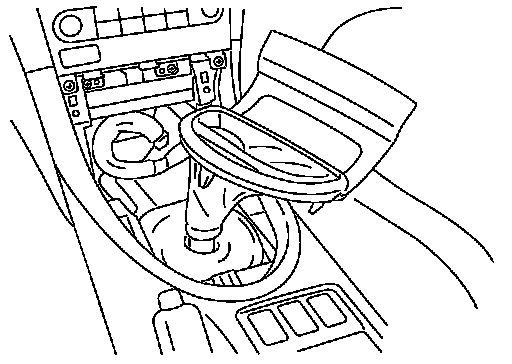

d. Remove felt as shown in the figure.





e. Remove center console assembly to remove hole cover as shown in the figure. Removal And Installation M/T Models, "M/T MODELS : Removal
and Installation".

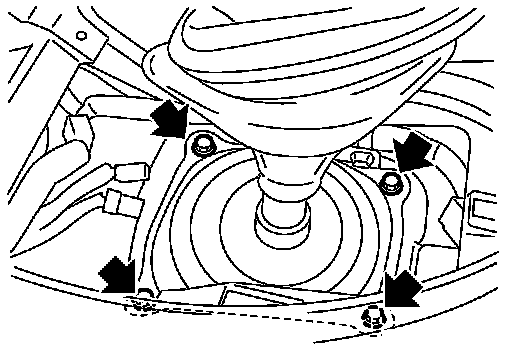

f. Remove mounting bolts (Arrow) and then remove hole cover.
CAUTION:
Never damage center console assembly.
g. Remove control lever boot B, hole insulator, and control lever boot A.

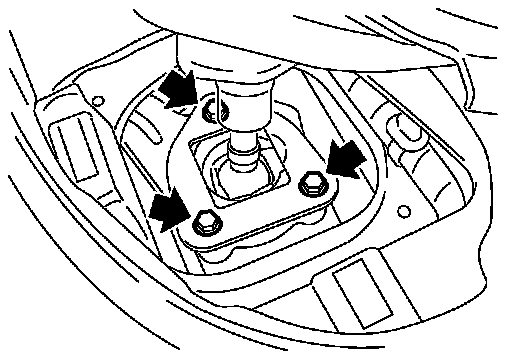

h. Remove mounting bolts (Arrow) while holding guide plate.
i. Remove guide plate, control lever, and control lever spring from control lever housing.
3. Remove exhaust front tube and center muffler. Removal And Installation Inspection After Installation, "Removal and Installation".
4. Separate propeller shaft assembly. Removal And Installation.

NOTE:
Insert a suitable plug into rear oil seal of transmission assembly after removing propeller shaft assembly.

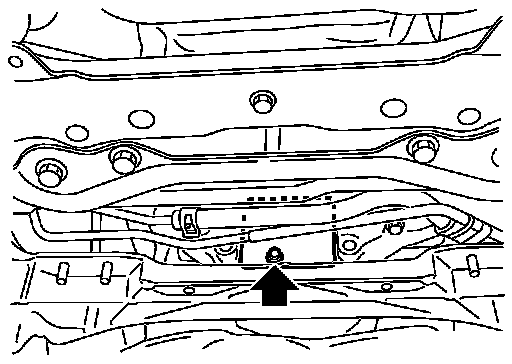

5. Remove exhaust mounting bracket. Removal And Installation.
6. Remove suspension member stay. Removal And Installation.

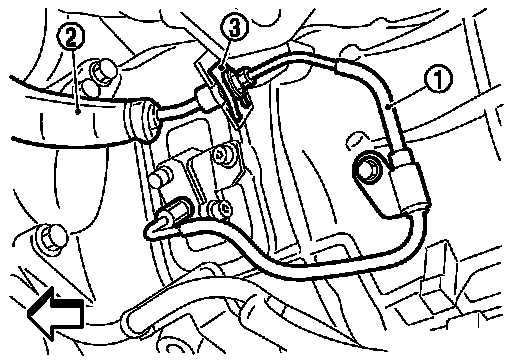

7. Remove clutch tube (1), clutch hose (2), and lock plate (3). Removal and Replacement.

Arrow: Vehicle Front

CAUTION:
- Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately and wash the affected area with water.
- Never depress clutch pedal during removal procedure.

NOTE:
Insert a suitable plug into clutch hose and CSC tube after removing clutch tube.
8. Remove crankshaft position sensor. Removal And Installation.
9. Remove starter motor. Removal And Installation.





10. Remove rear plate cover. Removal And Installation.
11. Disconnect park/neutral position (PNP) switch connector.
12. Disconnect heated oxygen sensor 2 (bank 1) and heated oxygen sensor 2 (bank 2) connectors. Removal And Installation.

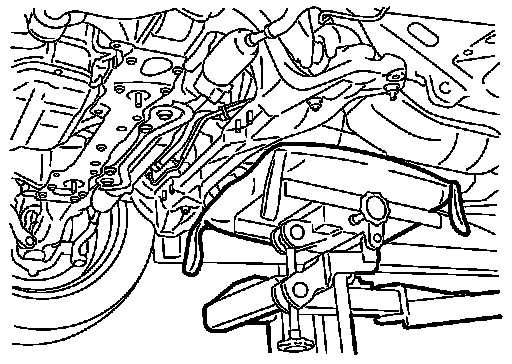

13. Set a suitable jack to the transmission assembly.

CAUTION:
When setting a suitable jack, be careful so that it does not contact with the wire harness.

NOTE:
By placing wooden block between oil pan (upper) and front suspension member, the removal of transmission assembly from engine becomes easier.
14. Remove engine mounting insulator (rear) mounting nuts. Removal And Installation.
15. Remove rear engine mounting member. Exploded View Removal And Installation,
"Removal and Installation".
16. Remove engine and transmission mounting bolts using a power tool [Commercial service tool].
17. Lower a suitable jack to the position where the back-up lamp switch connector can be disconnect. Then disconnect back-up lamp switch connector.
18. Remove harness and harness brackets and then temporarily secure it to a position where it will not inhibit work.
19. Remove transmission assembly from the engine.

CAUTION:
- Secure transmission assembly to a suitable jack while removing it.
- The transmission assembly must not interfere with the three way catalyst (right bank) and three way catalyst (left bank).
- The transmission assembly must not interfere with the wire harnesses and clutch hose.
- The main drive gear must not interfere with the clutch cover.
- Never hold control lever housing to prevent the bushing of control lever housing from deformation when moving transmission assembly.
20. Remove CSC body and CSC tube. Removal and Installation.
21. Remove dynamic dampers. Removal And Installation.

INSTALLATION
Note the following, and install in the reverse order of removal.

CAUTION:
- Secure transmission assembly to a suitable jack while installing it.
- The transmission assembly must not interfere with the three way catalyst (right bank) and three way catalyst (left bank).
- The transmission assembly must not interfere with the wire harnesses and clutch hose.
- The main drive gear must not interfere with the clutch cover.
- Never hold control lever housing to prevent the bushing of control lever housing from deformation when moving transmission assembly.

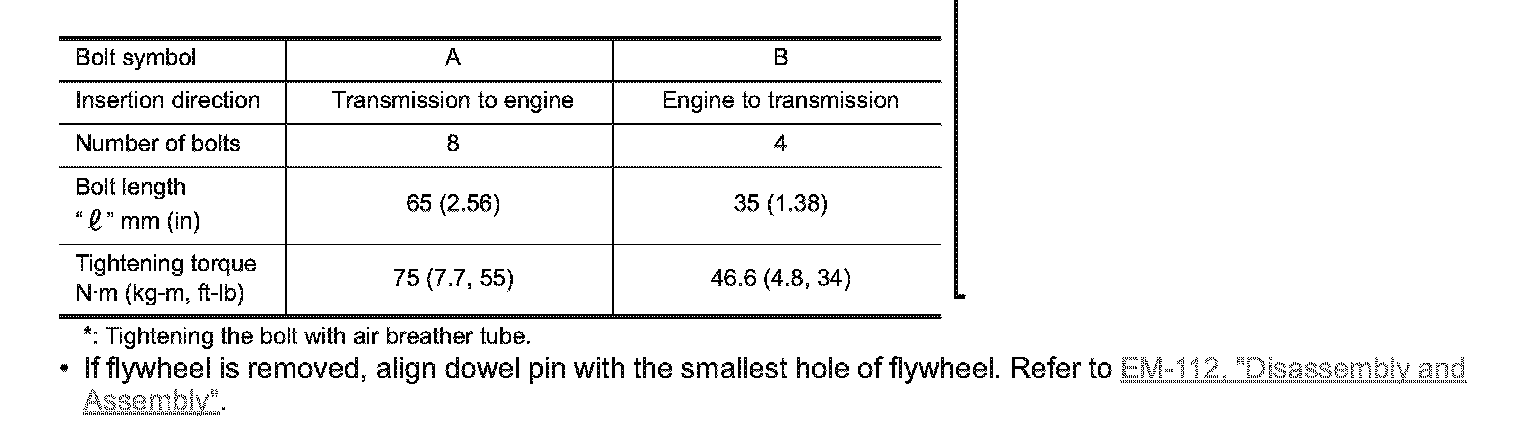

- Tighten transmission assembly mounting bolts to the specified torque. The figure is the view from the vehicle forward.





- If flywheel is removed, align dowel pin with the smallest hole of flywheel. Disassembly And Assembly.
