Removal And Installation

AIR BREATHER HOSE


Removal and Installation


REMOVAL
Exploded View for removal procedure.

INSTALLATION
Note the following, and Exploded View for installation procedure.

CAUTION:
- Make sure there are no pinched or restricted areas on the air breather hose caused by bending or winding when installing it.

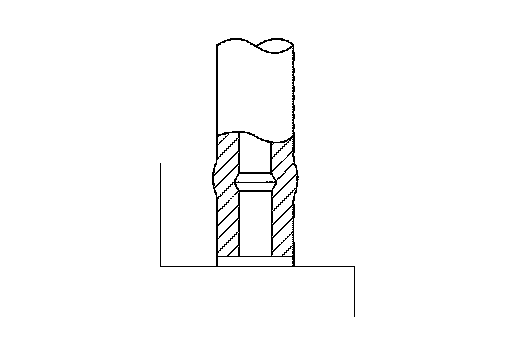

- Be sure to insert air breather hose into breather tube until hose end reaches the tube's base.

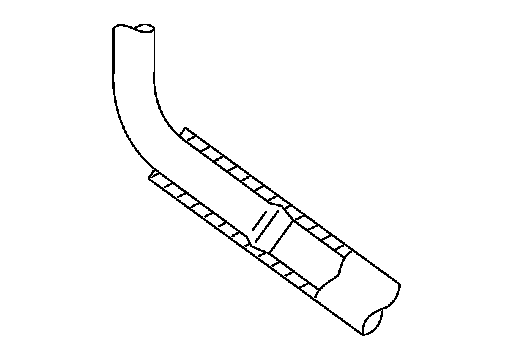

- Be sure to insert air breather hose into air breather tube until hose end reaches the radius curve end.
