Inspection

SHIFT FORK AND FORK ROD


Inspection


INSPECTION AFTER DISASSEMBLY

Shift Fork and Fork Rod

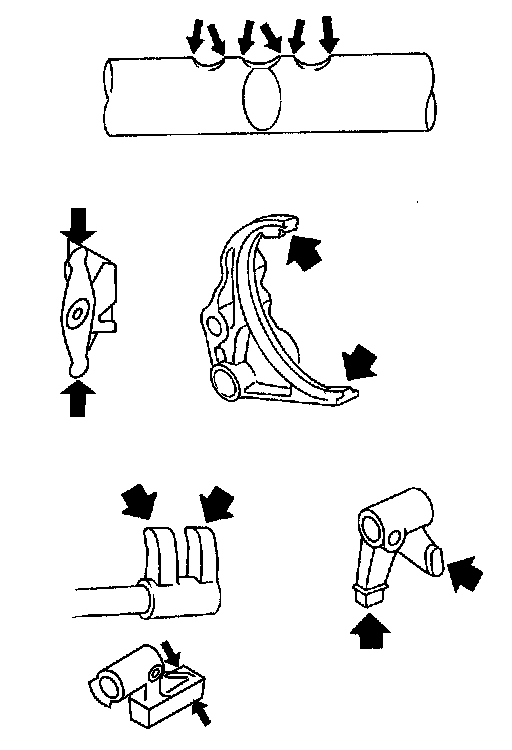

- Check the contact surface of each forks, rods, levers, and brackets for excessive wear, uneven wear, bend, and damage. Replace if necessary.

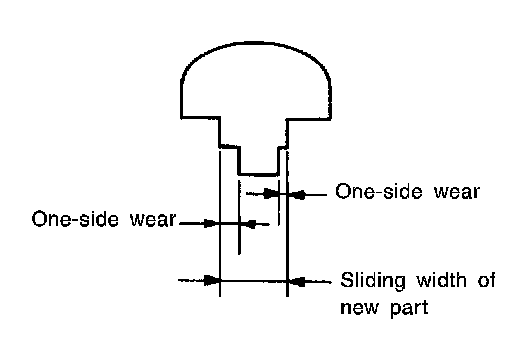

- Check if the width of shift fork hook (sliding area with coupling sleeve) is within allowable specification below.

One-side wear specification : Shift Fork "Shift Fork".
Sliding width of new part : Shift Fork "Shift Fork".
