Disassembly

SHIFT FORK AND FORK ROD


Disassembly

For disassembly procedures other than the following items, refer to "SHIFT FORK AND FORK ROD" in Disassembly.

CHECK SHIFT PIN

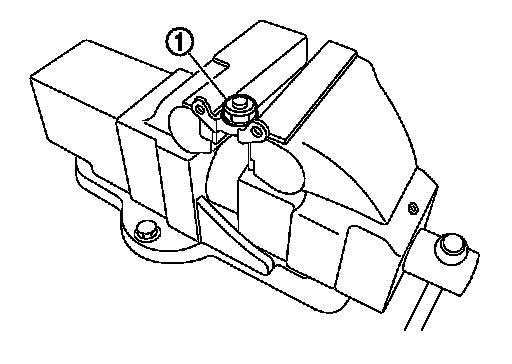

Set the control bracket to a vise and then remove check shift pin (1) from control bracket.

STRIKING ROD

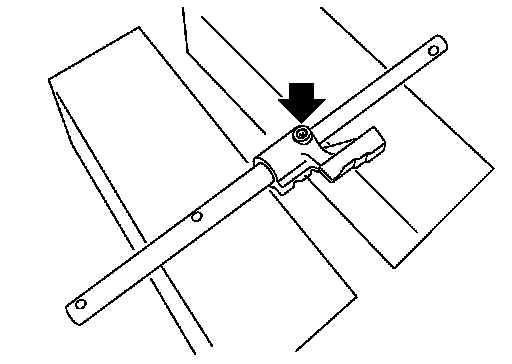

1. Remove retaining pin (Arrow) using a pin punch [Commercial service tool] and then remove stopper ring from striking rod.

Arrow: Transmission front

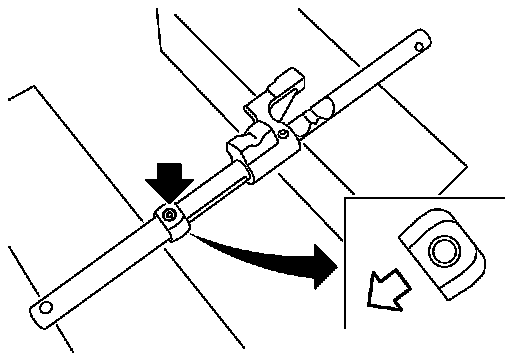

2. Remove retaining pin (Arrow) using a pin punch [Commercial service tool] and then remove low/high control lever from striking rod.
