Removal And Installation

PARK/NEUTRAL POSITION SWITCH


Removal and Installation


REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Disconnect park/neutral position (PNP) switch connector.

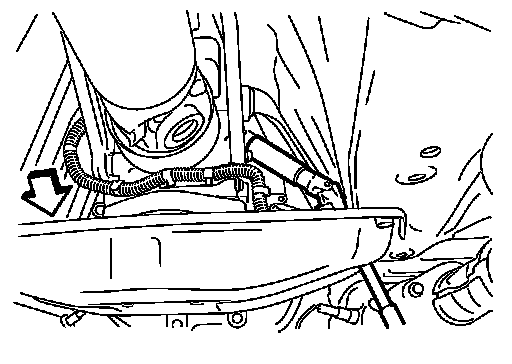

3. Remove park/neutral position (PNP) switch and plunger from rear extension.

Arrow: Vehicle Front

INSTALLATION

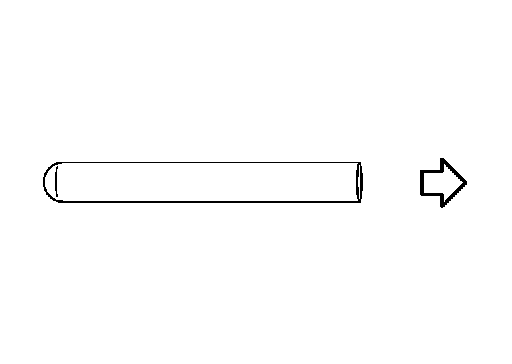

1. Install plunger to rear extension.

CAUTION:





Be careful with orientation of plunger.

Arrow: Park/Neutral position (PNP) switch side





2. Temporarily tighten park/neutral position (PNP) switch onto rear extension by rotating once or twice.

CAUTION:
Remove old sealant and oil adhering to threads.
3. Apply recommended sealant to threads of park/neutral position
(PNP) switch as shown in the figure.
- Use Genuine Silicone RTV or an equivalent. Recommended Chemical Products And Sealants.
4. Tighten park/neutral position (PNP) switch to the specified torque.
5. For the next step and after, install in the reverse order of removal.
