REAR OIL SEAL


Removal and Installation


REMOVAL
1. Separate propeller shaft assembly. Removal And Installation.

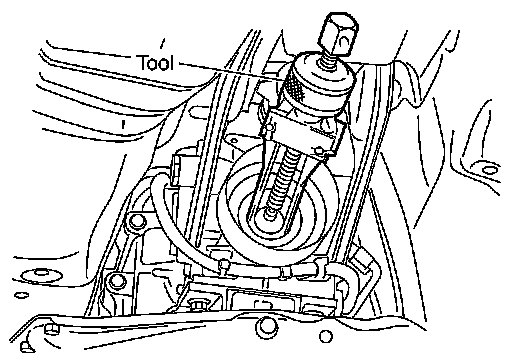

2. Remove rear oil seal from rear extension using the puller [SST: KV381054S0 (J-34286)].

CAUTION:
Never damage rear extension.

INSTALLATION

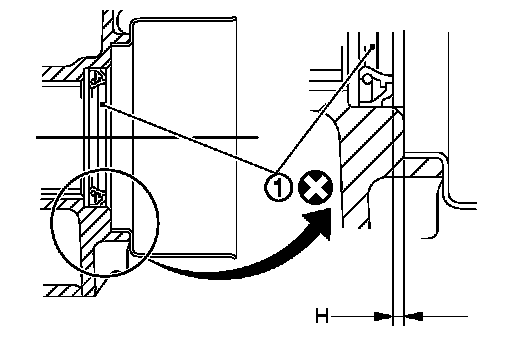

1. Install rear oil seal (1) to rear extension using the drift [SST:
ST33400001 (J-26082)].

Dimension "H" : 1.2 - 2.2 mm (0.047 - 0.087 in)

CAUTION:
Never incline rear oil seal.
2. Install propeller shaft assembly. Removal And Installation.
