Home >> Infiniti >> 2011 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Testing and Inspection

Differential Assembly: Testing and Inspection





NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

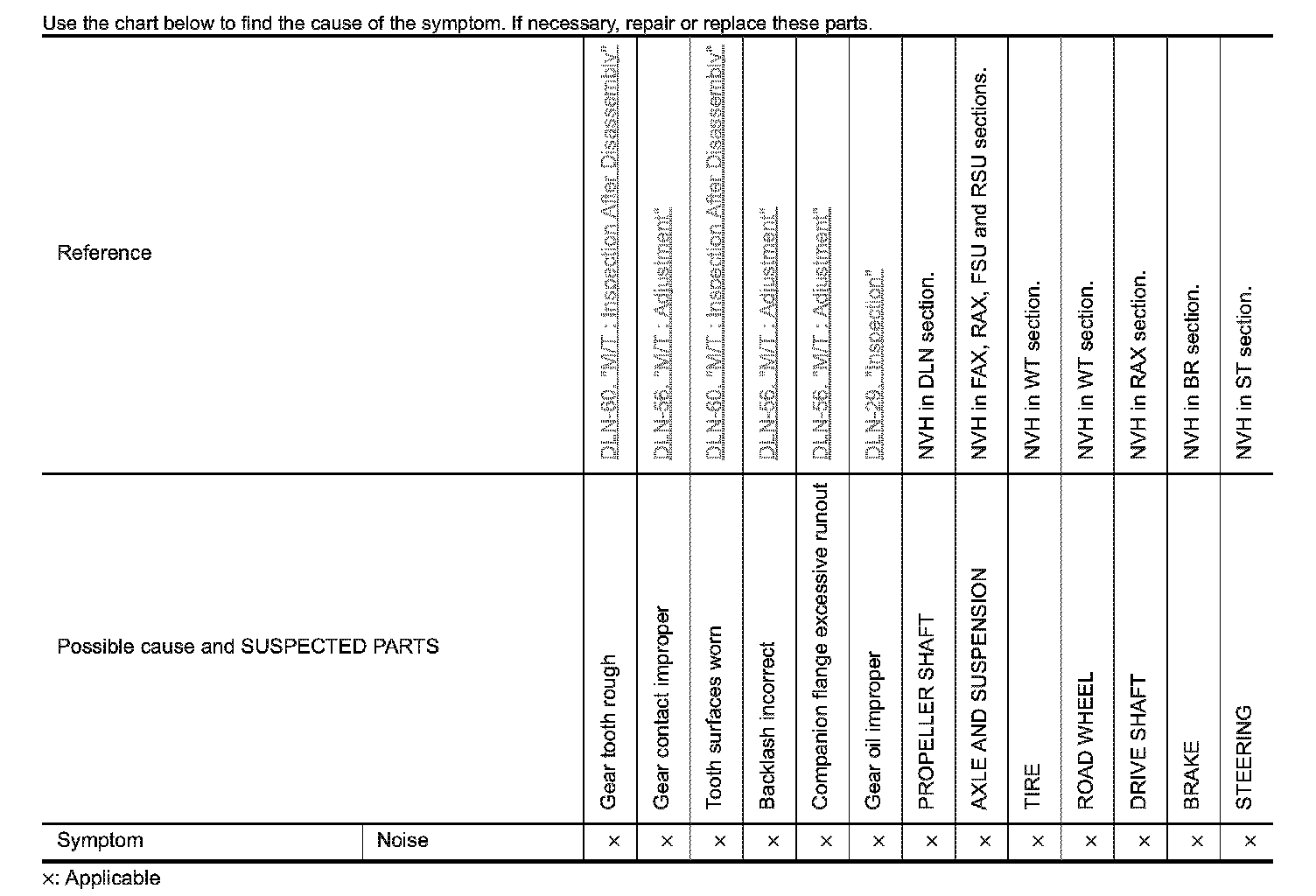

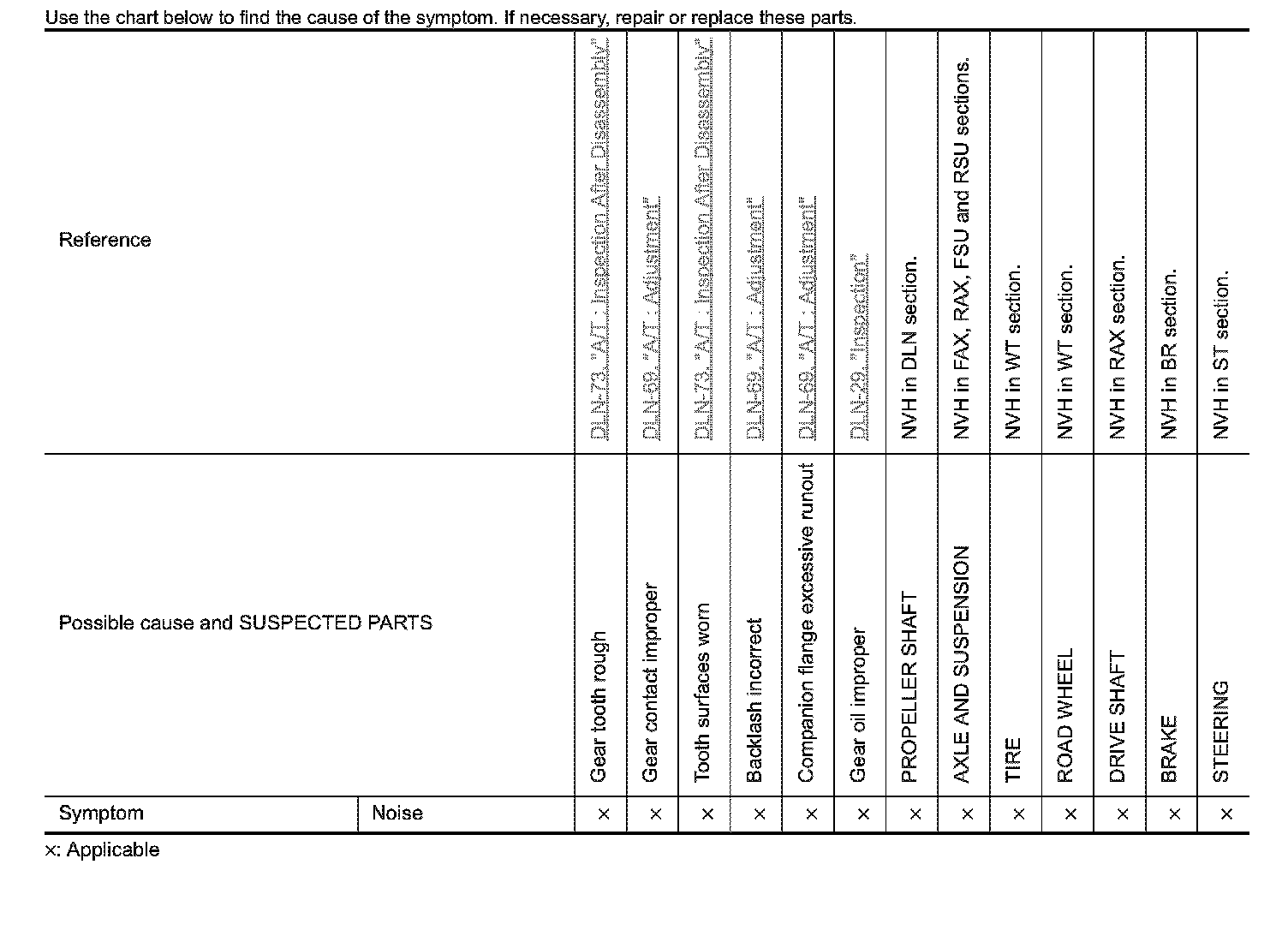

NVH Troubleshooting Chart


M/T






A/T
