Inspection After Removal

CLUTCH PEDAL


Inspection and Adjustment


INSPECTION AFTER REMOVAL
Check the following items and replace clutch pedal if necessary.

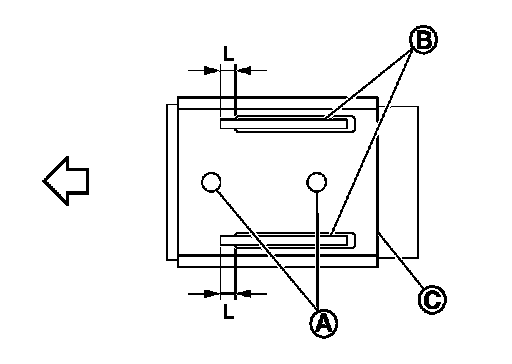

- Check clutch pedal upper rivets (A) for deformation.

Arrow: Vehicle Front

- Check the lapping length "L" of sub-bracket (B) and slide plate (C).

Lapping length "L" : More than 5 mm (0.20 in)

- Check clutch pedal for bend, damage, and cracks on the welded parts.

INSPECTION AFTER INSTALLATION
Check the clutch pedal free play. Adjustments.

ADJUSTMENT AFTER INSTALLATION
Adjust the clutch interlock switch position. Adjustments.
