Inspection And Adjustment

OIL PUMP, 2346 BRAKE, FRONT BRAKE PISTON


Inspection and Adjustment


INSPECTION AFTER DISASSEMBLY

Each Snap Ring
Check for deformation, fatigue or damage. If necessary, replace snap ring.

Each Spring Retainer
Check for deformation, fatigue or damage. If necessary, replace spring retainer.
Check facing for burns, cracks or damage. If necessary, replace drive plates and driven plates.
Check facing for burns, cracks or damage. If necessary, replace retaining plate and dish plate.

INSPECTION AFTER ASSEMBLY

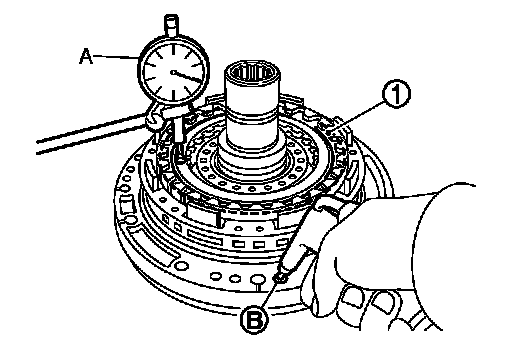

Set a dial indicator (A) as shown in the figure. Blow air into 2346 brake oil pressure hole (B), and measure 2346 brake clearance. If clearance is outside the specified value, adjust clearance by selecting an appropriate snap ring (1). Oil Channel.

Air pressure : 300kPa (3.06 kg/cm2, 43.5 psi)
2346 brake clearance: 2346 Brake Clearance "2346 Brake Clearance".


CAUTION:
Never exceed the specified air pressure value.
