Disassembly

HIGH AND LOW REVERSE CLUTCH


Disassembly






1. Remove bearing race from high and low reverse clutch drum.

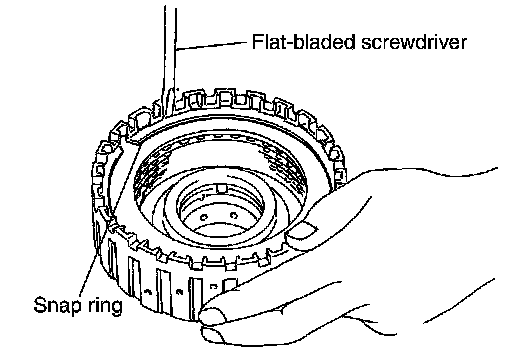

2. Remove snap ring from high and low reverse clutch drum using a flat-bladed screwdriver.

CAUTION:
- Be careful not to scratch high and low reverse clutch drum.
- Be careful not to damage snap ring.
3. Remove drive plates, driven plates and retaining plate from high and low reverse clutch drum.
