Disassembly

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR


Disassembly

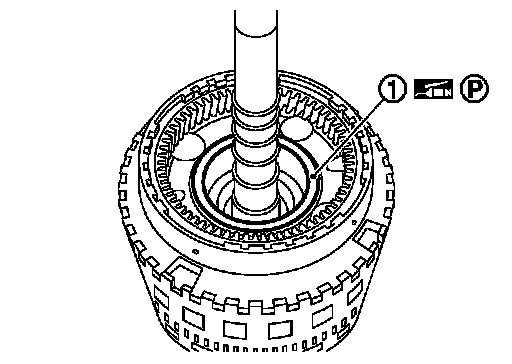

1. Remove needle bearing (1) from front carrier assembly.

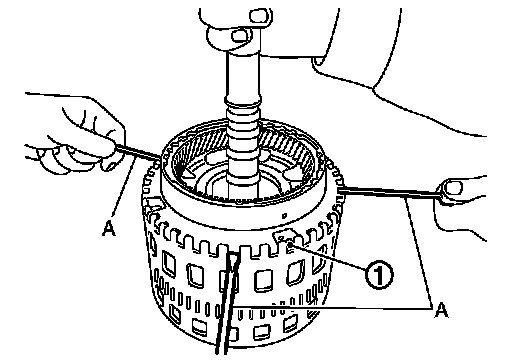

2. Compress snap ring (1) using flat-bladed screwdrivers (A).

CAUTION:
- Be careful not to scratch rear internal gear.
- Be careful not to damage snap ring.
3. Remove front carrier assembly and input clutch assembly from rear internal gear.
4. Remove front carrier assembly from input clutch assembly.

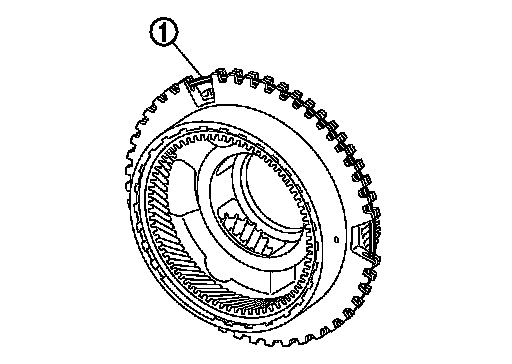

6. Remove snap ring (1) from front carrier assembly.

CAUTION:
Be careful not to expand snap ring excessively.

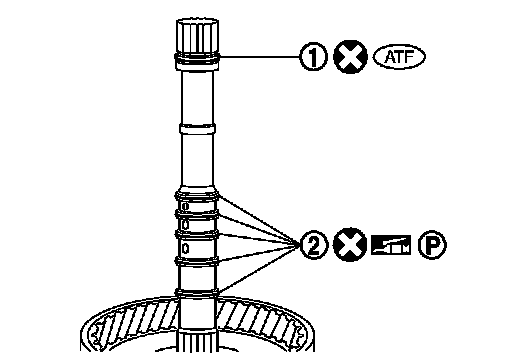

7. Remove O-ring (1) and seal rings (2) from input clutch assembly.

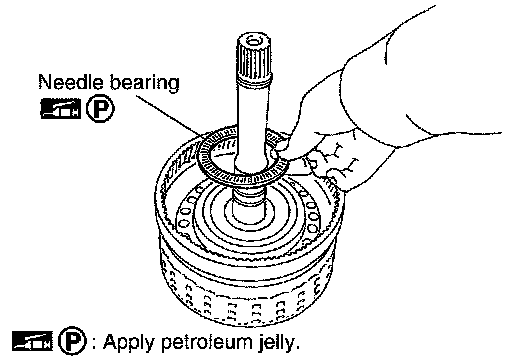

8. Remove needle bearing from input clutch assembly.

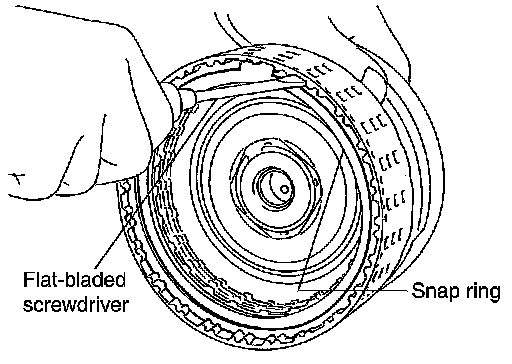

9. Remove snap ring from input clutch drum using a flat-bladed screwdriver.

CAUTION:
- Be careful not to scratch rear input clutch drum and input clutch retaining plate.
- Be careful not to damage snap ring.
10. Remove input clutch drive plates, input clutch driven plates, and input clutch retaining plate from input clutch drum.
