Assembly

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR


Assembly

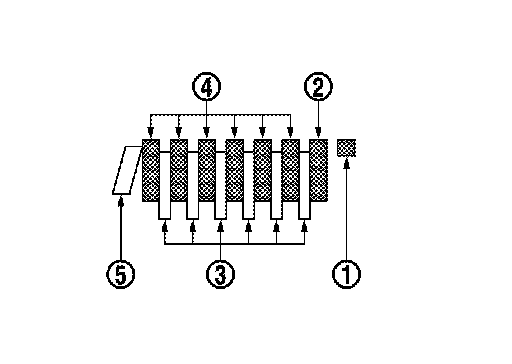

1. Install input clutch component part (drive plates, driven plates, retaining plate, dish plate and snap ring) in input clutch drum.

1 : Snap ring
2 : Retaining plate
3 : Drive plate (six pieces)
4 : Driven plate (six pieces)
5 : Dish plate

CAUTION:
Check order of plates.

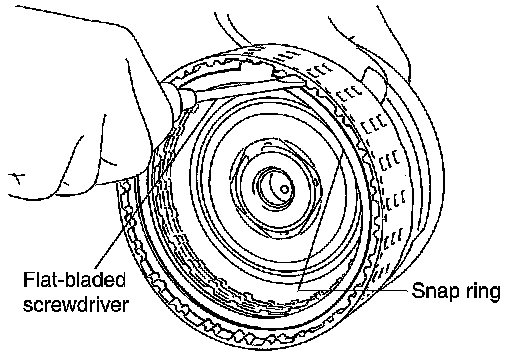

2. Install snap ring in input clutch drum using a flat-bladed screwdriver.

CAUTION:
- Be careful not to scratch input clutch drum and input clutch retaining plate.
- Be careful not to damage snap ring.

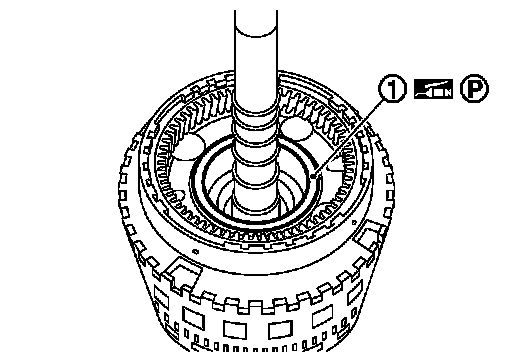

3. Install needle bearing in input clutch assembly.

CAUTION:
Check the direction of needle bearing. Location Of Needle Bearings And Bearing Races, "Location of Needle Bearings and Bearing Races".

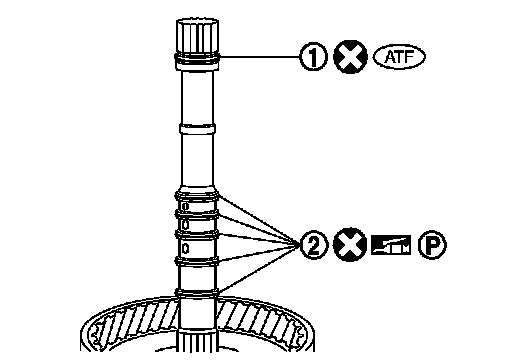

4. Install O-ring (1) and seal rings (2) in input clutch assembly.

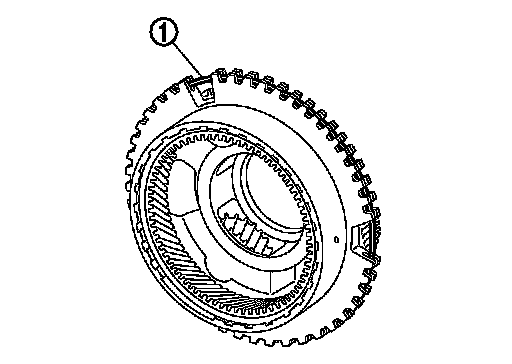

5. Install snap ring (1) to front carrier assembly.

CAUTION:
Be careful not to expand snap ring excessively.





6. Compress snap ring (1) using flat-bladed screwdrivers (A).

CAUTION:
- Be careful not to scratch rear internal gear.
- Be careful not to damage snap ring.
7. Install front carrier assembly and input clutch assembly to rear internal gear.

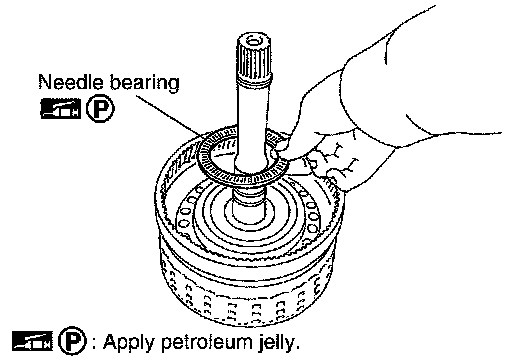

8. Install needle bearing (1) to front carrier assembly.

CAUTION:
Check the direction of needle bearing. Location Of Needle Bearings And Bearing Races, "Location of Needle Bearings and Bearing Races".
