Body - Door Accent Garnish Replacement
Classification: BT09-077AReference: ITB10-011A
Date: October 19, 2010
DOOR ACCENT GARNISH REPLACEMENT - NON ALUMINUM
APPLIED VEHICLES:
2006 - 2010 M35/45 (Y50)
2009 - 2011 FX35/50 (S51)
2008 - 2011 EX35 (J50)
2009 - 2011 G37 Sedan (V36)
2008 - 2011 G37 Coupe (CV36)
2009 - 2011 G37 Convertible (HV36)
IF YOU CONFIRM
An accent garnish on a front or rear door panel (door finisher) needs to be replaced for any reason.
and
Is not an aluminum type garnish.
ACTION
Replace the accent garnish on all door panels:
^ For 2 door vehicle replace garnish on both doors.
^ For 4 door vehicles replace garnish on all 4 doors.
^ Use the kit listed in the Parts Information.
^ Refer to the Service Manual as needed for door panel removal and installation.
NOTE:
^ Do not replace an entire door panel (finisher) when replacing only the accent garnish will solve the incident should one occur.
^ For vehicles with aluminum garnishes replace only the damaged garnish with the individual part number listed in the electronic parts catalog (FAST or equivalent).

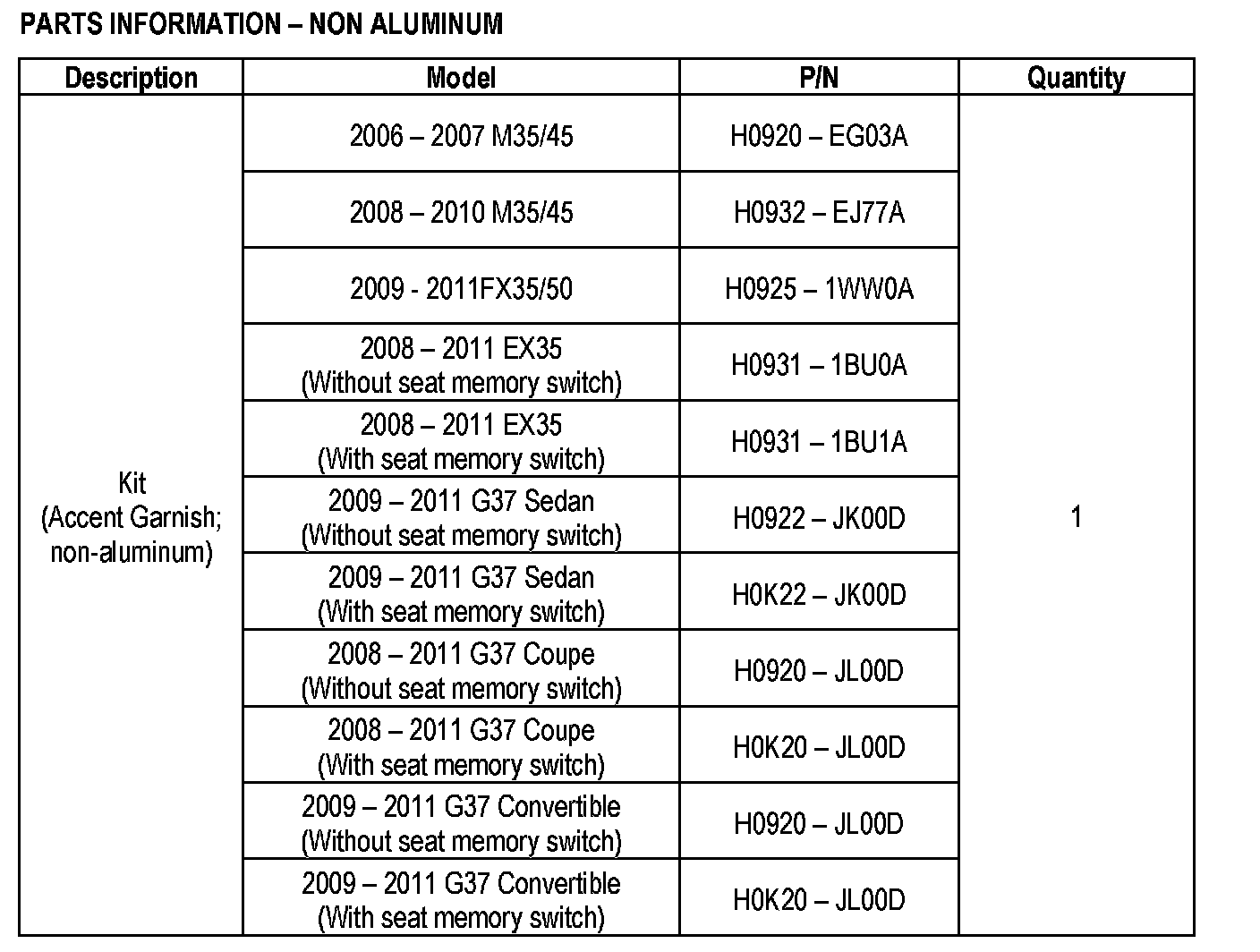

PARTS INFORMATION

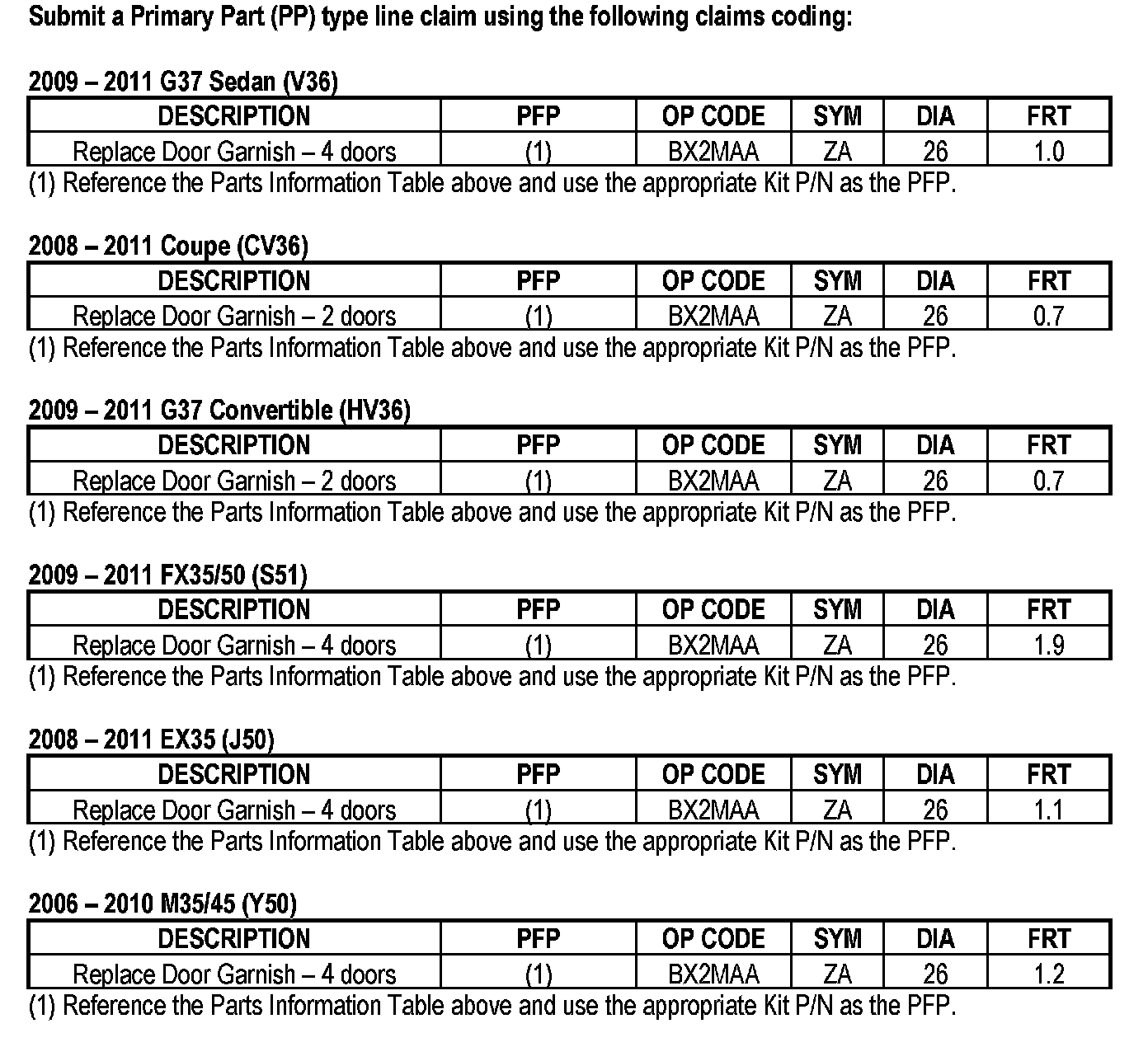

CLAIMS INFORMATION
