Part 2: Perform Multi AV Initialization Using on-Board Systems

Part 2: Perform Multi AV initialization using the vehicles on-board Systems Diagnostic Menu.

NOTE:
^ The ignition should still be ON.

^ Leave C-III plus turned ON with the home screen displayed and the VI connected while performing Multi-AV initialization.

1. Turn the audio system OFF.

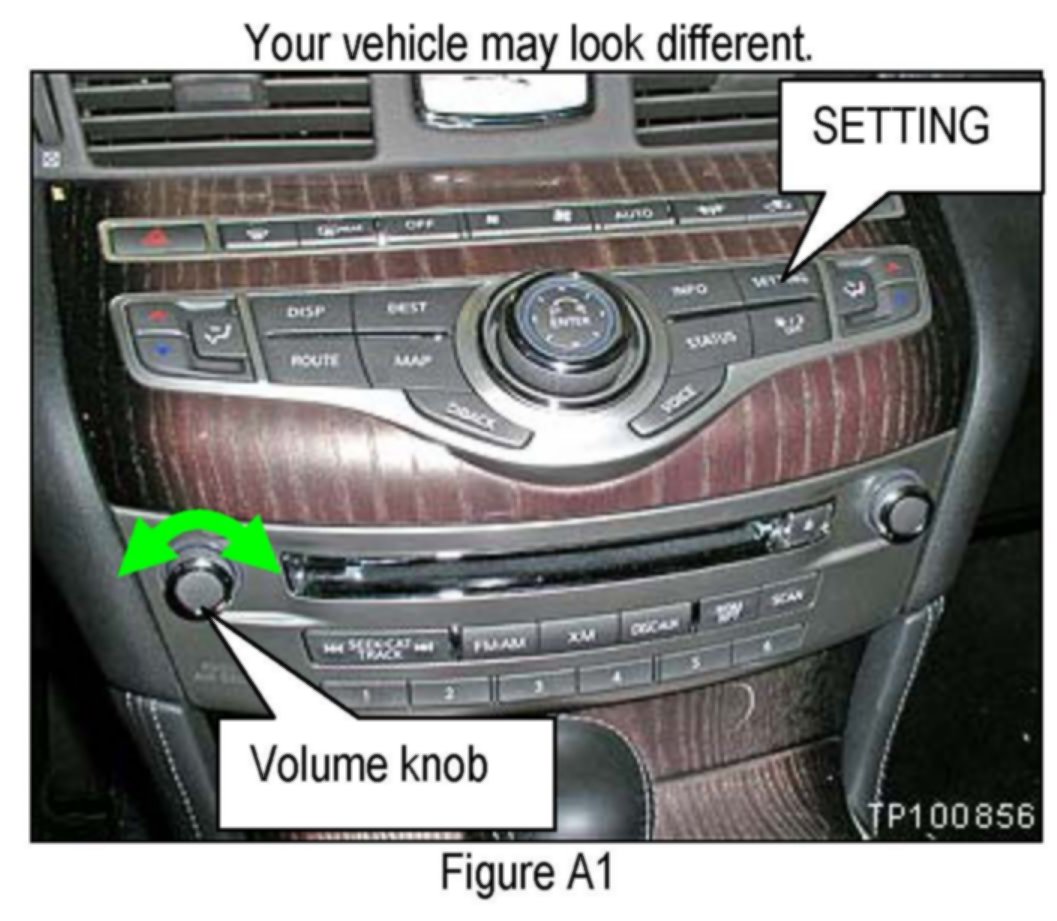

2. Put the AV system into System Diagnostic Mode as follows:





a. Press and hold the SETTING button.

b. While holding the SETTING button, turn the volume control knob 40 clicks or more.

^ The volume control knob can be turned either direction.

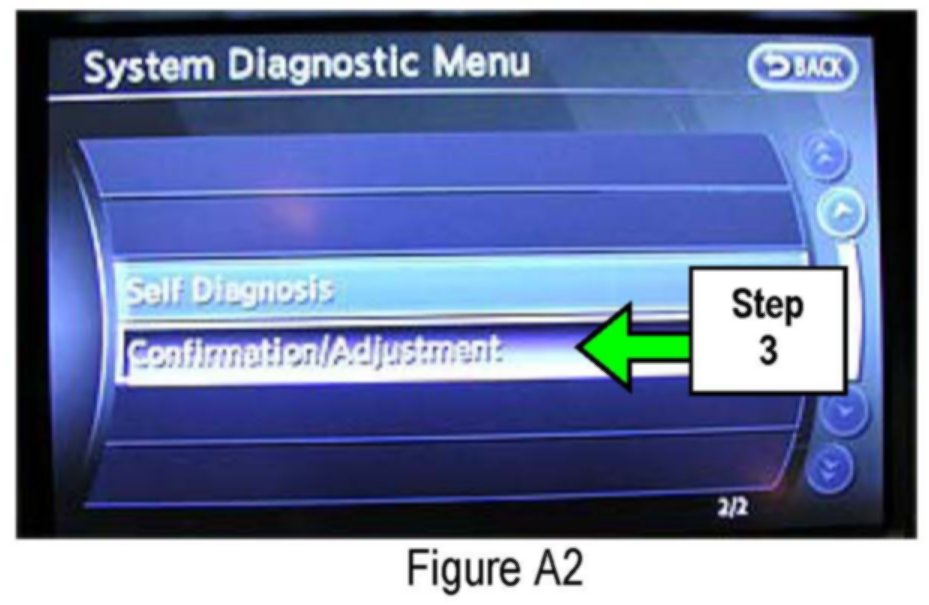

^ When the system goes into the System Diagnostic Menu, the screen in Figure A2 will display.

3. Select Confirmation/Adjustment.

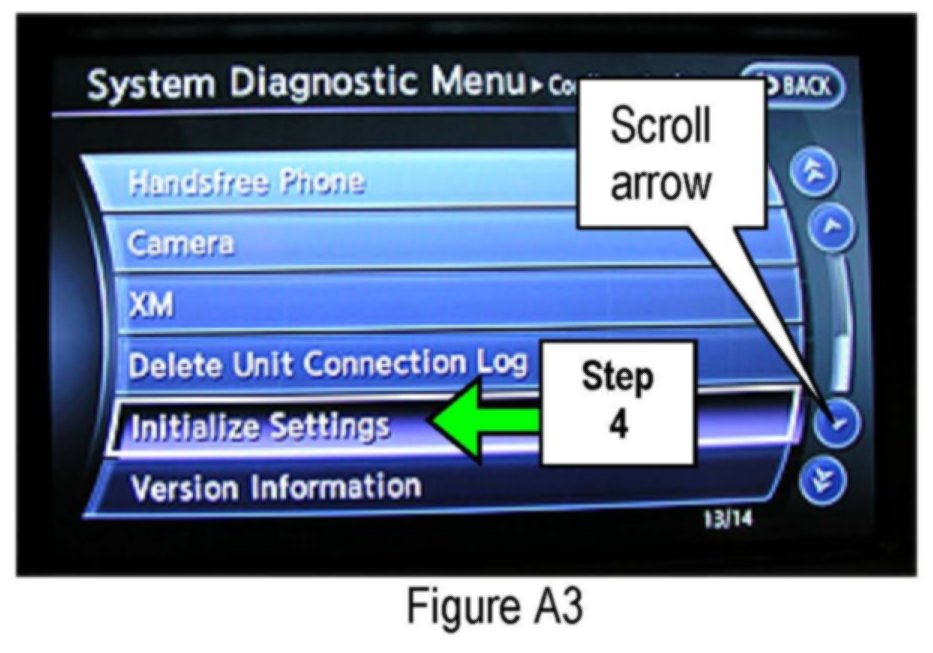

4. Select Initialize Settings.

NOTE:
Use the scroll arrow to find Initialize Settings.

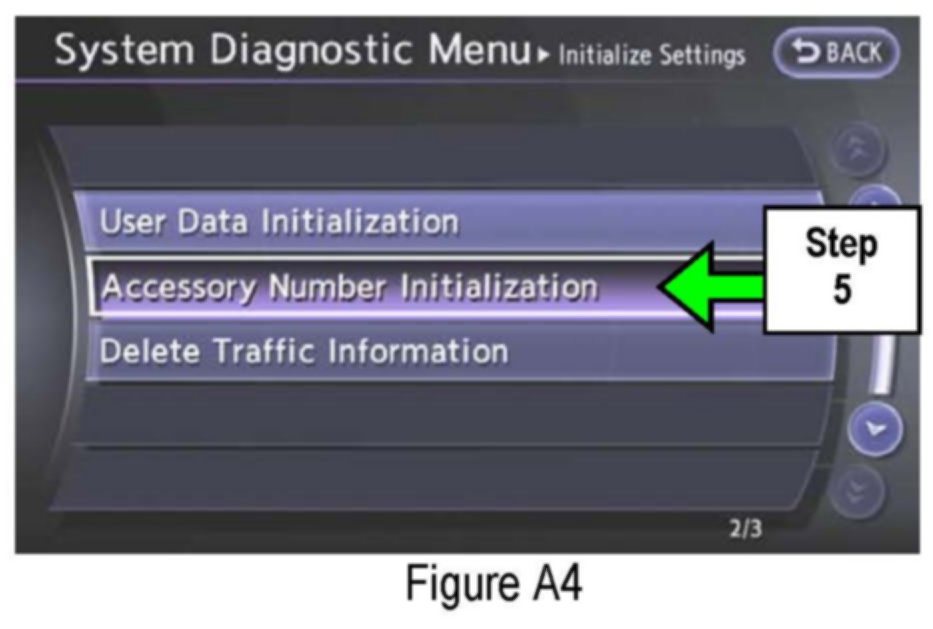

5. Select Accessory Number Initialization.

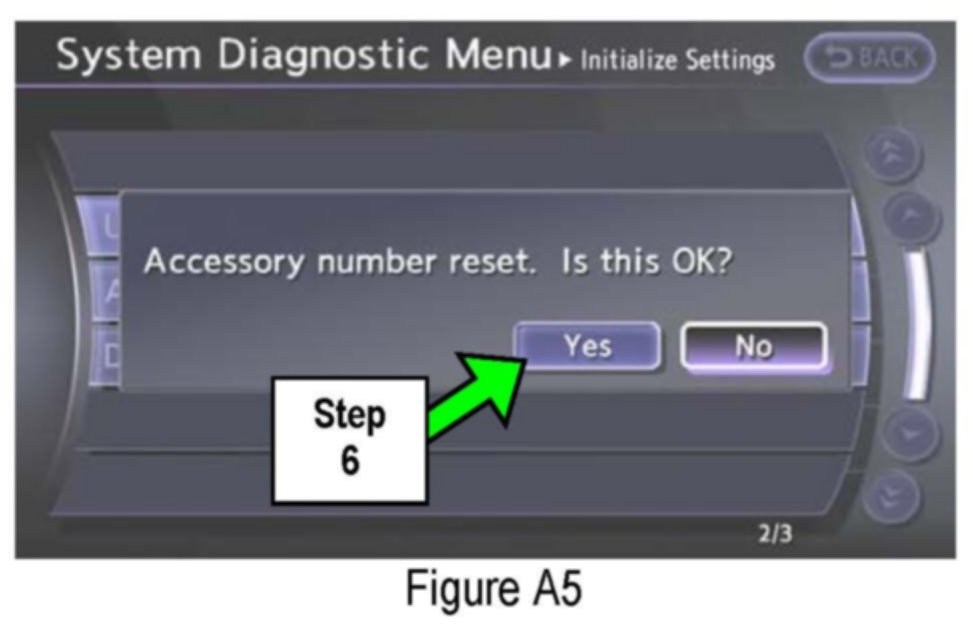

6. Select Yes.

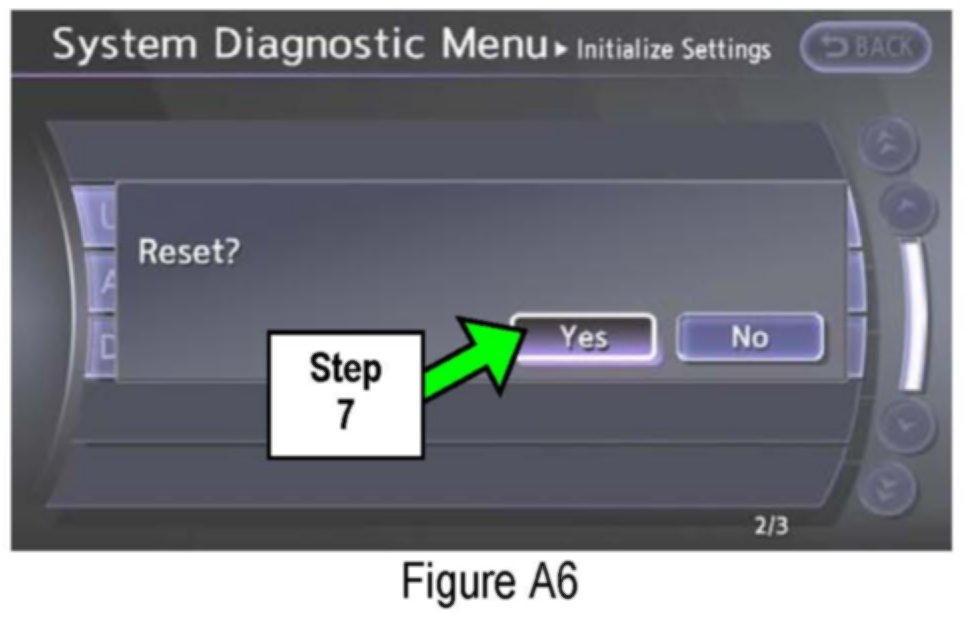

7. Select Yes.

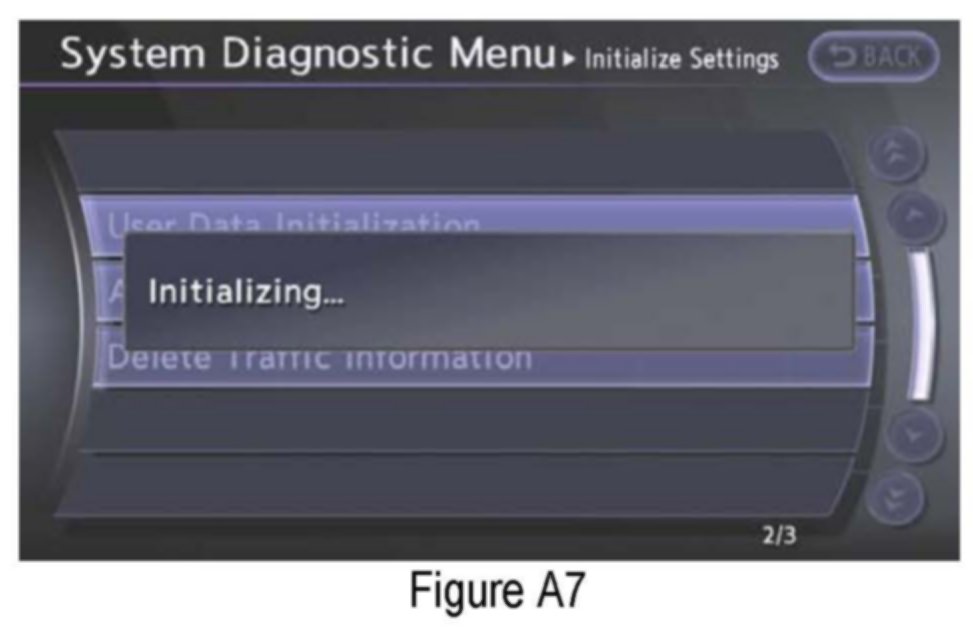

8. The screen in Figure A7 will display while initializing.





9. The screen in Figure A8 will display when initializing is complete.

10. Reboot the Multi AV system as follows:

a. Turn the ignition OFF.

b. Wait 10 Seconds.

c. Turn the ignition ON.
