Component Tests and General Diagnostics

LOWER SHAFT


Inspection






- Check the sliding range of the lower shaft.

CAUTION:

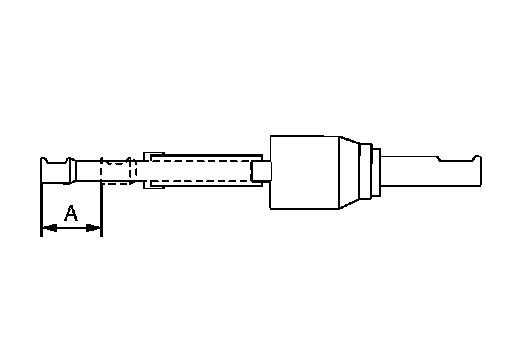

Check the sliding range (A) (between the extended position and the contracted position) of the lower shaft.

A : Refer to ST-46, "Lower Shaft Sliding Range".

- Check each part of lower shaft for damage or other malfunctions. Replace if there are.
