Exploded View Except For Sport Models
Exploded View Except For Sport Models

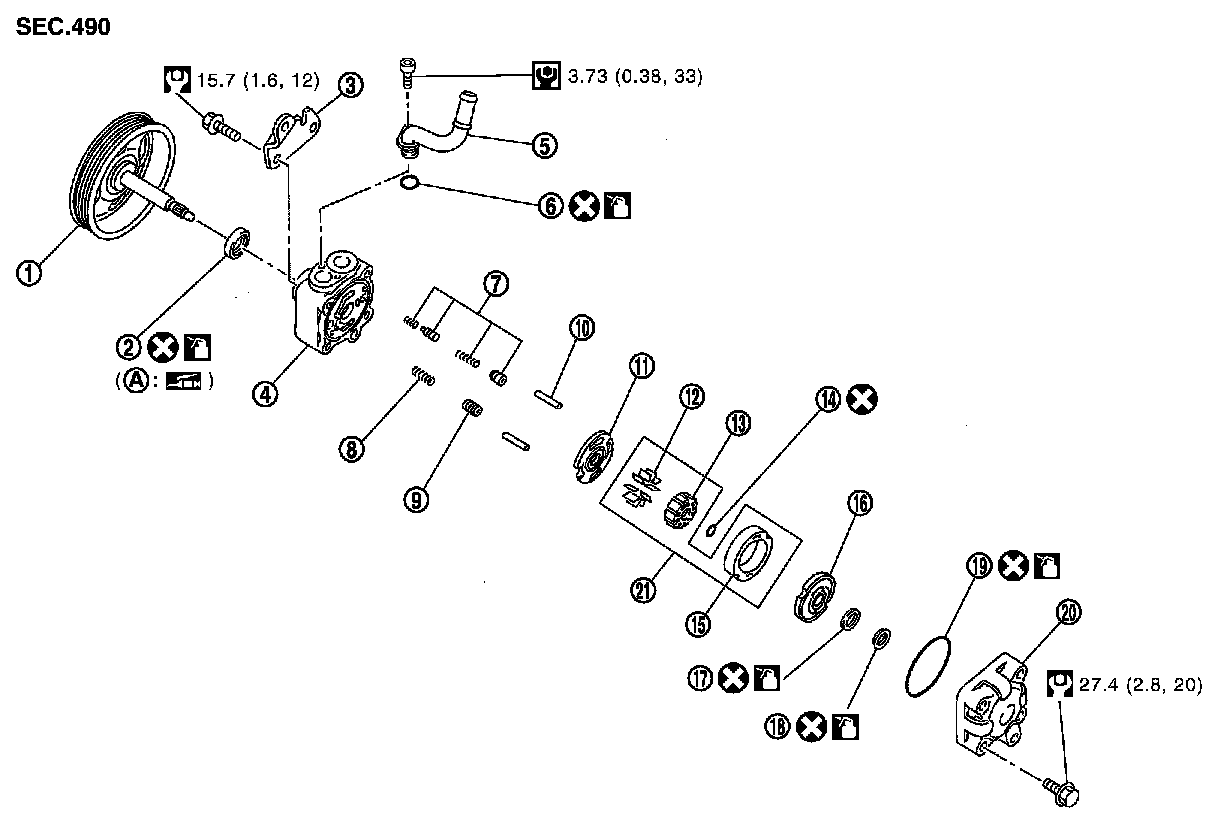

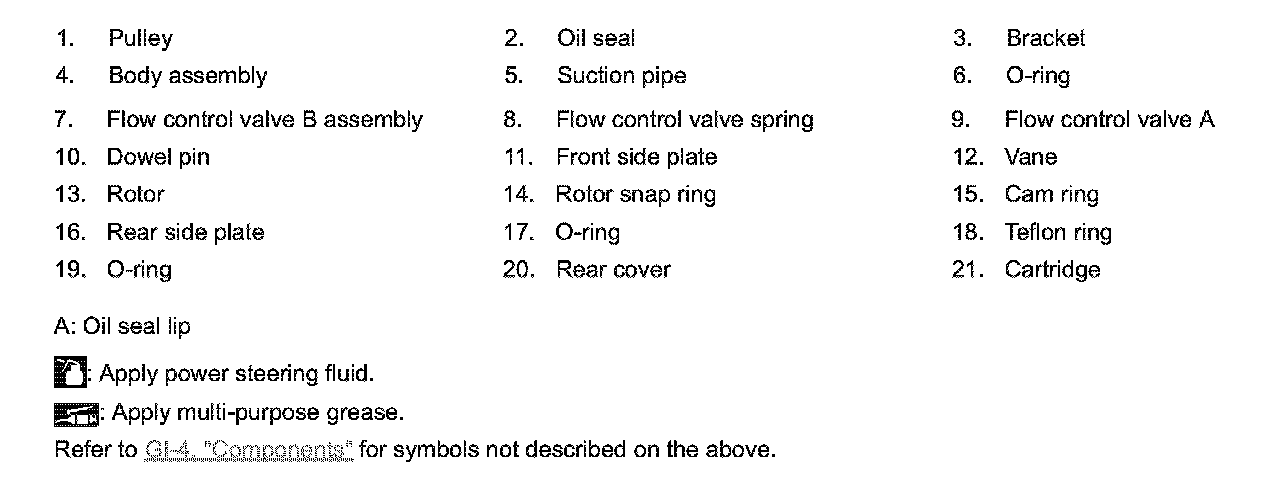

POWER STEERING OIL PUMP
EXCEPT FOR SPORT MODELS : Exploded View

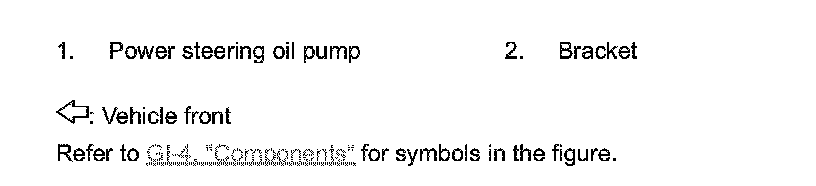

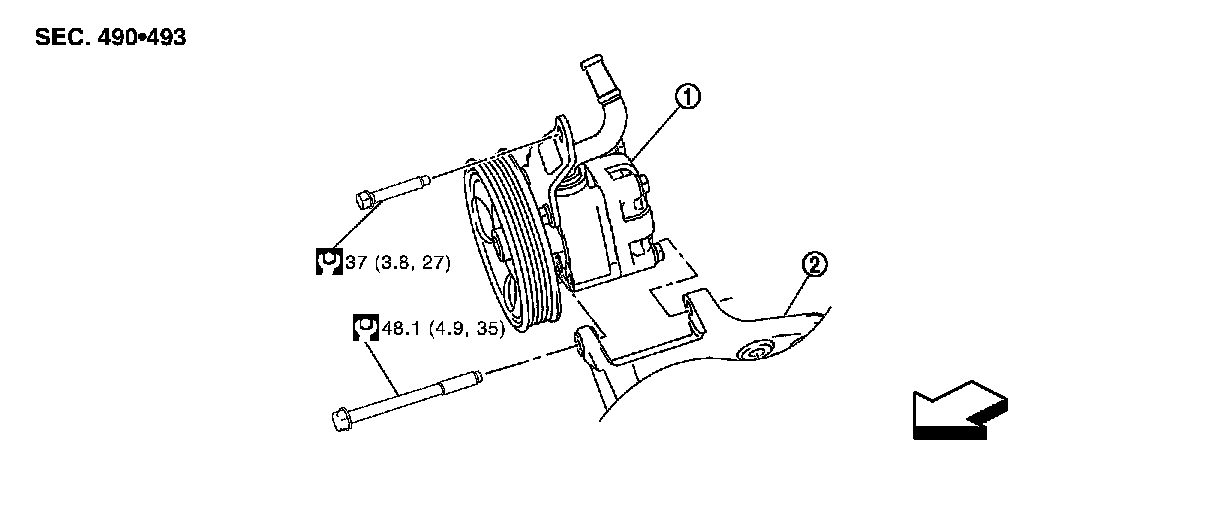

REMOVAL
DISASSEMBLY
