IPDM E/R

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)


Reference Value

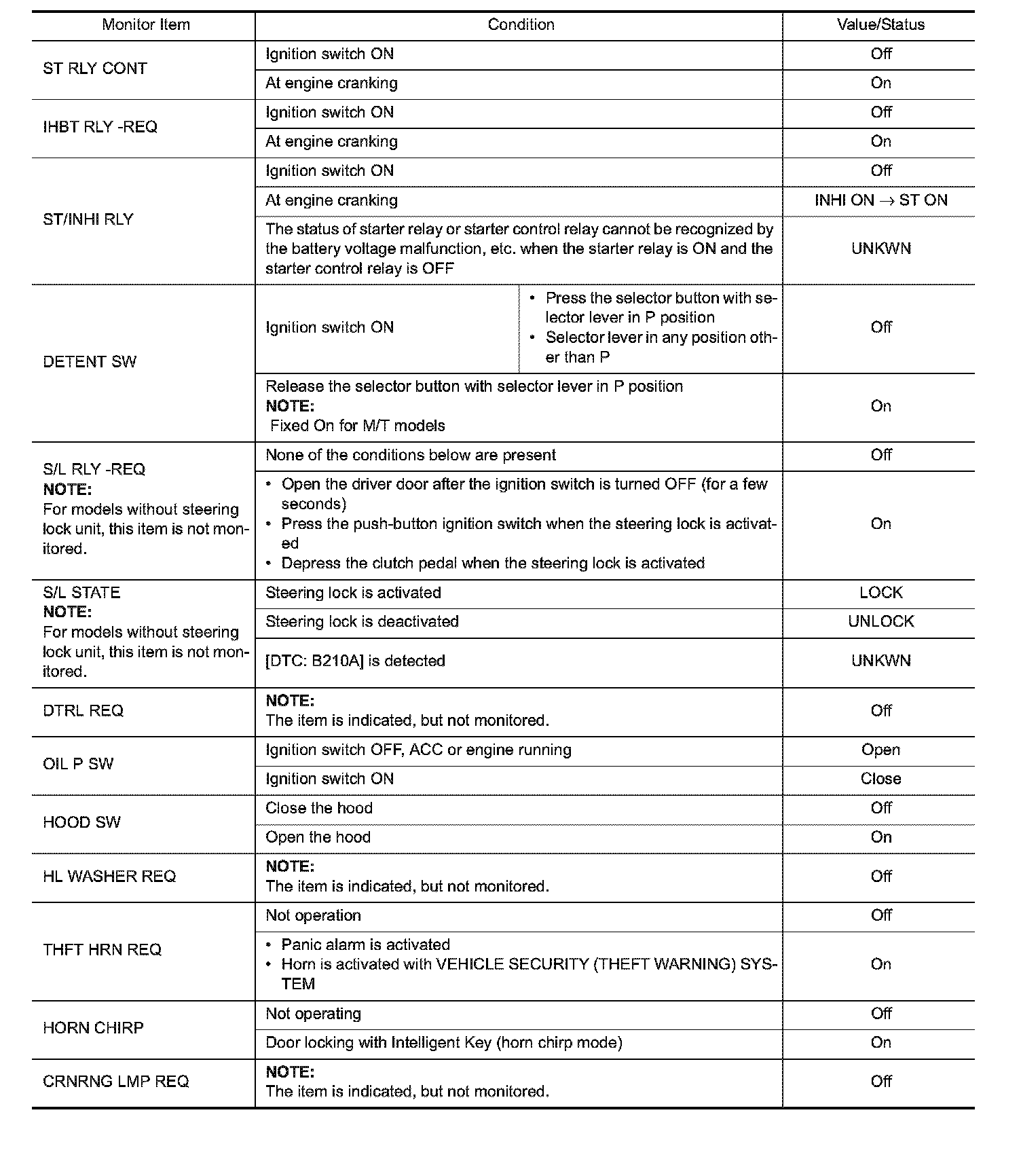

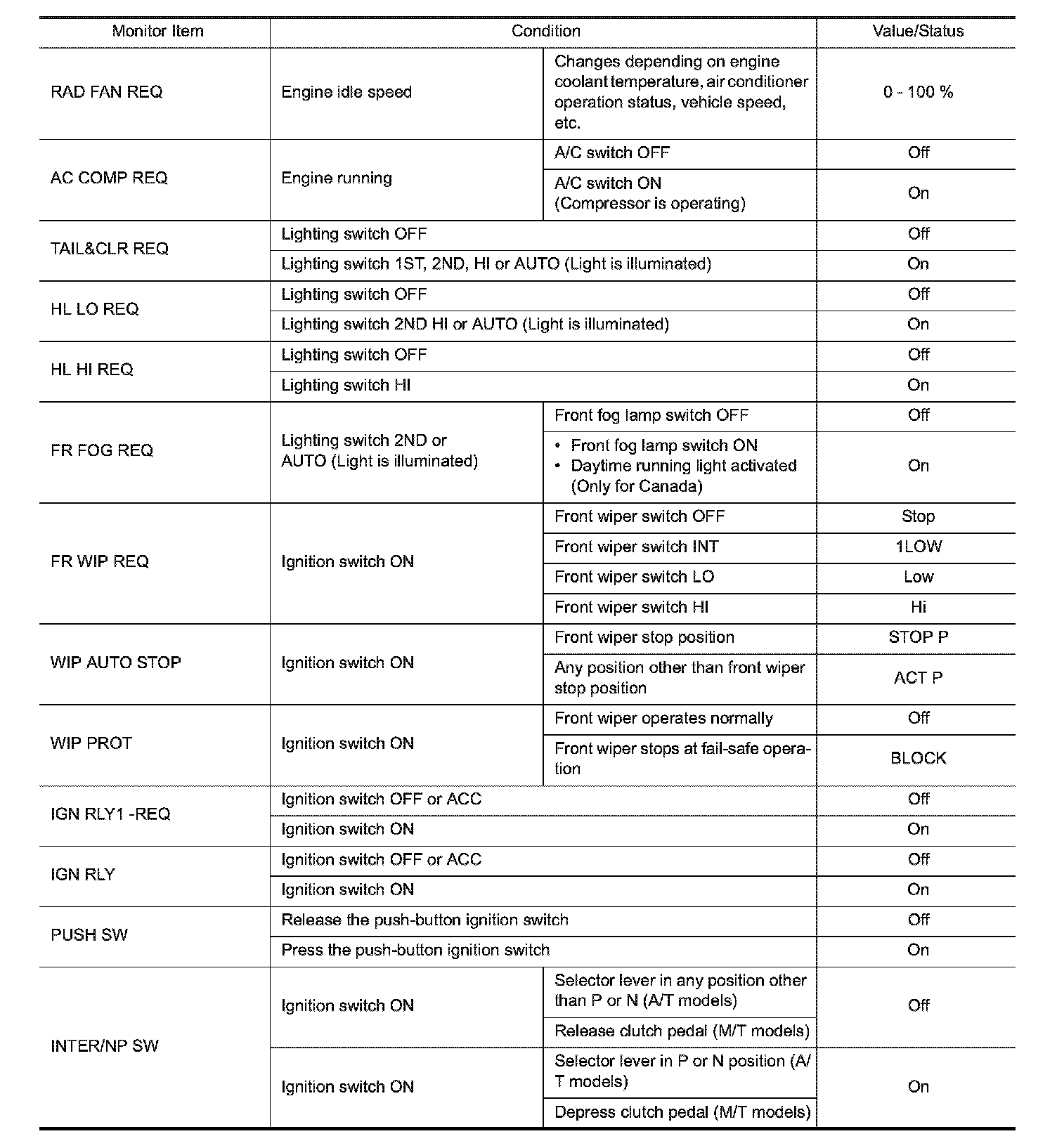

VALUES ON THE DIAGNOSIS TOOL

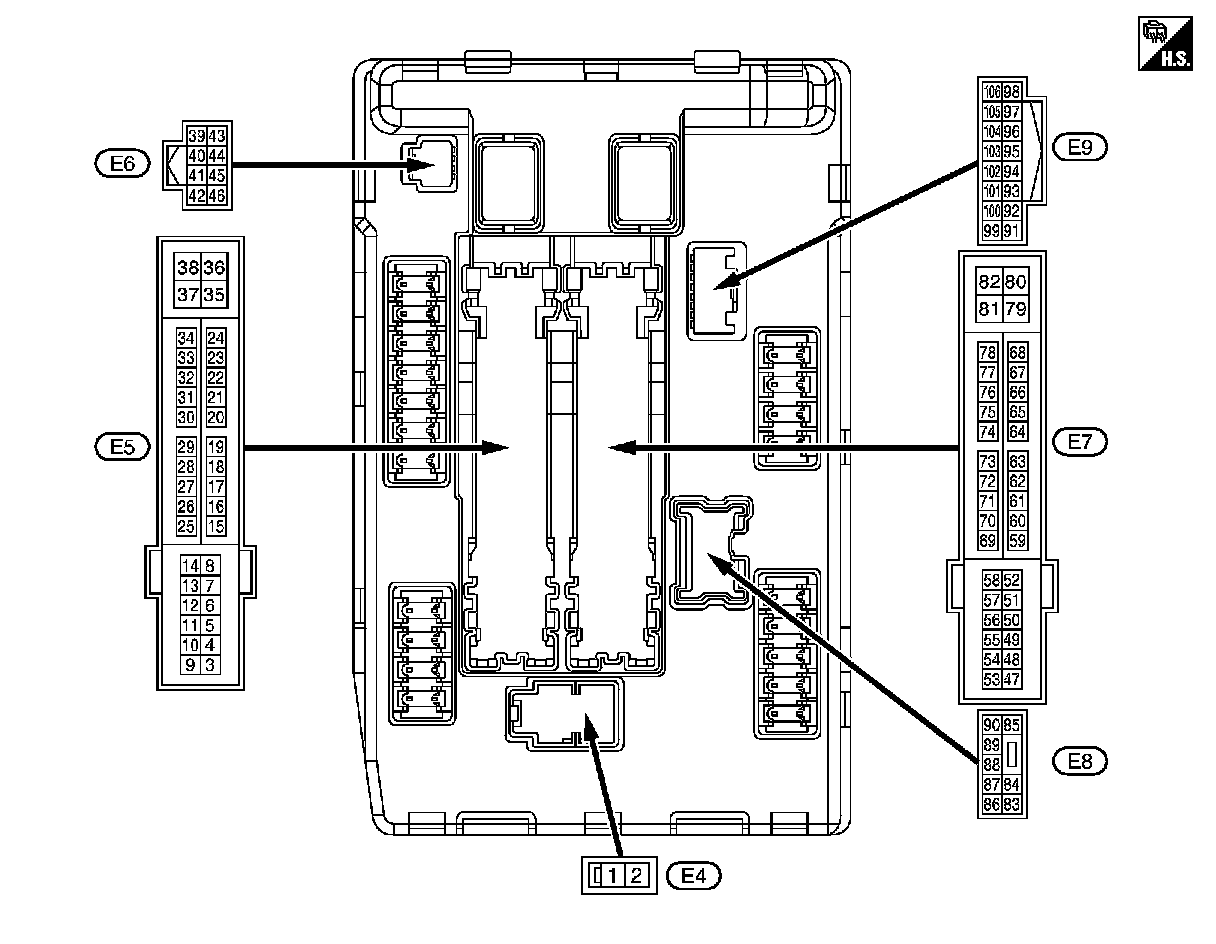

TERMINAL LAYOUT

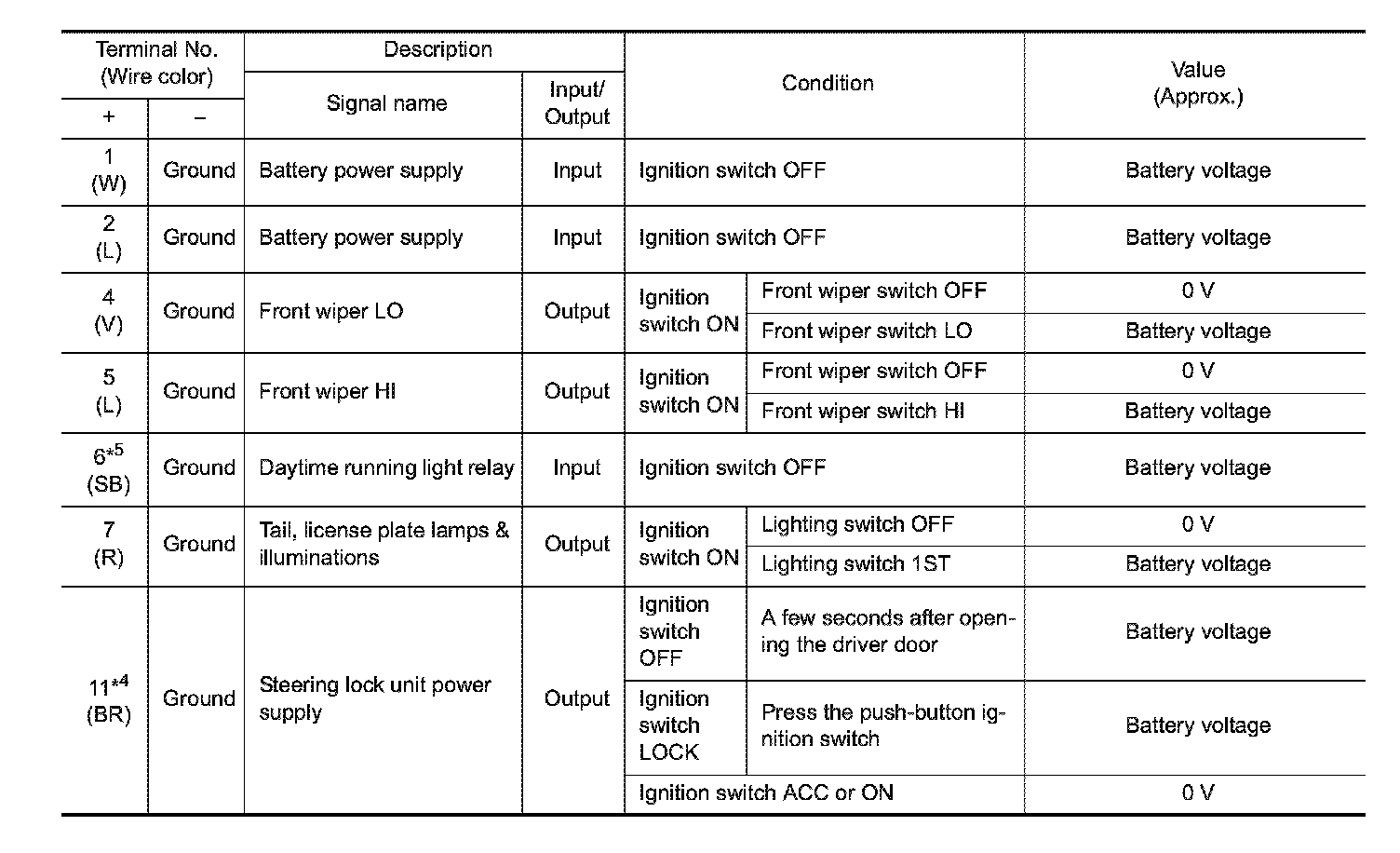

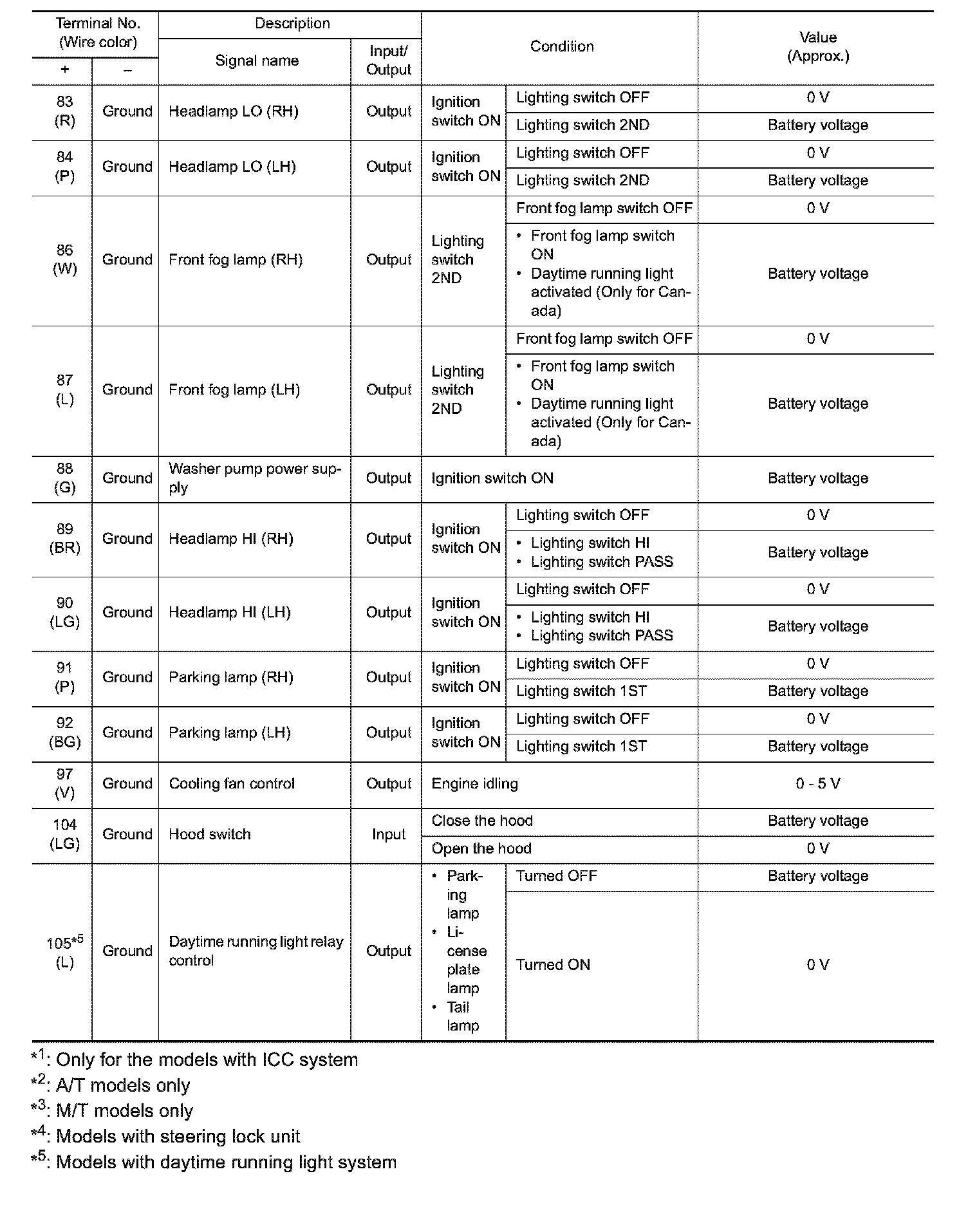

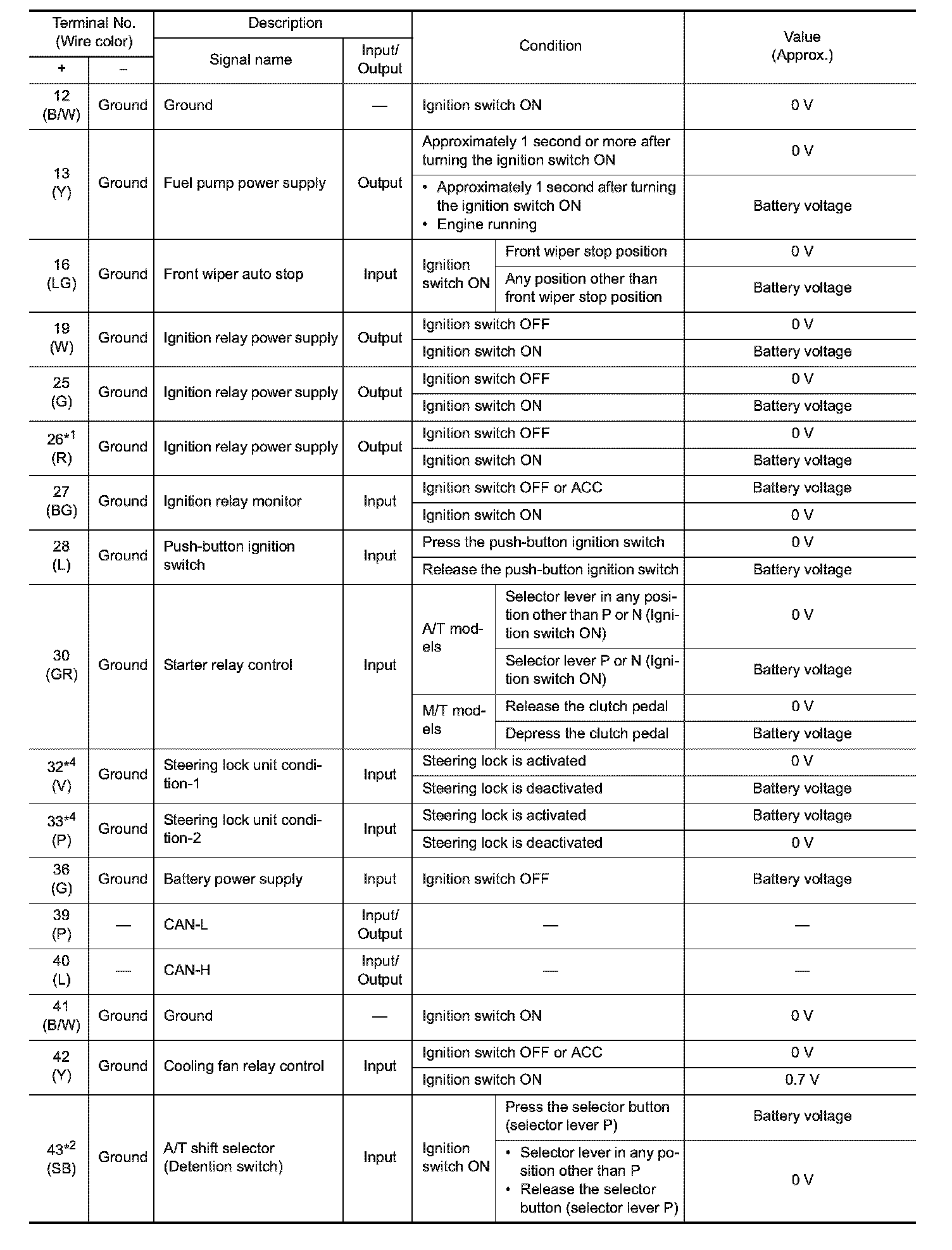

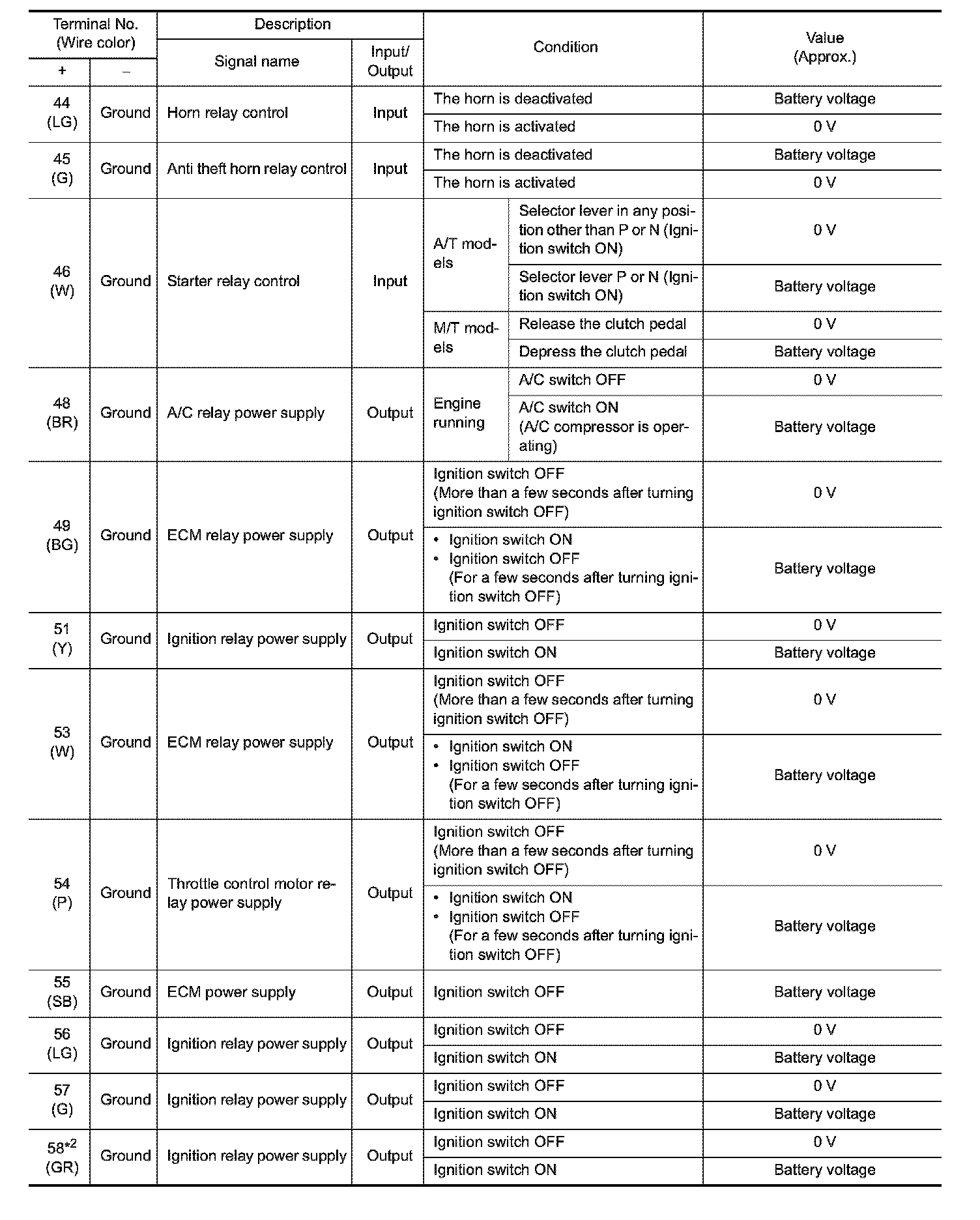

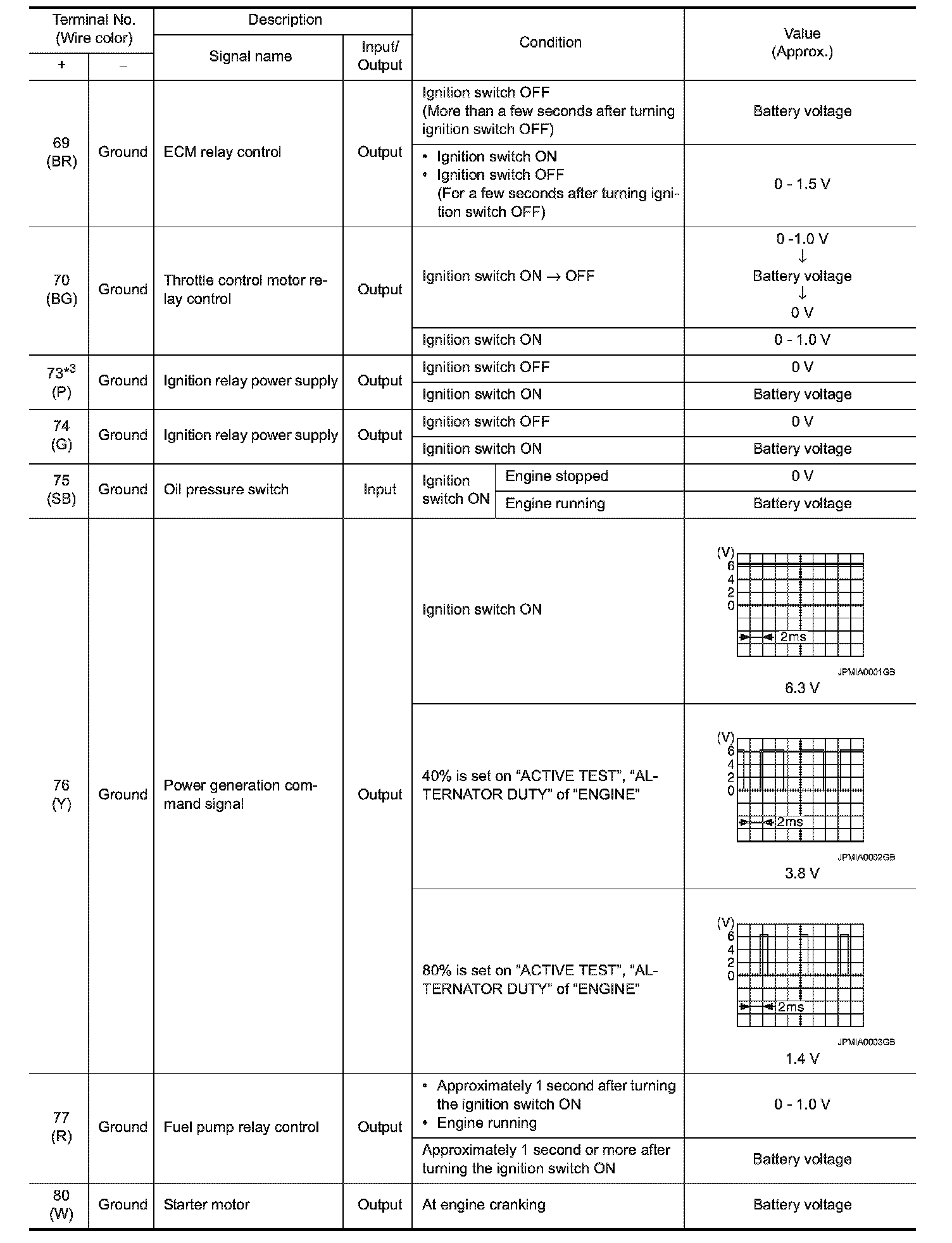

PHYSICAL VALUES

























*1: Only for the models with ICC system
*2: A/T models only
*3: M/T models only
*4: Models with steering lock unit
*5: Models with daytime running light system
