Removal And Installation

BATTERY TERMINAL WITH FUSIBLE LINK


Removal and Installation


REMOVAL
1. Remove battery cover.
2. Disconnect the battery cable from the negative terminal.
3. Remove cover of battery positive terminal.

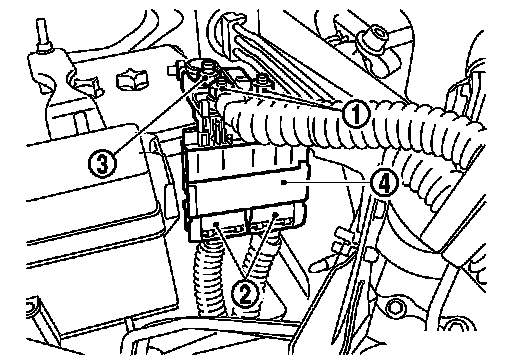

4. Remove harness mounting nuts (1) to disconnect harness connector (2).
5. Remove fusible link holder mounting nut (3) to remove battery terminal with fusible link (4).

INSTALLATION
Install in the reverse order of removal.

Harness mounting nut
Tightening Torque: 13.5 Nm (1.4 kg-m, 10 ft-lb)
Fusible link holder mounting nut
Tightening Torque: 13.5 Nm (1.4 kg-m, 10 ft-lb)
