Accessory Power Supply Fuse No. 20





POWER SUPPLY ROUTING CIRCUIT

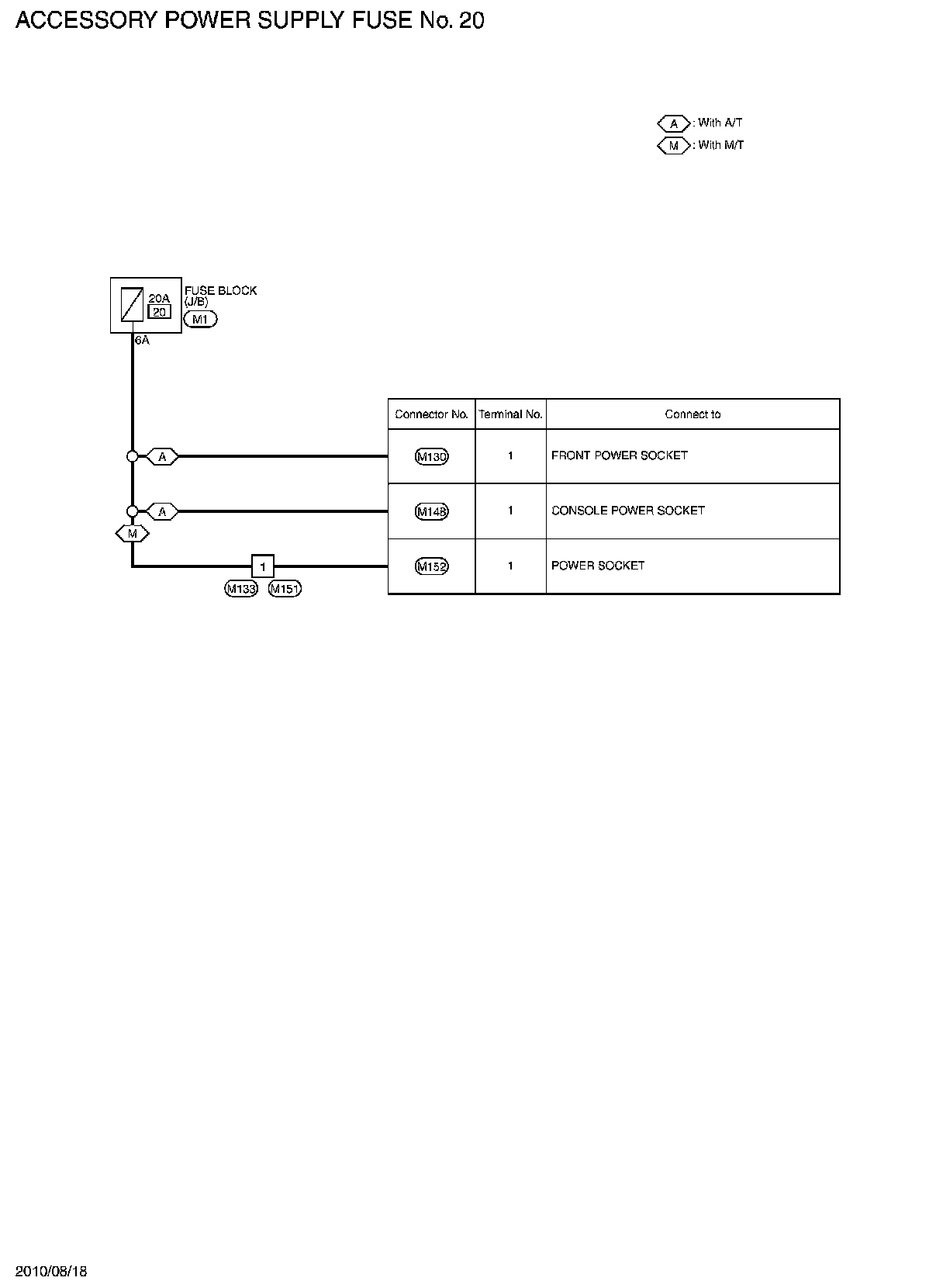

Wiring Diagram - ACCESSORY POWER SUPPLY FUSE No. 20 -
