Removal and Installation

ALTERNATOR


Removal and Installation


REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove engine front undercover, using power tools.
3. Remove radiator cooling fan assembly. Exploded View.
4. Remove drive belt. Removal And Installation.

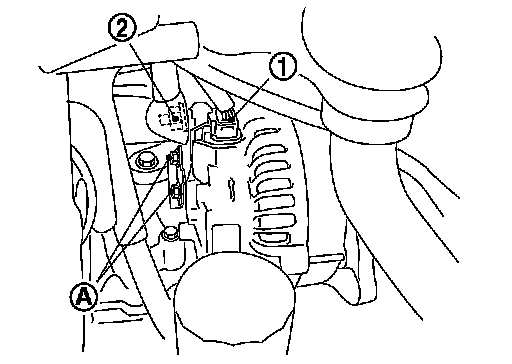

5. Disconnect alternator connector (1).
6. Remove "B" terminal nut (2).
7. Remove the harness bracket bolts (A).





8. Remove oil pressure switch harness clip (C) from alternator stay
(1).
9. Disconnect oil pressure switch connector (D) and oil temperature sensor connector (E).
10. Remove alternator mounting bolt (B) and alternator stay mounting bolt (F) using power tools, then remove alternator stay.
11. Remove alternator mounting bolt (A), using power tools.
12. Remove alternator assembly downward from the vehicle.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
Be sure to tighten "B" terminal nut carefully.
- Install alternator, and check tension of belt. Procedures.
- For this model, the power generation voltage variable control system that controls the power generation voltage of the alternator has been adopted. Therefore, the power generation voltage variable control system operation inspection should be performed after replacing the alternator, and then make sure that the system operates normally. Power Generation Voltage Variable Control System Operation Inspection.
