Tightening Torque
Intake manifold
1st step 7.4 Nm (0.75 kg-m, 5 ft-lb)
2nd step and after 25.5 Nm (2.6 kg-m, 19 ft-lb)
Stud bolts 10.8 Nm (1.1 kg-m, 8 ft-lb)
Intake collector 19.6 Nm (2.0 kgf-m, 14 ft lb)
Stud bolts 10.8 Nm (1.1 kg-m, 8 ft-lb)

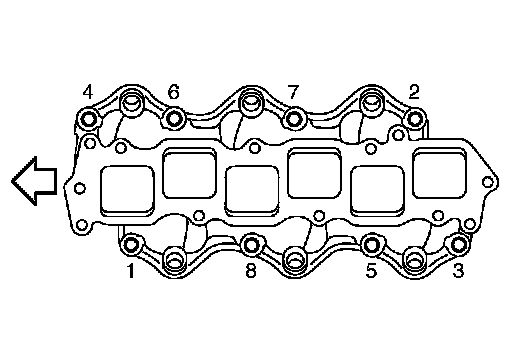

Intake manifold
1st step 7.4 Nm (0.75 kg-m, 5 ft-lb)
2nd step and after 25.5 Nm (2.6 kg-m, 19 ft-lb)
Stud bolts 10.8 Nm (1.1 kg-m, 8 ft-lb)

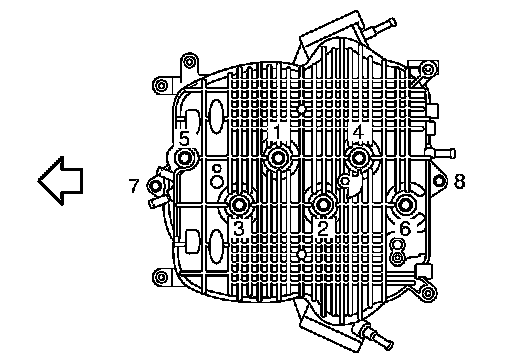

Intake collector 19.6 Nm (2.0 kgf-m, 14 ft lb)
Stud bolts 10.8 Nm (1.1 kg-m, 8 ft-lb)
