Crankshaft Main Bearing

SERVICE DATA AND SPECIFICATIONS (SDS)

Main Bearing

MAIN BEARING





UNDERSIZE





MAIN BEARING OIL CLEARANCE

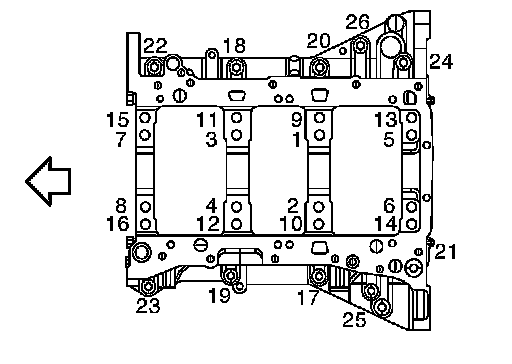

LOWER CYLINDER BLOCK BOLTS





Bolts No. 17 to 26 25.0 Nm (2.6 kg-m, 18 ft-lb)
Repeat above step





Bolts No. 1 to 16 35.3 Nm (3.6 kg-m, 26 ft-lb)
Bolts No. 1 to 16 90°

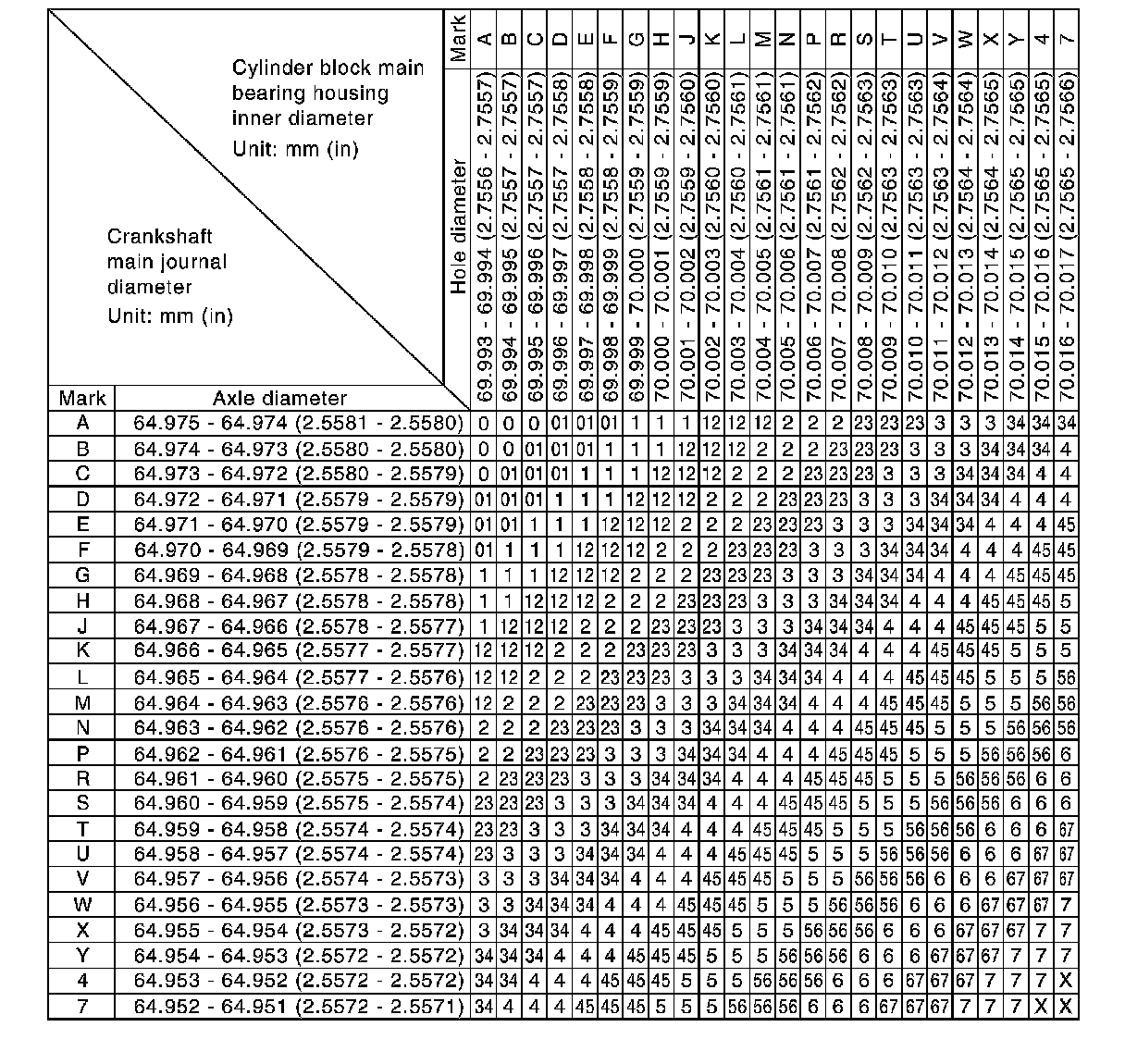

MAIN BEARING SELECTION TABLE
