Home
>>
Infiniti
>>
2011
>>
G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Clutch, M/T
>>
Tightening Torque
Tightening Torque

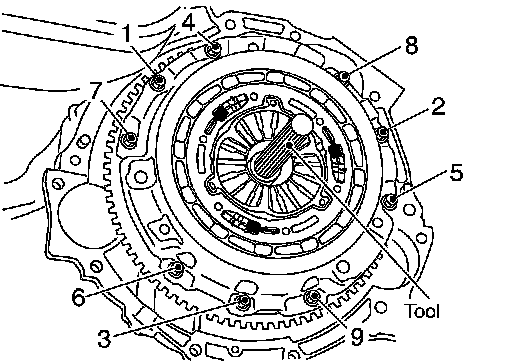

Pressure Plate
A
15 Nm (1.5 kgf-m, 11 ft lb)
B
39 Nm (4.0 kgf-m, 29 ft lb)
