Blower Motor Switch: Description and Operation





SWITCHES AND THEIR CONTROL FUNCTION

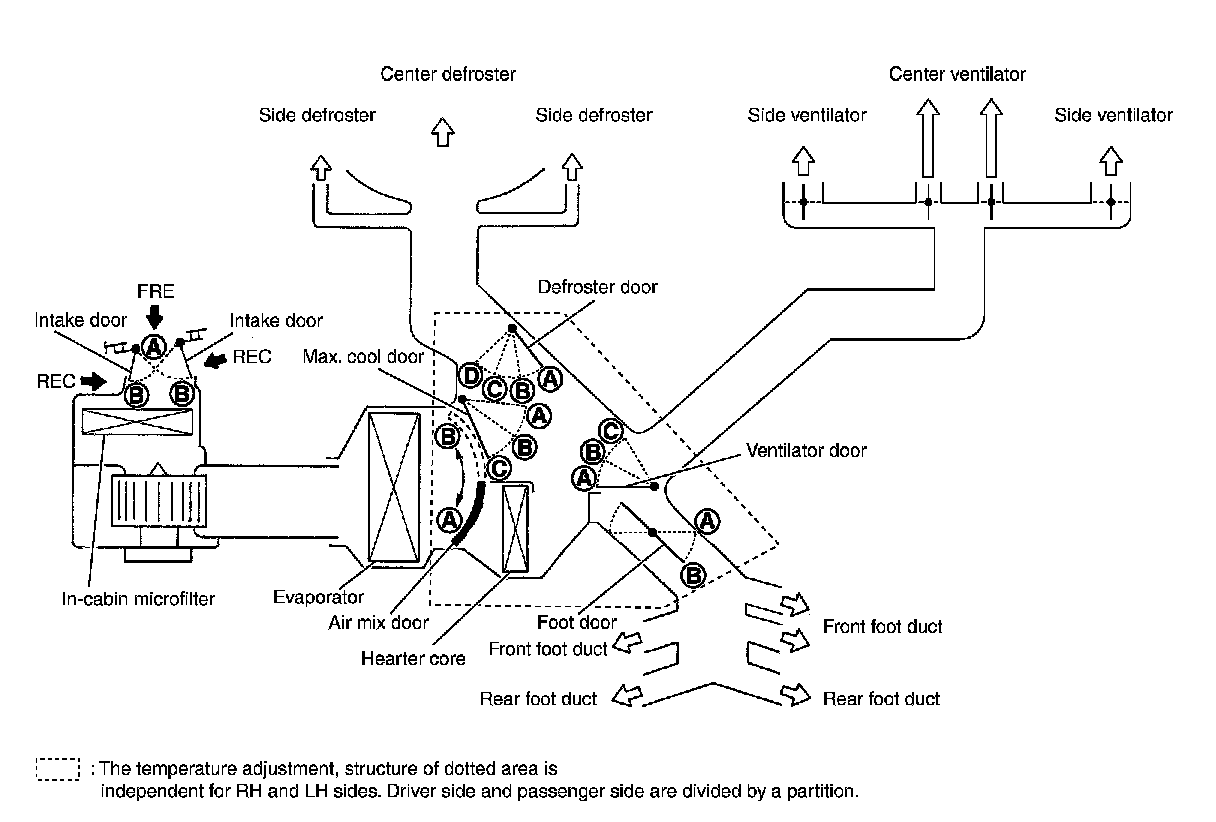

System Description

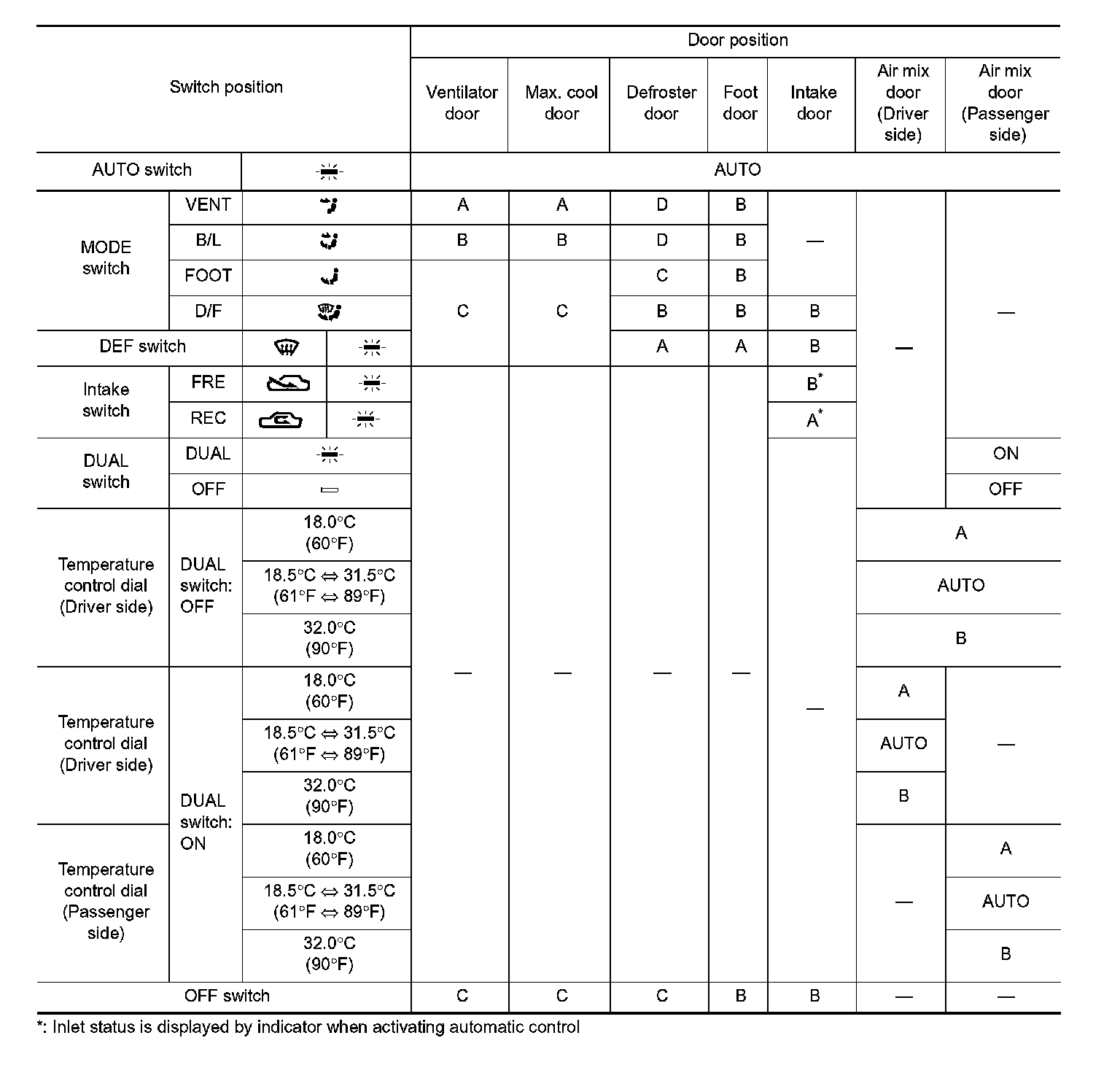

WITHOUT ACCS

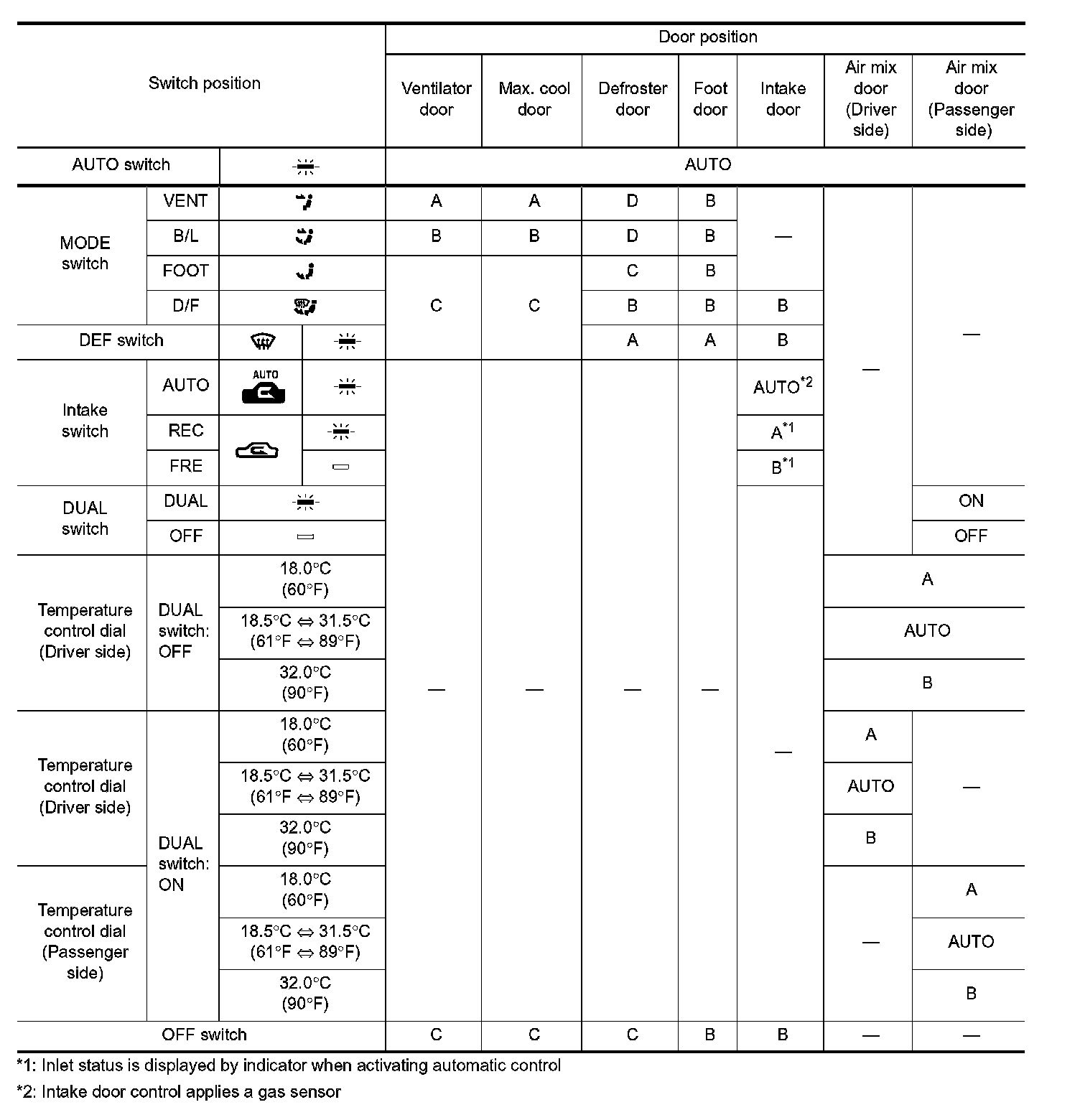

WITH ACCS
