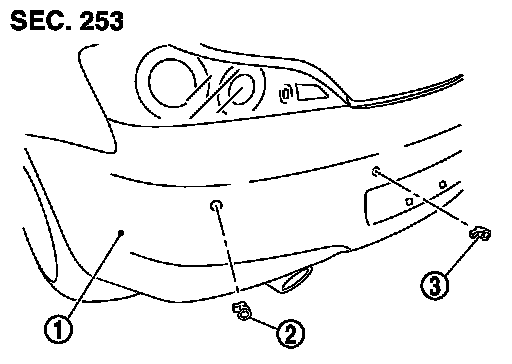

Exploded View





SONAR SENSOR


Exploded View







1. Rear bumper
2. Corner sensor rear
3. Center sensor rear
