Removal And Installation

SATELLITE SENSOR


Removal and Installation


WARNING:
- Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or more.
- Never use the air tools or the electric tools for servicing.

REMOVAL
1. Remove the front seat belt retractor. Removal And Installation.
2. Remove the satellite sensor fixing nuts.
3. Disconnect the harness satellite sensor connector, and then remove the satellite sensor.

CAUTION:

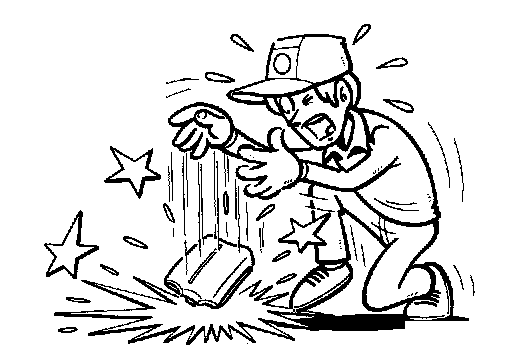

- Never impact the satellite sensor.
- Replace the satellite sensor if it has been dropped or sustained an impact.
- Replace the satellite sensor of deployed side air bag module and deployed door-mounted curtain air bag module.

INSTALLATION
Note the following items, and then install in the reverse order of removal.

CAUTION:
- Never use the old fixing nuts after removal, replace with the new nuts.
- Never damage the harness while installing.
- If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunctioning parts, reset the memory using self-diagnosis or CONSULT. Scan Tool Testing and Procedures, "CONSULT-III
Function".
- After the work is completed, check that no system malfunction is detected by air bag warning lamp.
