Pinout Values and Diagnostic Parameters

PRE-CRASH SEAT BELT CONTROL UNIT

Reference Value

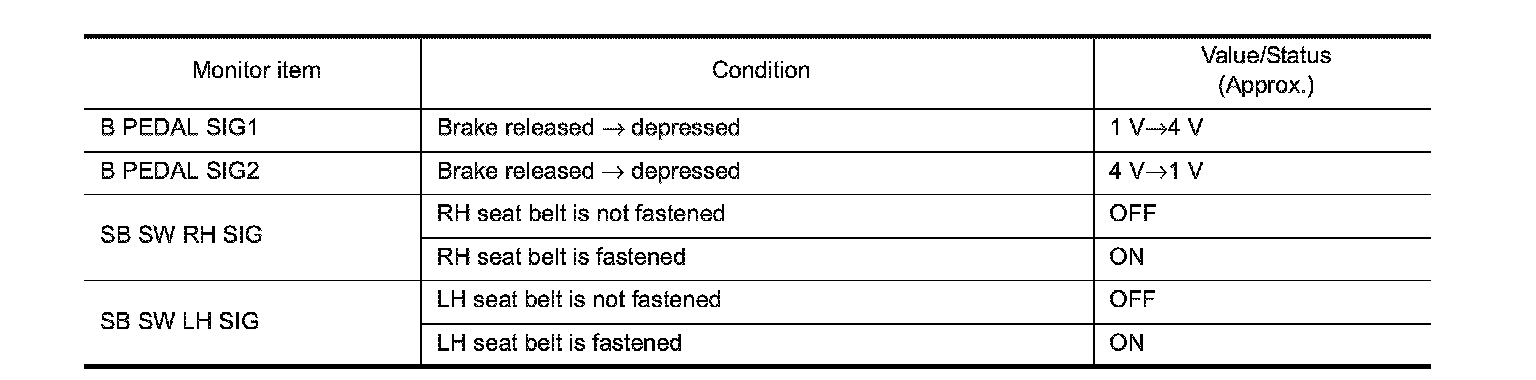

VALUES ON THE DIAGNOSIS TOOL
CONSULT-III MONITOR ITEM

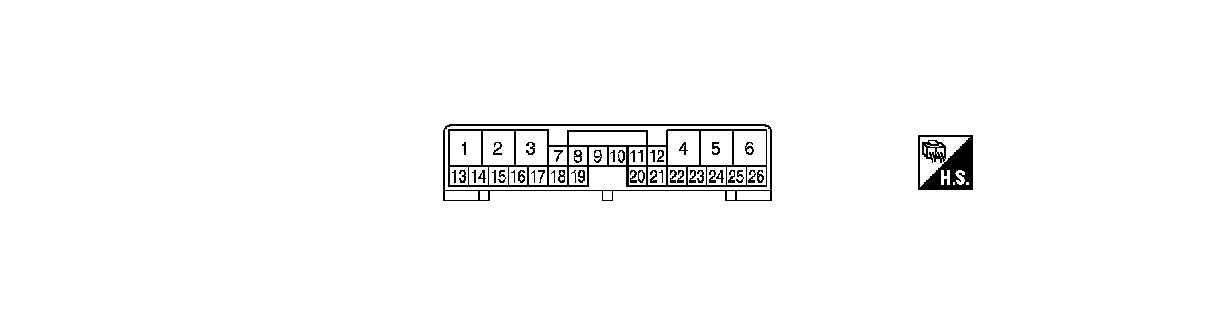

TERMINAL LAYOUT

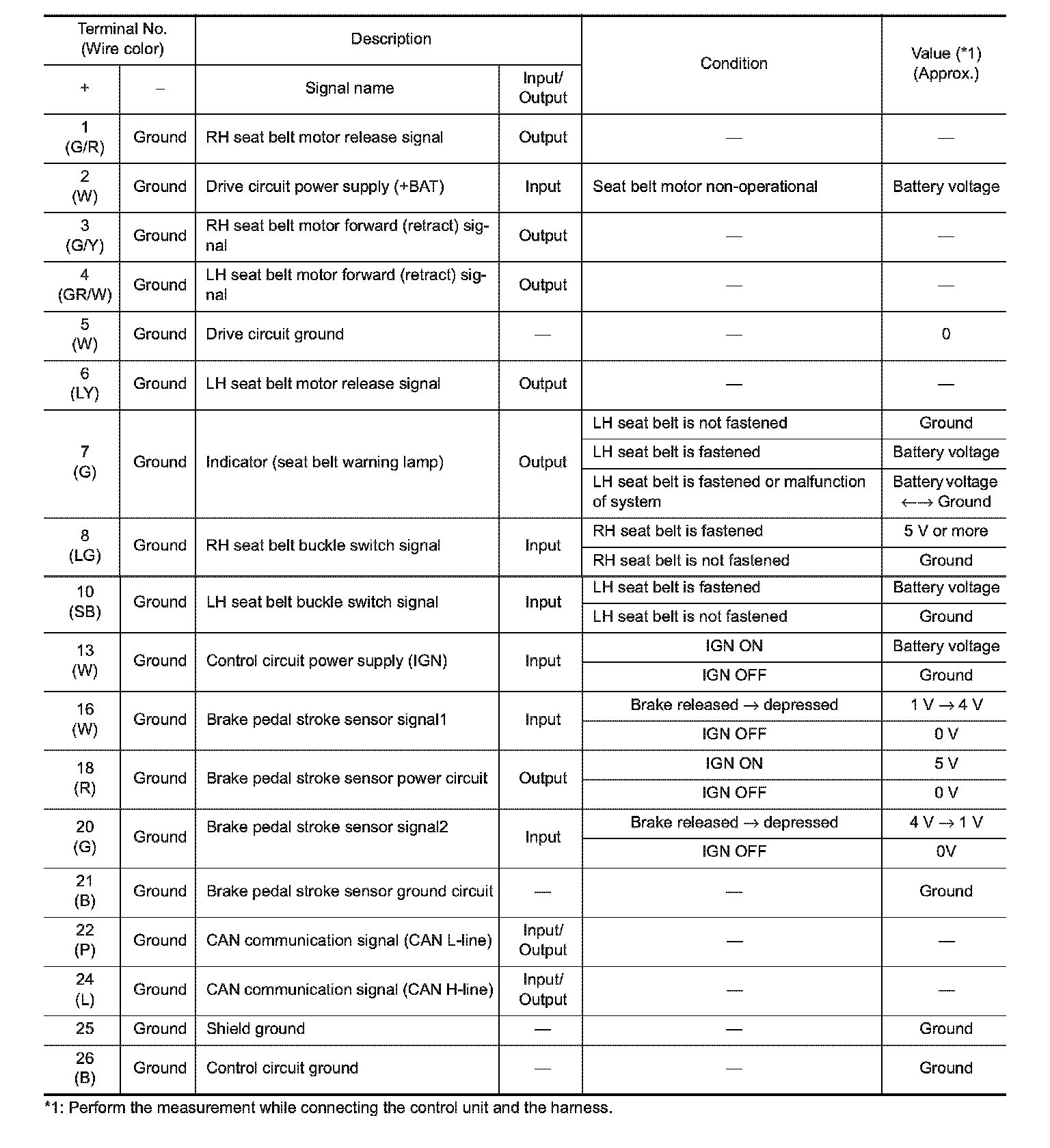

PHYSICAL VALUES
