AUTOMATIC DRIVE POSITIONER CONTROL UNIT


Removal and Installation


REMOVAL

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.





1. Remove instrument driver lower panel. Removal And Installation A/T Models, "A/T
Removal And Installation M/T Models, "M/ T MODELS : Removal and Installation" (M/T models).

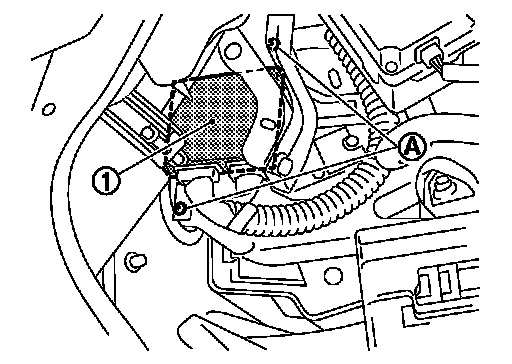

2. Remove screws (A).
3. Remove automatic drive positioner control unit (1).

INSTALLATION
Install in reverse order of removal.

CAUTION:
Be sure to clump the harness to the right place.
