Convertible Top Control Module: Service and Repair

RETRACTABLE HARD TOP CONTROL UNIT


Removal and Installation


REMOVAL
1. Remove rear side finisher LH. Removal And Installation.

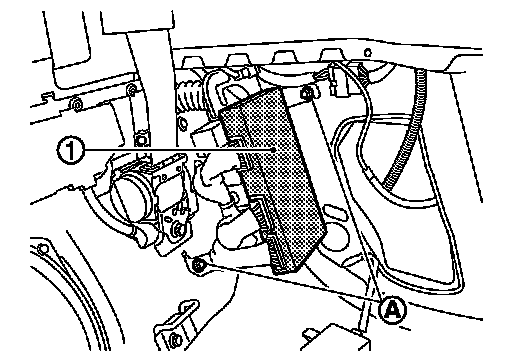

2. Remove bolts (A).
3. Remove retractable hard top control unit (1) and disconnect the connector.

INSTALLATION
Install in the reverse order of removal.

NOTE:
After installing the retractable hard top control unit, perform additional service when replacing control unit. Work Procedure.
