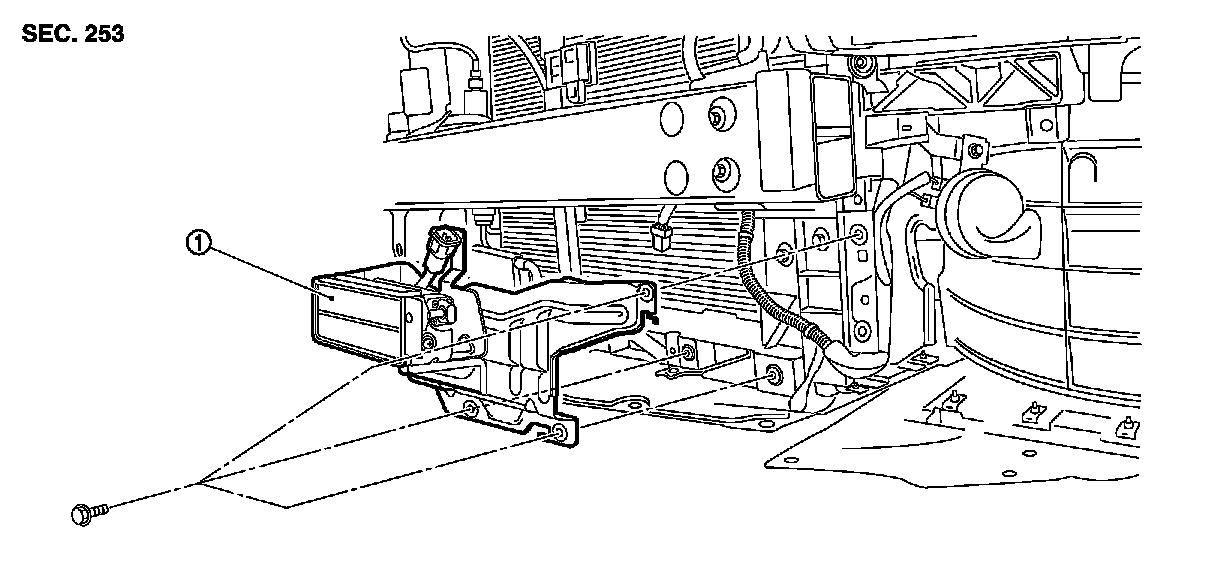

Exploded View





ICC SENSOR INTEGRATED UNIT


Exploded View


CAUTION:
Always perform the laser beam aiming adjustment and check the operation after the replacement, removal and installation of ICC sensor integrated unit.
