With ICC
SHIFT LOCK SYSTEM-WITH ICC
Component Function Check
1.CHECK A/T SHIFT LOCK OPERATION (STEP 1)
1. Turn ignition switch ON.
2. Shift the selector lever to the "P" position.
3. Attempt to shift the selector lever to any other position with the brake pedal released.
Can the selector lever be shifted to any other position?
YES - Go to SEE Diagnosis Procedure.
NO - GO TO 2.
2.CHECK A/T SHIFT LOCK OPERATION (STEP 2)
Attempt to shift the selector lever to any other position with the brake pedal depressed.
Can the selector lever be shifted to any other position?
YES - INSPECTION END
NO - Go to SEE Diagnosis Procedure.
Diagnosis Procedure
1.CHECK POWER SOURCE (PART 1)
1. Turn ignition switch OFF.
2. Disconnect shift lock relay.

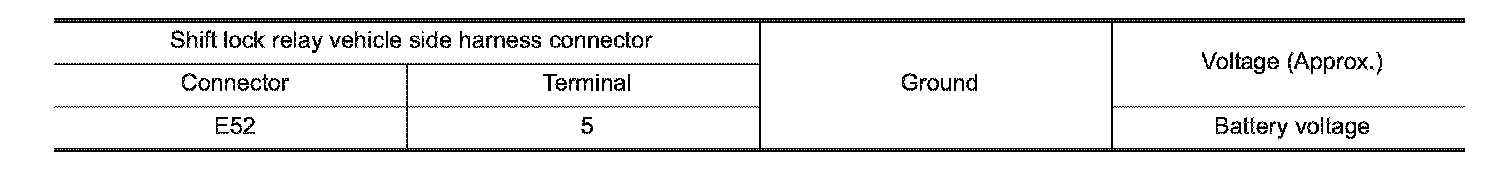

3. Check voltage between shift lock relay vehicle side harness connector terminal and ground.
Is the inspection result normal?
YES - GO TO 2.
NO - GO TO 10.
2.CHECK GROUND CIRCUIT (PART 1)

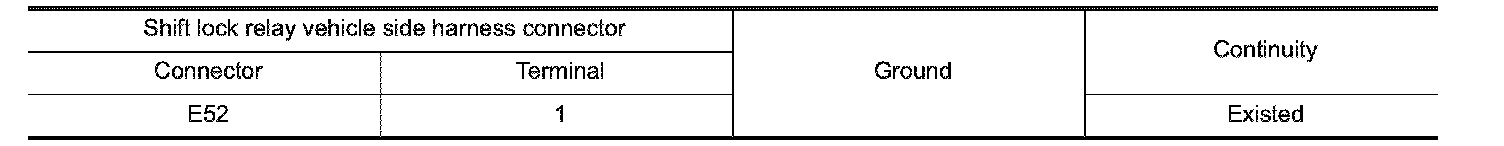

Check continuity between shift lock relay vehicle side harness connector terminal and ground.
Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace damaged parts.
3.CHECK SHIFT LOCK RELAY
Check shift lock relay. SEE Component Inspection (Shift Lock Relay).
Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace damaged parts.
4.CHECK POWER SOURCE (PART 2)
1. Turn ignition switch ON.

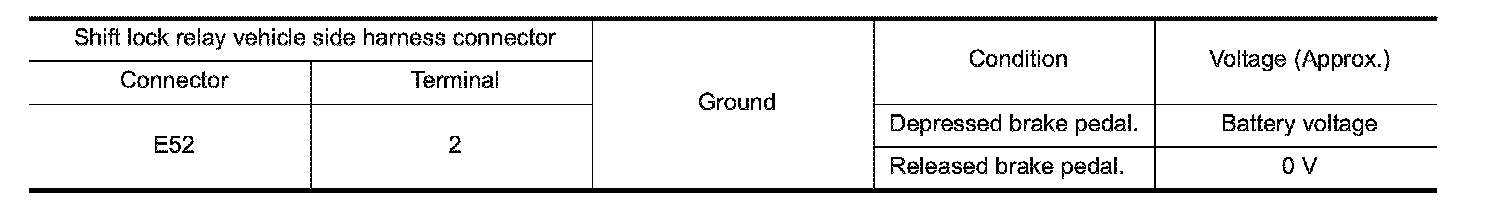

2. Check voltage between shift lock relay vehicle side harness connector terminal and ground.
Is the inspection result normal?
YES - GO TO 5.
NO - GO TO 20.
5.CHECK HARNESS BETWEEN SHIFT LOCK RELAY AND A/T SHIFT SELECTOR (PART 1)
1. Turn ignition switch OFF.
2. Disconnect A/T shift selector connector.

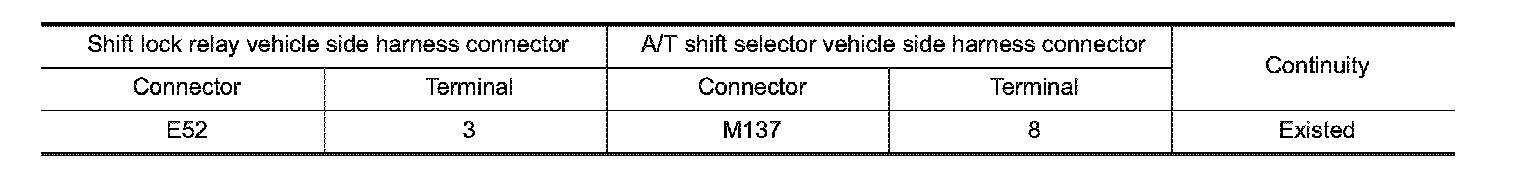

3. Check continuity between shift lock relay vehicle side harness connector terminal and A/T shift selector vehicle side harness connector terminal
Is the inspection result normal?
YES - GO TO 6.
NO - Repair or replace damaged parts.
6.CHECK HARNESS BETWEEN SHIFT LOCK RELAY AND A/T SHIFT SELECTOR (PART 2)

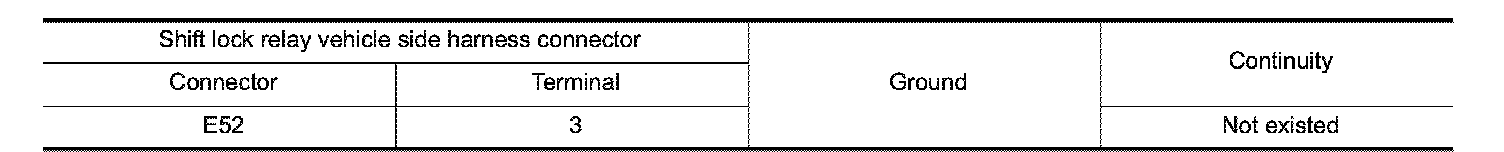

Check continuity between shift lock relay vehicle side harness connector terminal and ground.
Is the inspection result normal?
YES - GO TO 7.
NO - Repair or replace damaged parts.
7.CHECK GROUND CIRCUIT (PART 2)

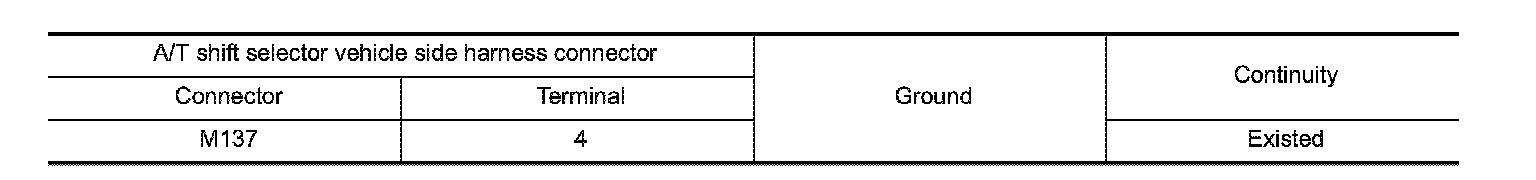

Check continuity between A/T shift selector vehicle side harness connector terminal and ground.
Is the inspection result normal?
YES - GO TO 8.
NO - Repair or replace damaged parts.
8.CHECK HARNESS BETWEEN A/T SHIFT SELECTOR AND SHIFT LOCK UNIT
1. Disconnect shift lock unit connector.

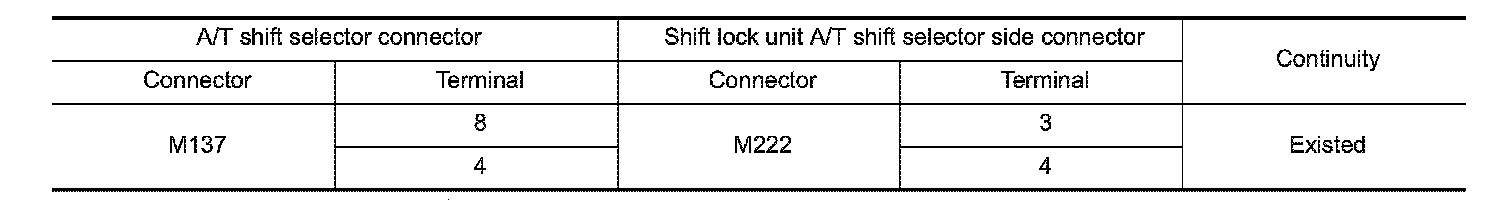

2. Check continuity between A/T shift selector connector terminals and shift lock unit A/T shift selector side connector terminals.
Is the inspection result normal?
YES - GO TO 9.
NO - Repair or replace damaged parts.
9.CHECK SHIFT LOCK UNIT
1. Remove shift lock unit. Exploded View.
2. Check shift lock unit. SEE Component Inspection (Shift Lock Solenoid).
Is the inspection result normal?
YES - Check intermittent incident. Intermittent Incident.
NO - Replace shift lock unit. Exploded View.
10.CHECK POWER SOURCE (PART 3)
1. Disconnect stop lamp switch connector.
2. Check voltage between stop lamp switch vehicle side harness connector terminal and ground.
Is the inspection result normal?
YES - GO TO 15.
NO - GO TO 11.
11.CHECK HARNESS BETWEEN FUSE BLOCK (J/B) AND STOP LAMP SWITCH (PART 1)
1. Disconnect fuse block (J/B) connector.

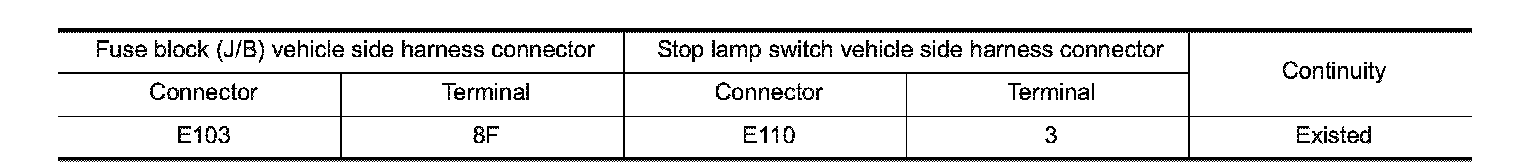

2. Check continuity between fuse block (J/B) vehicle side harness connector terminal and stop lamp switch vehicle side harness connector terminal.
Is the inspection result normal?
YES - GO TO 12.
NO - Repair or replace damaged parts.
12.CHECK HARNESS BETWEEN FUSE BLOCK (J/B) AND STOP LAMP SWITCH (PART 2)

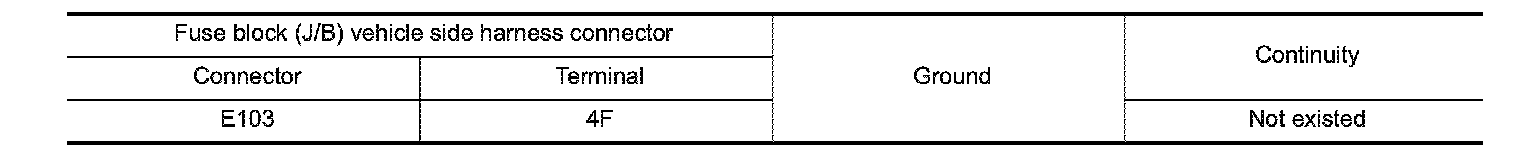

Check continuity between fuse block (J/B) vehicle side harness connector terminal and ground.
Is the inspection result normal?
YES - GO TO 13.
NO - Repair or replace damaged parts.
13.DETECT MALFUNCTIONING ITEM (PART 1)
Check the following.
- Harness for short or open between battery and fuse block (J/B). Battery Power Supply, "Wiring Diagram - BATTERY
POWER SUPPLY -".
- Battery
- 10A fuse [No.7, located in the fuse block (J/B)]. Fuse Block - Junction Box (J/B).
- Fuse block (J/B)
Is the inspection result normal?
YES - GO TO 14.
NO - Repair or replace damaged parts.
14.CHECK DTC OF ICC
With CONSULT-III
Perform "Self Diagnostic Results" in "ICC".
Is any malfunction detected?
YES - Check the DTC detected item. Testing and Inspection.
NO - Check intermittent incident. Intermittent Incident.
15.CHECK STOP LAMP SWITCH (PART 1)
Check stop lamp switch. SEE Component Inspection (Stop Lamp Switch).
Is the inspection result normal?
YES - GO TO 18.
NO - GO TO 16.
16.CHECK INSTALLATION POSITION OF STOP LAMP SWITCH
Adjust stop lamp switch position. Inspection and Adjustment.
- GO TO 17.
17.CHECK STOP LAMP SWITCH (PART 2)
Check stop lamp switch. SEE Component Inspection (Stop Lamp Switch).
Is the inspection result normal?
YES - INSPECTION END
NO - Replace stop lamp switch. Exploded View.
18.CHECK HARNESS BETWEEN STOP LAMP SWITCH AND SHIFT LOCK RELAY (PART 1)

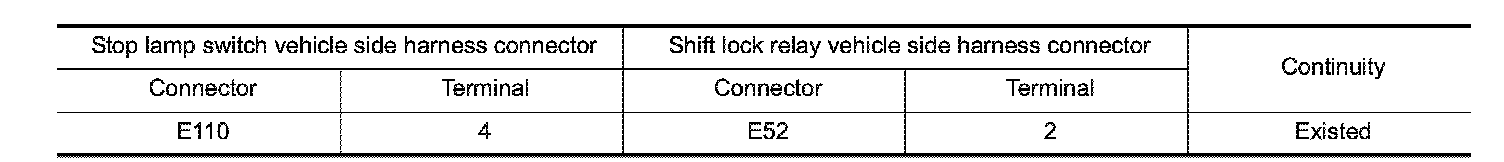

Check continuity between stop lamp switch vehicle side harness connector terminal and shift lock relay vehicle side harness connector terminal.
Is the inspection result normal?
YES - GO TO 19.
NO - Repair or replace damaged parts.
19.CHECK HARNESS BETWEEN STOP LAMP SWITCH AND SHIFT LOCK RELAY (PART 2)

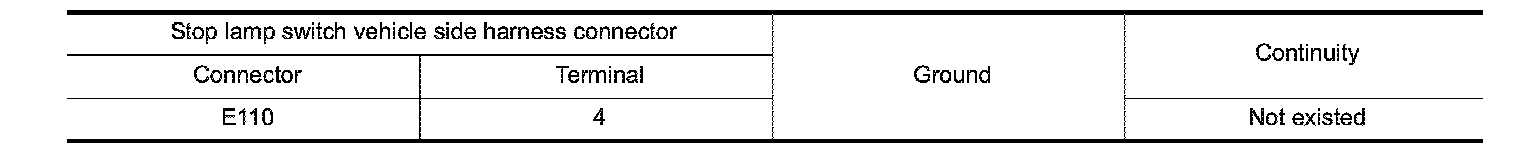

Check continuity between stop lamp switch vehicle side harness connector terminal and ground.
Is the inspection result normal?
YES - GO TO 14.
NO - Repair or replace damaged parts.
20.CHECK HARNESS BETWEEN FUSE BLOCK (J/B) AND SHIFT LOCK RELAY (PART 1)
1. Turn ignition switch OFF.
2. Disconnect fuse block (J/B) connector.

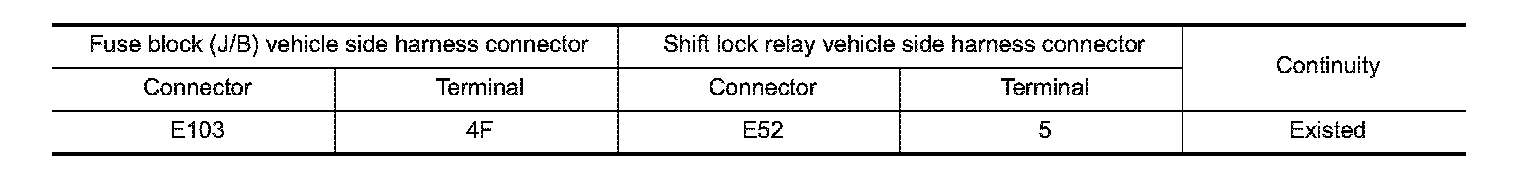

3. Check continuity between fuse block (J/B) vehicle side harness connector terminal and shift lock relay vehicle side harness connector terminal.
Is the inspection result normal?
YES - GO TO 21.
NO - Repair or replace damaged parts.
21.CHECK HARNESS BETWEEN FUSE BLOCK (J/B) AND SHIFT LOCK RELAY (PART 2)

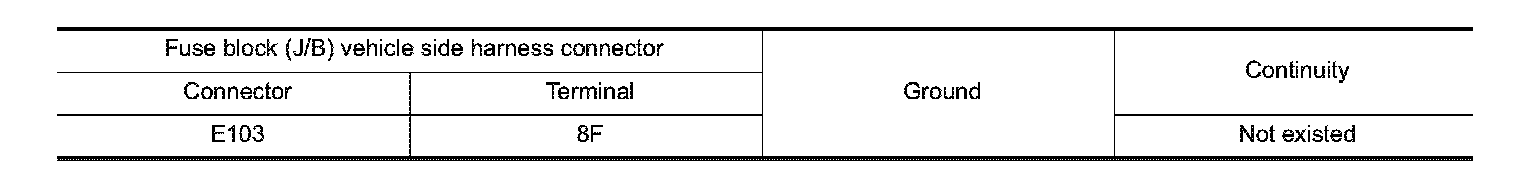

Check continuity between fuse block (J/B) vehicle side harness connector terminal and ground.
Is the inspection result normal?
YES - GO TO 22.
NO - Repair or replace damaged parts.
22.DETECT MALFUNCTIONING ITEM (PART 2)
Check the following.
- Harness for short or open between ignition switch and fuse block (J/B). .
- Ignition switch
- 10A fuse [No.3, located in the fuse block (J/B)]. Fuse Block - Junction Box (J/B).
- Fuse block (J/B)
Is the inspection result normal?
YES - Check intermittent incident. Intermittent Incident.
NO - Repair or replace damaged parts.
Component Inspection (Shift Lock Solenoid)
1.CHECK SHIFT LOCK SOLENOID

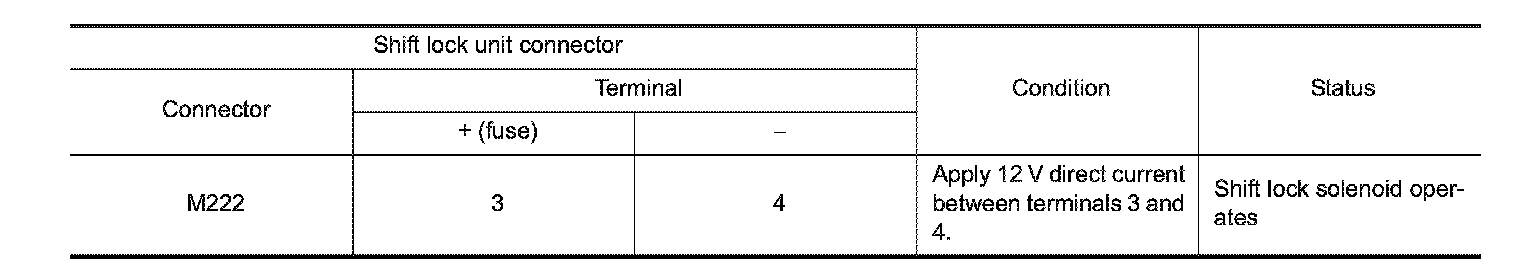

Apply voltage to terminals 3 and 4 of shift lock unit connector, and then check that shift lock solenoid is activated.
CAUTION:
Connect the fuse between the terminals when applying the voltage.
Can the lock plate be moved up and down?
YES - INSPECTION END
NO - Replace shift lock unit. Exploded View.
Component Inspection (Shift Lock Relay)
1.CHECK SHIFT LOCK RELAY

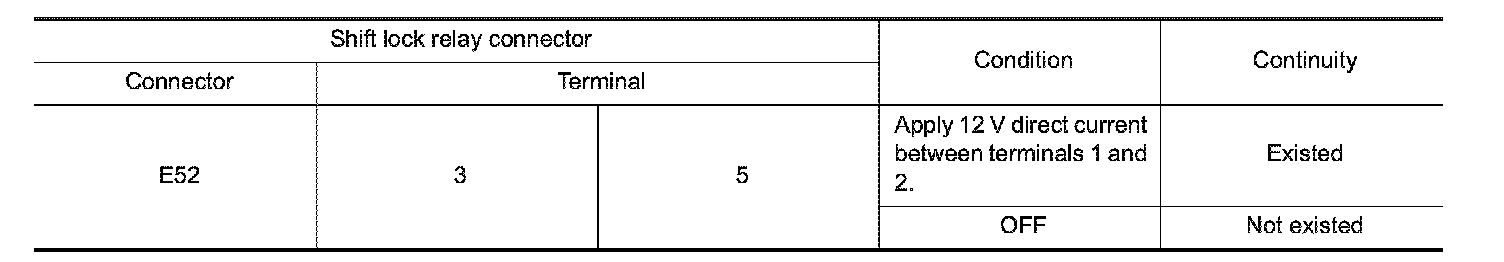

Check continuity between shift lock relay terminals.
CAUTION:
Connect the fuse between the terminals when applying the voltage.
Is the inspection result normal?
YES - INSPECTION END
NO - Replace shift lock relay.
Component Inspection (Stop Lamp Switch)
1.CHECK STOP LAMP SWITCH

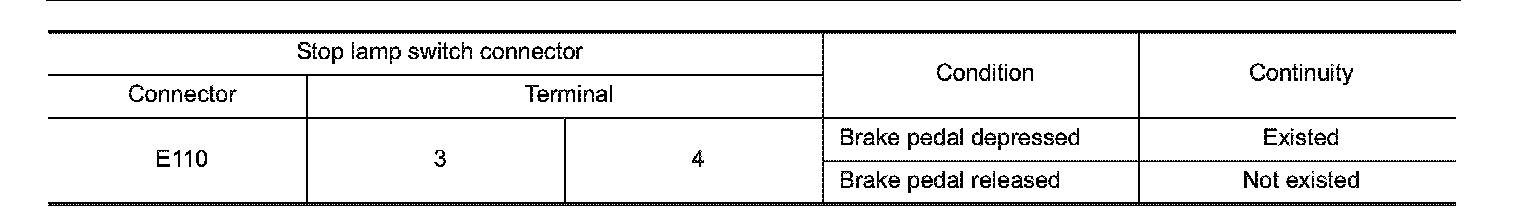

Check continuity between stop lamp switch connector terminals.
Is the inspection result normal?
YES - INSPECTION END
NO - Replace stop lamp switch. Exploded View.
