Exploded View

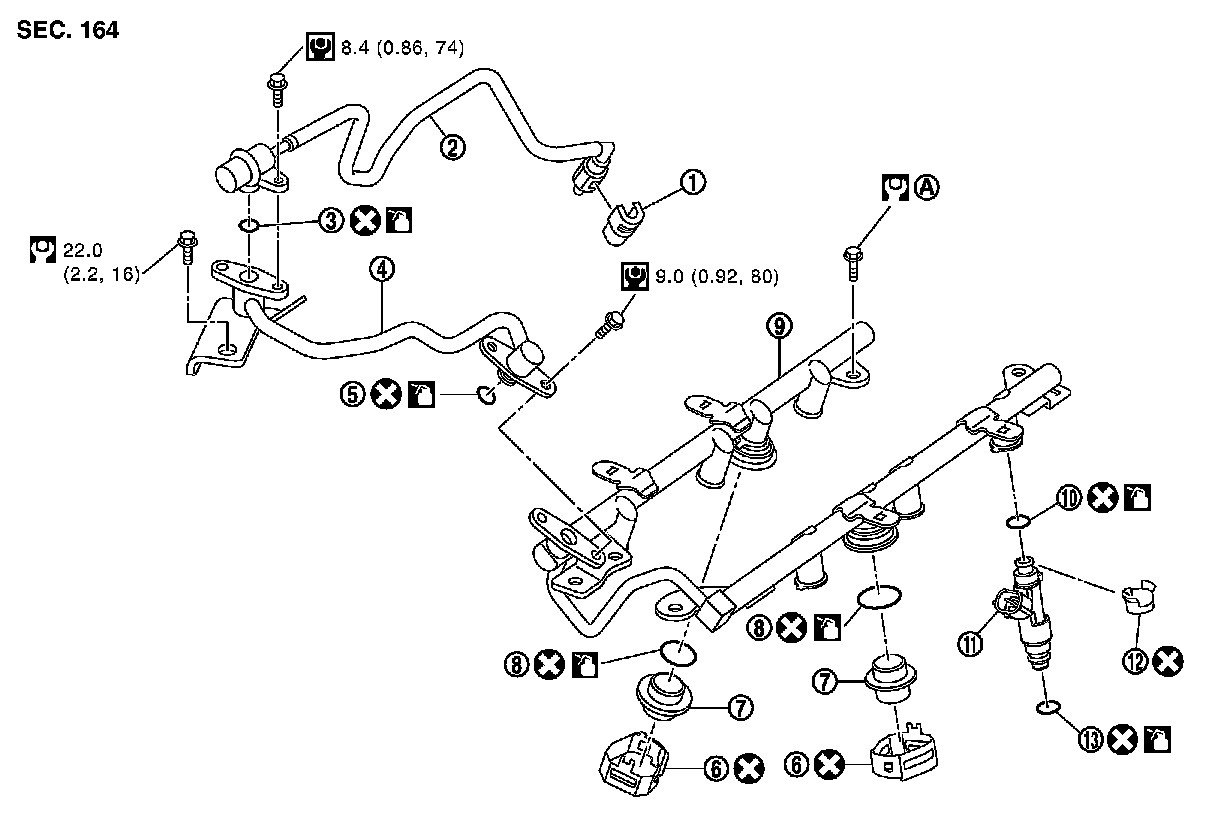

FUEL INJECTOR AND FUEL TUBE

Exploded View

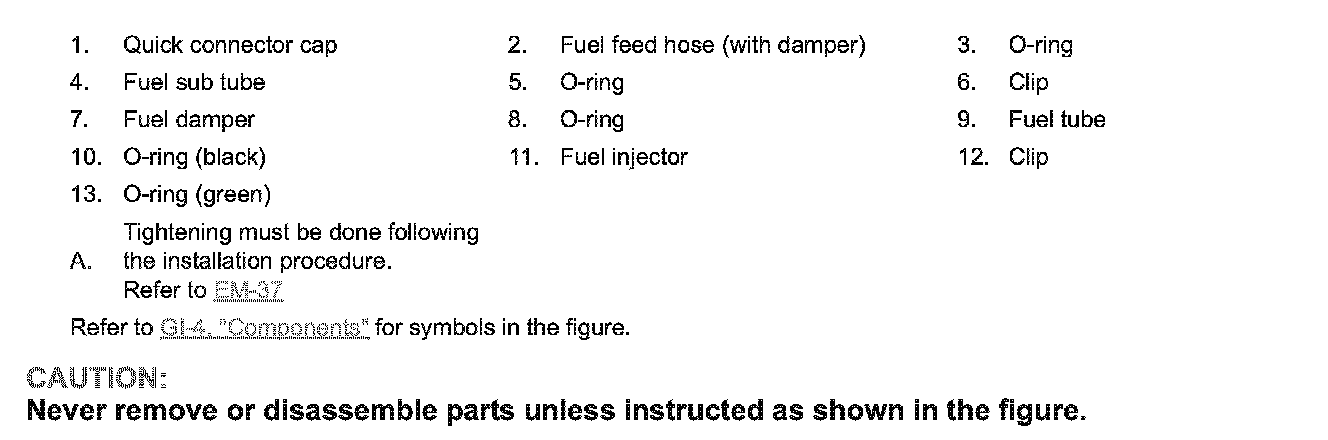

CAUTION:
Never remove or disassemble parts unless instructed as shown in the figure.
